Installation and commissioning guide
1ZSC000563-AAF EN, REV. 4, 2021-06-23
47

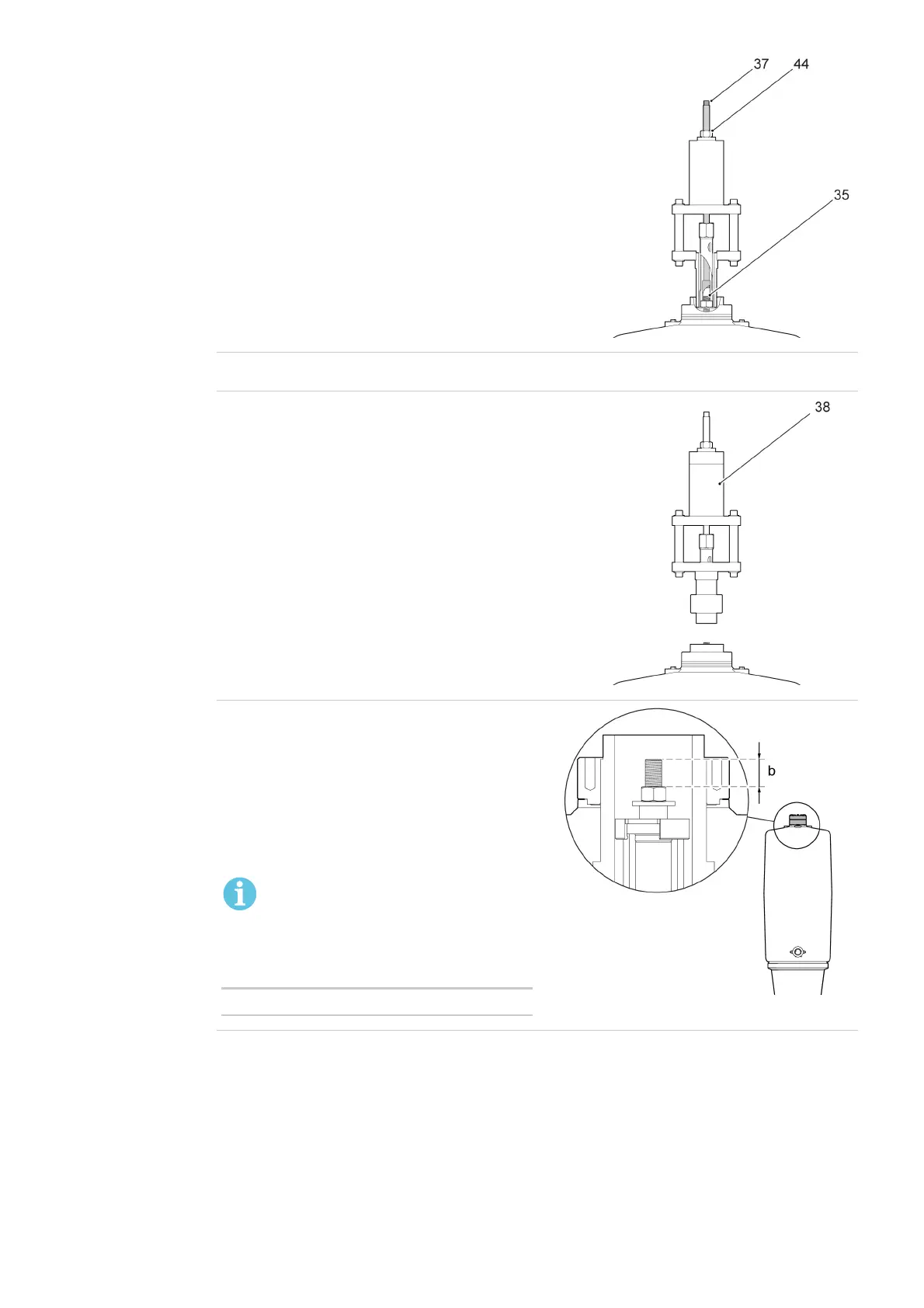

7. Loosen the nut (44).
G005067
8.
Turn the shaft (37) counter clockwise to remove the shaft-socket from the upper draw rod (35).
9.
Remove the hydraulic jack (38) from the bushing.
G005068
10.
Make sure that the draw-rod extension is within
the tolerances:
1. Measure the distance (b).
2. Calculate the extension of the draw rod:
(b) minus (a).
3. Compare the calculated value (b-a) with the
dimension in the table.
NOTE!
Record the values in Measurement
record, page 83, for future reference.
Type Extension
GOE 2600 24.0 mm ±2.0
G006971
