Page 8

The cabinet is configured for either top or bottom cable entry. The following figures show the

default labeling orientation used for top and bottom fed BDFB’s. Load Bus designations (A, B, C, D,

etc.) are stamped on the labels and the VIM1C meter is programmed to reflect the Load Bus

designations.

A label set is provided for customer specified position labeling: 850018546 for G7 and G8,

850044737 for G101 and G102. If the Load Bus designations change, the VIM1C meter must identify

the new location.

Menu▶Load Parameters▶ First Load locates Load Bus A as upper-left, upper-right, lower-left or

lower-right.

Menu▶Load Parameters▶ Number of Loads identifies the number of load shunts in the BDFB.

Panel Positions and Labeling

G7 and G8

G101 and G102

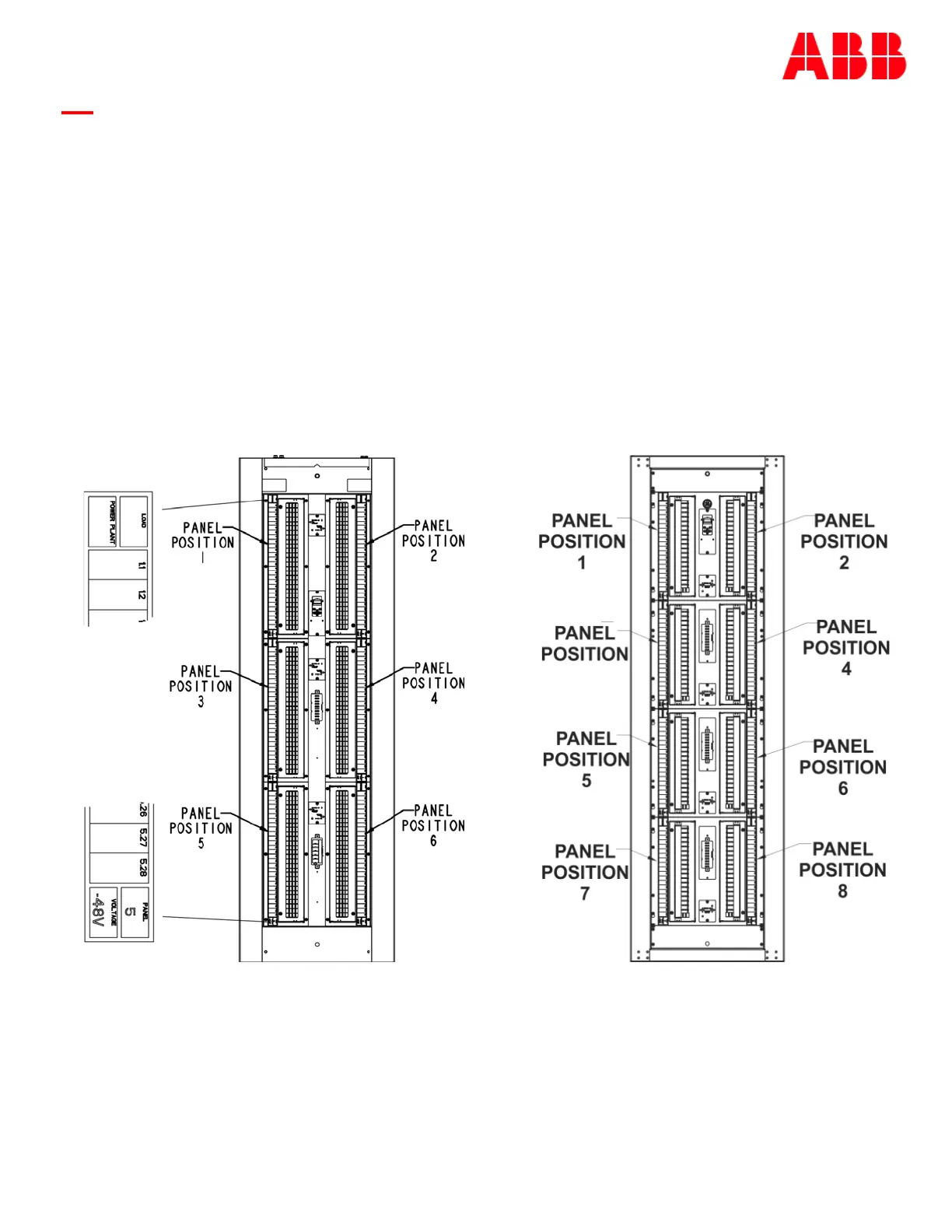

Figure 1 Panel Positions - Top Feed
