ABB HT604133 Original Operation Manual

Operation Manual / 4 Product description / A130-H.. - A140-H
8 Dismantling and fitting / 8.14 Installing the cartridge group
© Copyright 2020 ABB. All rights reserved. HZTL4030_EN Rev.F February 2020
Installing the cartridge group

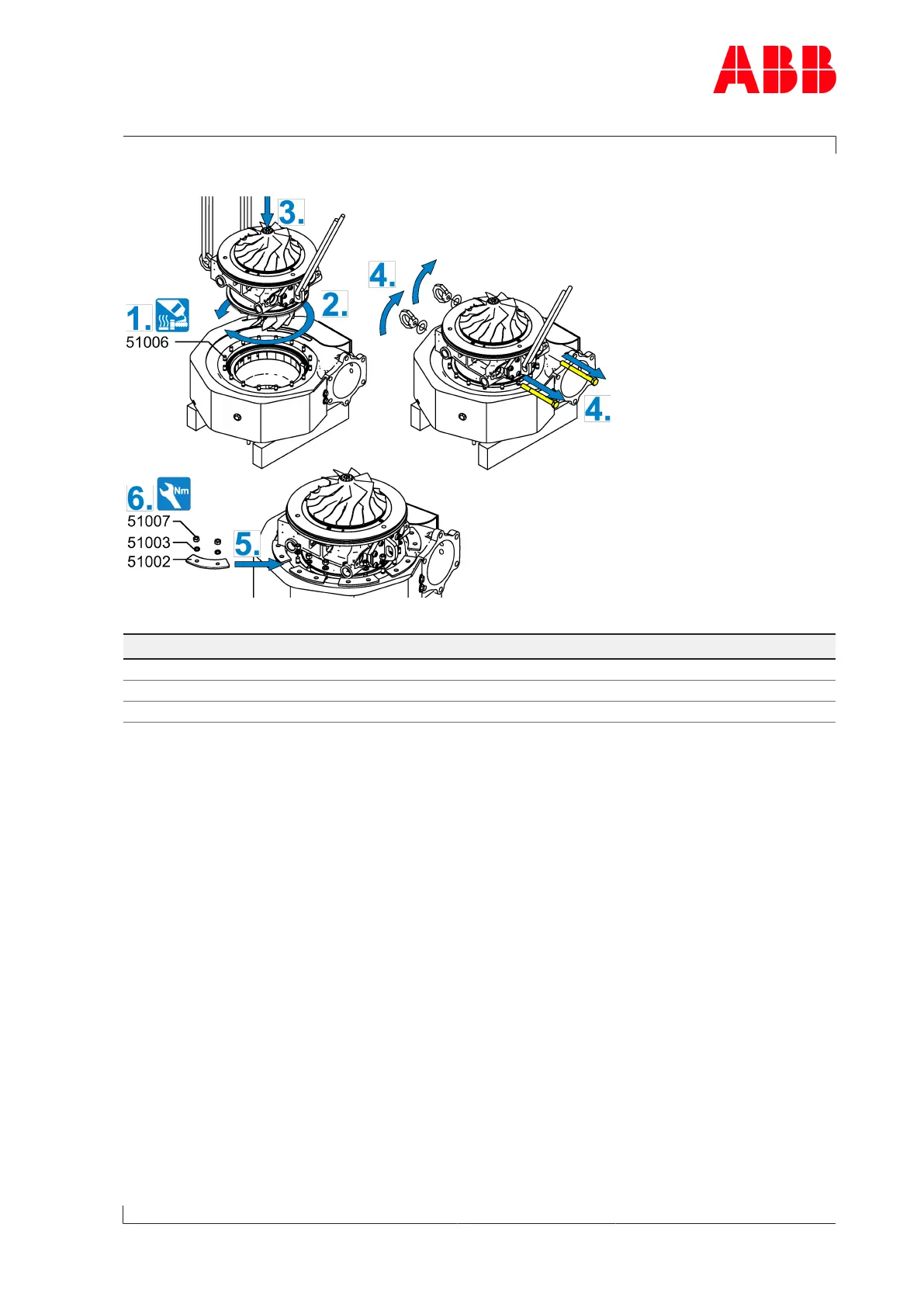

Fig.46: Installing the cartridge group
Product Size Tightening torque [Nm]
A130 M8 25
A135 M10 45
A140 M12 75
Table37: Tightening torque (51007)
1. Coat thread of studs(51006) with high-temperature grease.
2. Align the casing position of the cartridge group to the marking.
3. Lower the cartridge group into the turbine casing.
4. Remove ring nuts and screws.
5. Fit fastening strips(51002) with Verbus Ripp® washers(51003) and hexagon
nuts(51007).
6. Tighten the hexagon nuts(51007).
Page 77 / 93
