ABB HT604133 Original Operation Manual

Operation Manual / 4 Product description / A130-H.. - A140-H
8 Dismantling and fitting / 8.3 Removing the air inlets
© Copyright 2020 ABB. All rights reserved. HZTL4030_EN Rev.F February 2020
8.3 Removing the air inlets
u Mark the casing position for assembly.

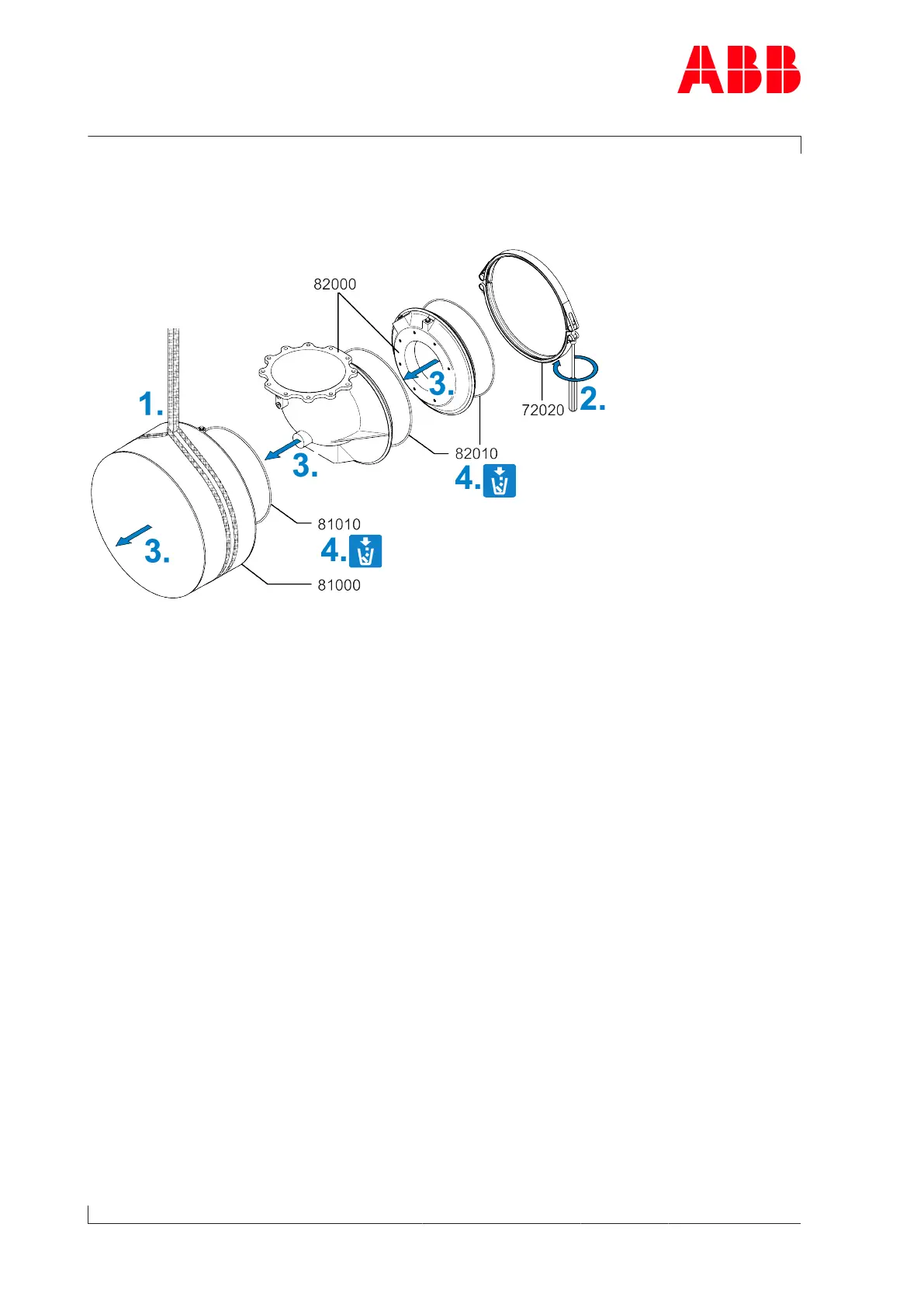

Fig.29: Removing the air inlets
1. Attach lifting gear to the filter silencer(81000) or air suction branch(82000).
2. Loosen and remove V-clamp(72020).
3. Remove filter silencer(81000) or air suction branch(82000), set it down properly in an
appropriate place and secure it.
4. Remove and dispose of the O-ring(81010 / 82010).
Page 62 / 93
