Operation Manual / 4 Product description / A130-H.. - A140-H
8 Dismantling and fitting / 8.15 Installing the compressor casing
© Copyright 2020 ABB. All rights reserved. HZTL4030_EN Rev.F February 2020
Installing the compressor casing

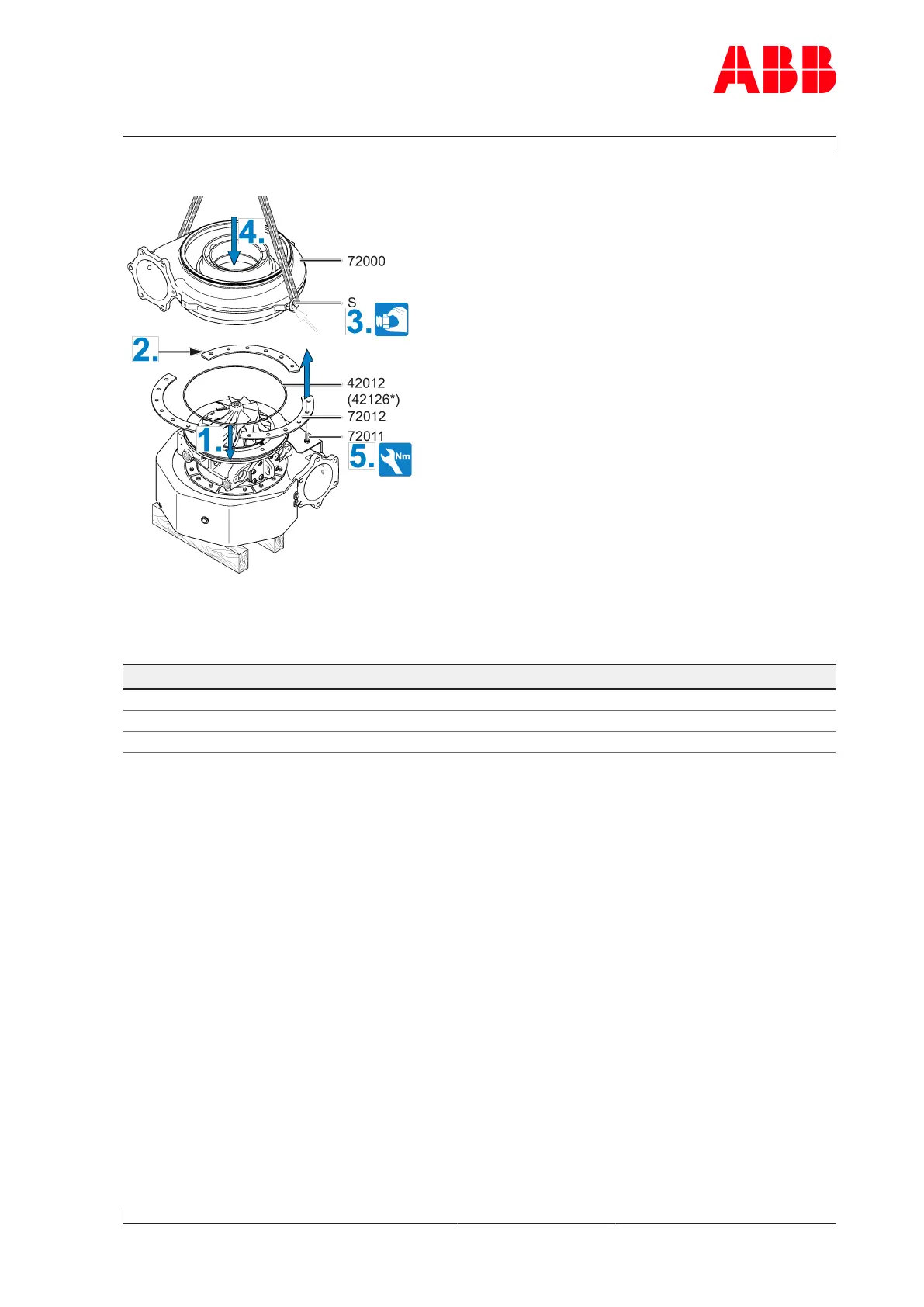

Fig.48: Installing the compressor casing
*) In some installations a special graphite cord sealing (42126) is fitted instead of the O-
ring(42012) (see also chapter Spare parts →89).
Product Size Tightening torque [Nm]
A130 M8 35
A135 M10 70
A140 M12 105
Table39: Tightening torque (72011)
1. Fit a new, high-temperature resisting O-ring(42012, red or green) (see chapter Required
customer spare part set (97070) →89).
2. Thoroughly clean the fastening strips(72012) before assembly.
3. Attach swivel lifting eyes(01) to the compressor casing(72000) and lifting gear.
4. Install the compressor casing(72000).
5. Install the fastening strips(72012) with screws(72011).
Page 79 / 93
