Operation Manual / 4 Product description / A130-H.. - A140-H
8 Dismantling and fitting / 8.15 Installing the compressor casing
© Copyright 2020 ABB. All rights reserved. HZTL4030_EN Rev.F February 2020
8.15 Installing the compressor casing
Fitting the wall insert and the diffuser

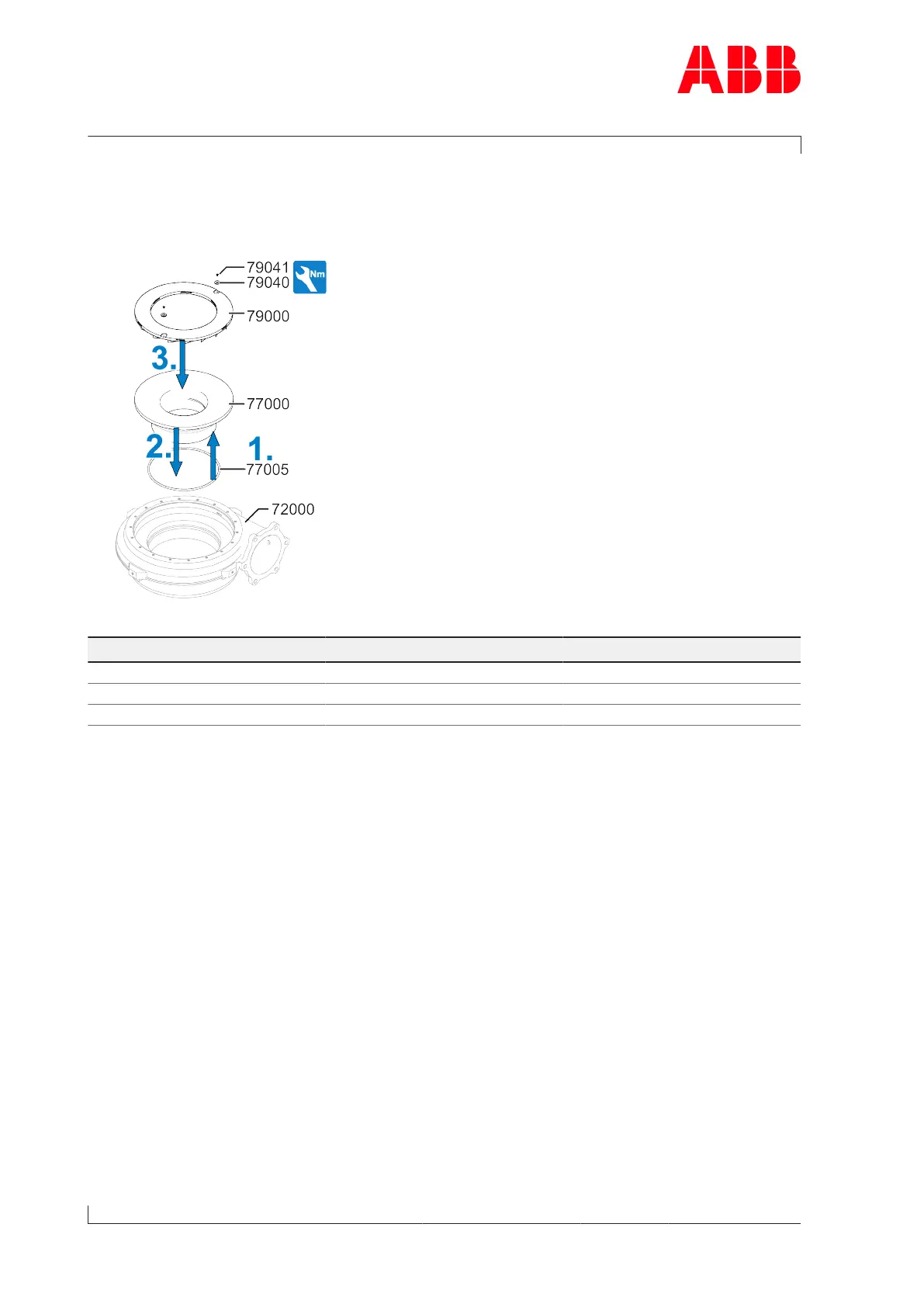

Fig.47: Fitting the wall insert and the diffuser
Product Size Tightening torque [Nm]
A130 M6 8
A135 M6 8
A140 M6 8
Table38: Tightening torque (79041)
1. Always replace the O-ring(77005) (see section Spare parts).
2. Install the wall insert(77000) into the compressor casing.
3. Secure the diffuser(79000) with fixing discs(79040) and screws(79041).
Page 78 / 93
