ABB HT604133 Original Operation Manual

Operation Manual / 4 Product description / A130-H.. - A140-H
4 Monitoring operation / 4.3 Turbocharger speed
© Copyright 2020 ABB. All rights reserved. HZTL4030_EN Rev.F February 2020
4.3.5 Replacing the speed sensor
WARNING
Hot speed sensor
Danger of burns. The speed sensor can reach temperatures of more than
100°C during operation.
u Wear safety gloves when disassembling the speed sensor.
Wear safety gloves to protect against thermal hazards.
The speed sensor supplied by ABB is equipped with a sealing lip and an O-ring. No additional
gasket is required during assembly.

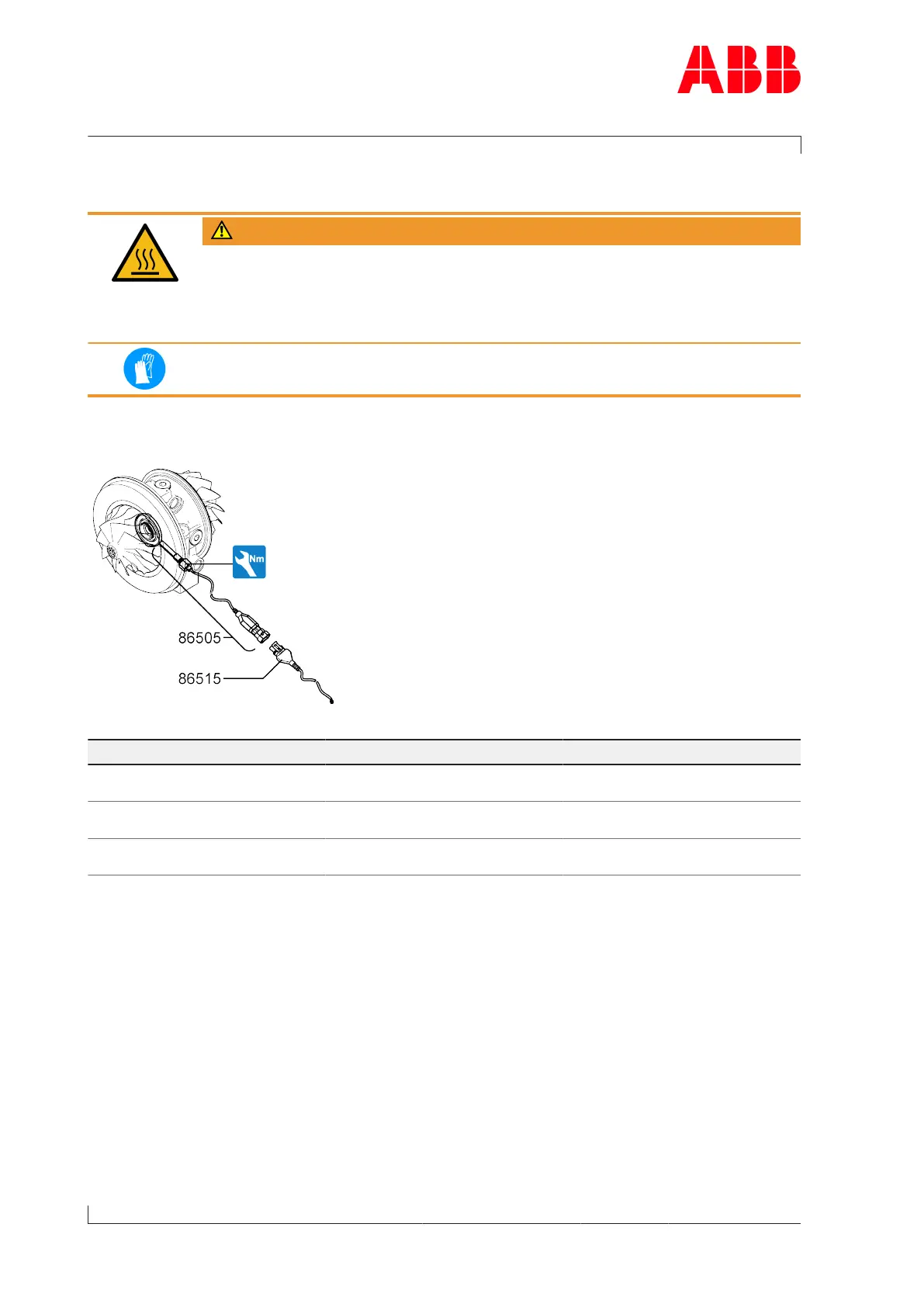

Fig.19: Replacing the speed sensor
Product Part number Tightening torque
A130 86505 M12 x 1.5
15Nm
A135 86505 M12 x 1.5
15Nm
A140 86505 M12 x 1.5
15Nm
Table9: Tightening torque(86505)
u Reduce the engine performance to idling and then stop the engine. Pay attention to post-
lubrication (Stopping the engine →39).
u Switch off the lubricating oil supply to the turbocharger.
u Disconnect cable connector(86515) from speed sensor(86505).
u Unscrew and remove defective speed sensor(86505).
u Screw in new speed sensor(86505) as far as it will go and tighten.
u Connect cable connector(86515) to speed sensor(86505).
u Switch on lubricating oil supply to the turbocharger.
Page 30 / 93
