Operation Manual / 4 Product description / A130-H.. - A140-H
8 Dismantling and fitting / 8.6 Removing the compressor casing
© Copyright 2020 ABB. All rights reserved. HZTL4030_EN Rev.F February 2020
8.6 Removing the compressor casing
Removing the compressor casing
u Mark the casing position for assembly.

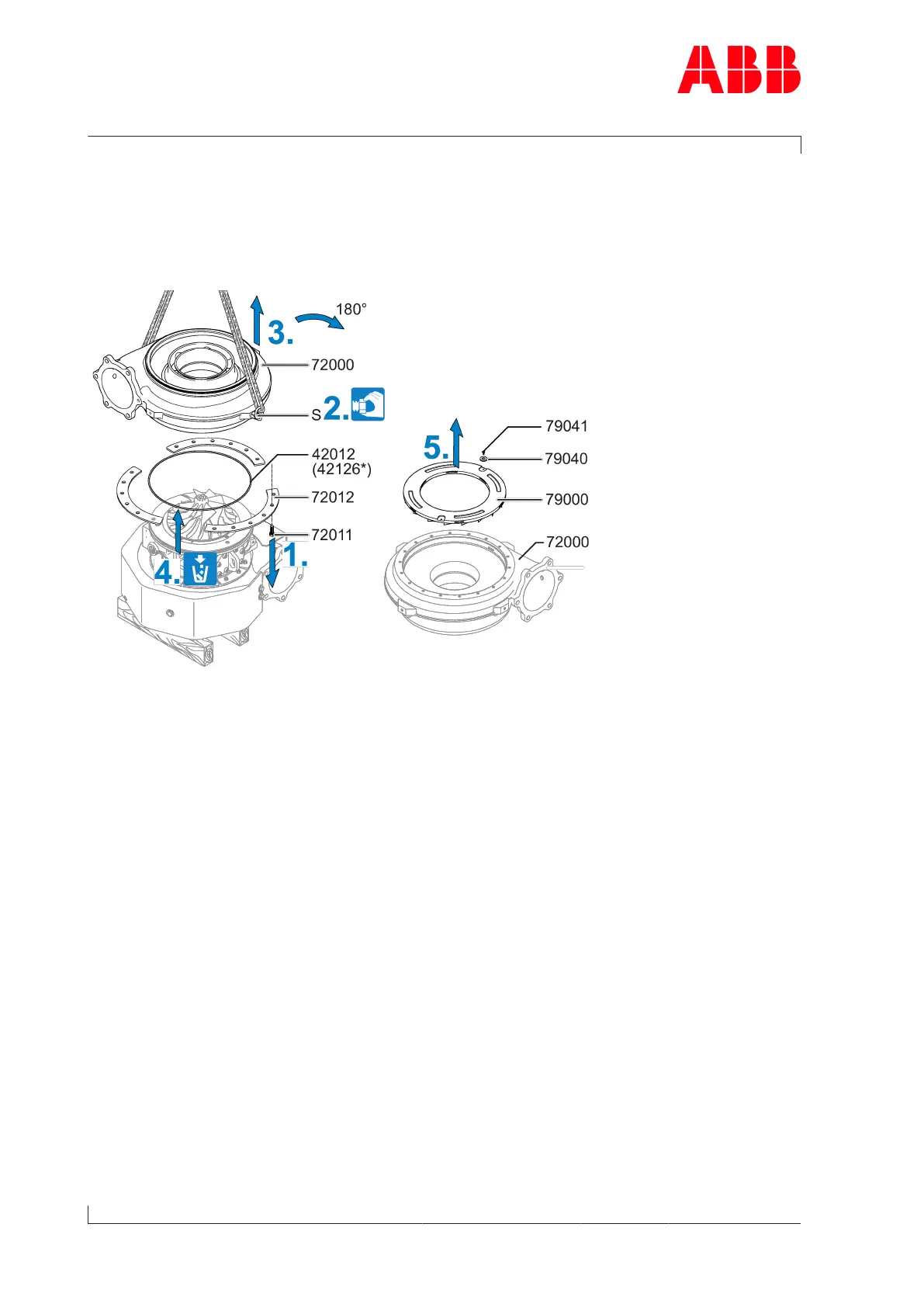

Fig.33: Removing the compressor casing
*) In some installations a special graphite cord sealing (42126) is fitted (see also chapter
Spare parts →89).
1. Loosen screws(72011) and remove together with fastening strips(72012).
2. Attach swivel lifting eye(S) to the compressor casing and the lifting gear.
3. Remove the compressor casing(72000) and turn it 180°.
4. Remove and dispose of the O-ring(42012) or graphite cord sealing(42126).
5. Loosen screws(79041) and remove from the compressor casing(72000) with fixing
discs(79040) and diffuser(79000).
If the compressor casing cannot be loosened, it can be pressed off against the turbine cas-
ing using the press-off tool(90042) (see chapter Pressing off the casing →68).
Page 66 / 93
