ABB HT604133 Original Operation Manual

Operation Manual / 4 Product description / A130-H.. - A140-H
8 Dismantling and fitting / 8.2 Weights of individual parts
© Copyright 2020 ABB. All rights reserved. HZTL4030_EN Rev.F February 2020

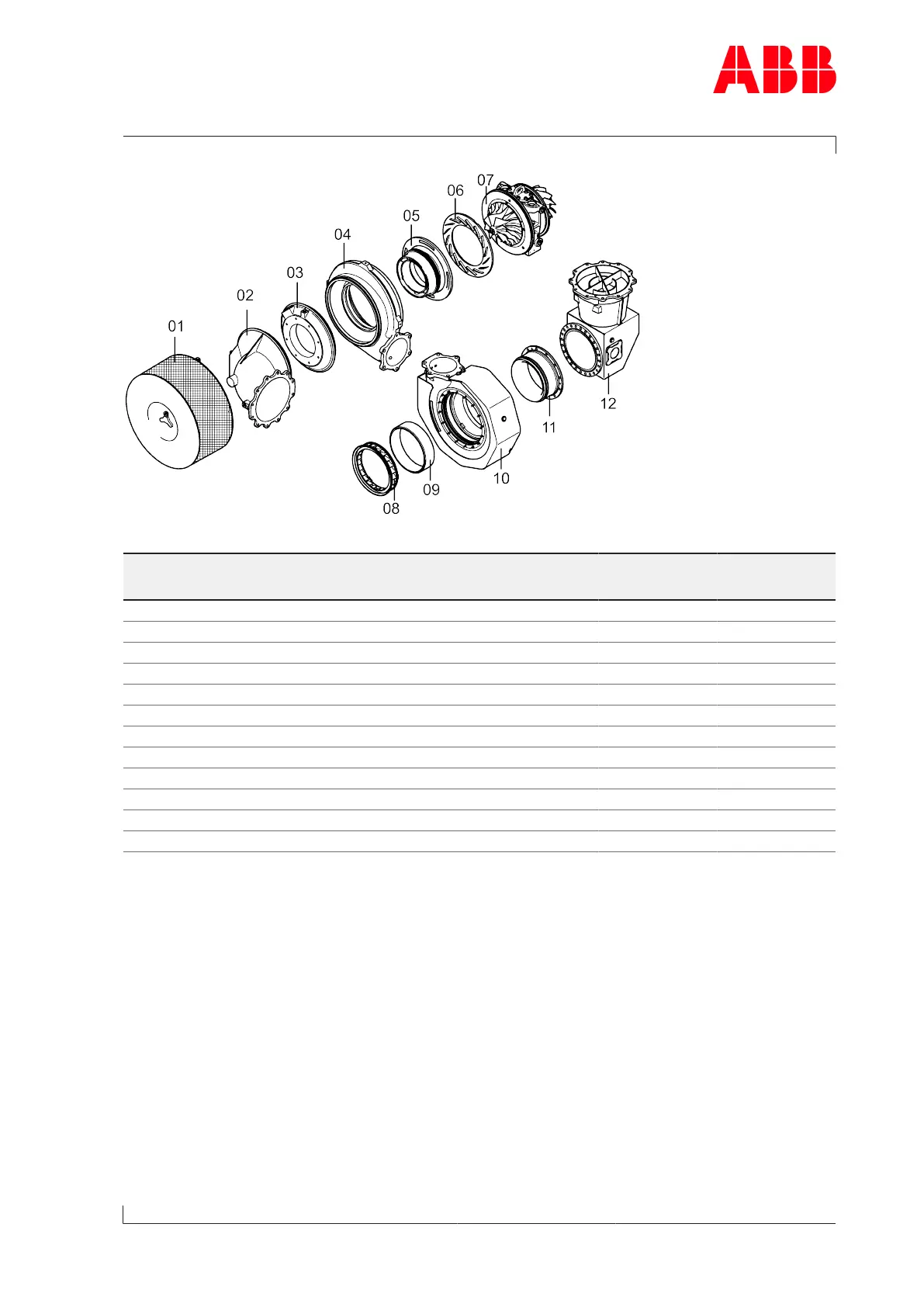

Fig.28: Weights of assemblies
Designation A130
[kg]
A135
[kg]
A140
[kg]
01 Filter silencer 19 30 40
02 Radial air suction branch 6 8 13
03 Axial air suction branch 4 5 6
04 Compressor casing 24 40 60
05 Wall insert 6 8 15
06 Diffuser 3 4 7
07 Cartridge group 40 60 110
08 Nozzle ring 2 2 4
09 Burst ring 2 3 5
10 Turbine casing * 45 65 120
11 Gas outlet flange 7 13 20
12 Gas outlet casing * 30 35 65
Table31: Weights of assemblies
* including burst protection
Page 61 / 93
