Operation Manual / 4 Product description / A130-H.. - A140-H
1 Introduction / 1.6 Locations of the rating plates
© Copyright 2020 ABB. All rights reserved.
HZTL4030_EN
Rev.F
February 2020
1.6
Locations of the rating plates

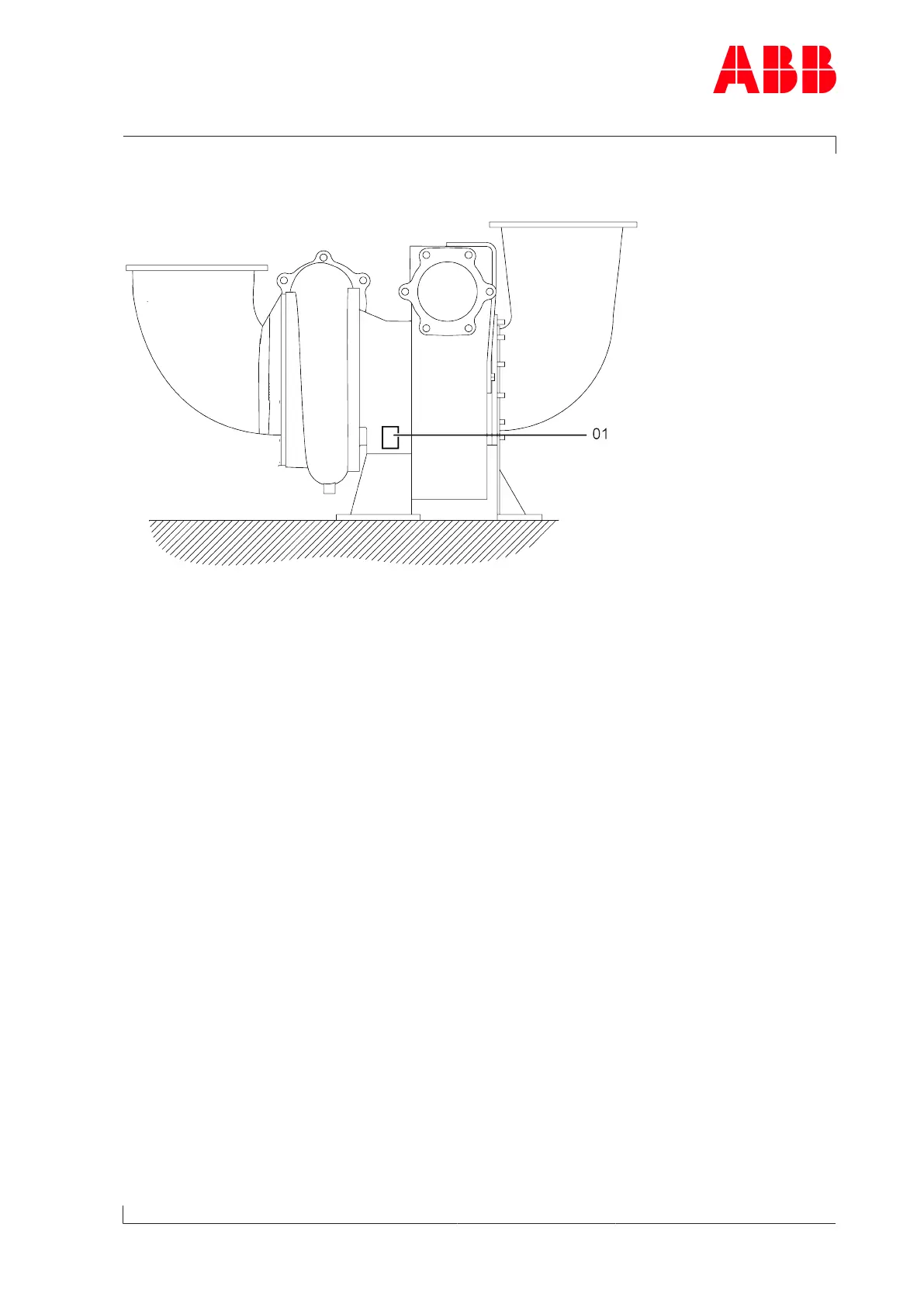

Fig.4: Locations of the rating plates
One rating plate (01) each is attached on the left and the right side of the turbocharger bear-
ing casing.
Page 7 / 93
