ABB IMASI13 - NTAI06 Cable Connection; Millivolt and RTD Special Shorting Jumper

Configuring Inputs
WBPEEUI240766B0 A - 9

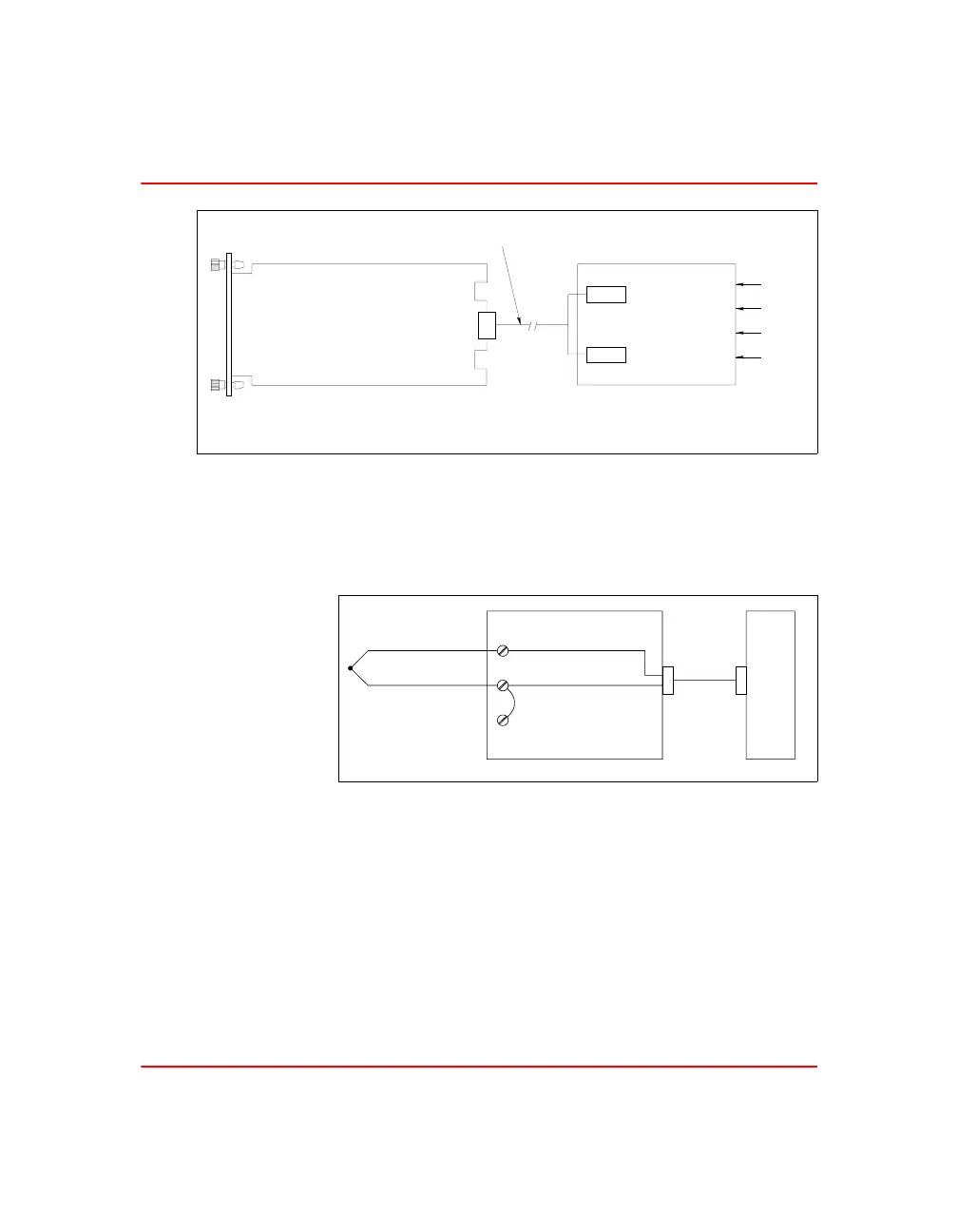

Figure A-7 shows the jumper connection when using an
IMASI13 module with firmware B.0 or higher and four pin
jumper blocks (J1 - J16). This special connection is required
for the millivolt and RTD input.
Figure A-6. NTAI06 Cable Connection
T01066A
P1
P3
J3
P2
J2
P1
J1
P2
NKAS01/11
(NOTE 1)
TERMINATION UNIT
CABLE
NTAI06
CHANNELS 11-16
CHANNELS 1-10
IM AS I13
FIELD
WIRING
NOTE:
1. NKAS01 HAS PVC INSULATION (SPECIFY LENGTH UP TO 200 FT).
NKAS11 HAS NON-PVC INSULATION (SPECIFY LENGTH UP TO 200 FT).
Figure A-7. Millivolt and RTD Special Shorting Jumper
NKAS01/11
CABLE
C
–
+
NTAI06 TERMINATION UNIT IMASI13
T04354A
