4 Unpacking
Identification
The transmitter is identified by the name plates. A The
nameplate provides information (see figure 4) concerning the
model number, probe length, sensor material, process
connection type, process connection material, maximum
pressure ratings, power supply, output signal, serial number,
maximum processed temperature limits and Maximum ambient
temperature limits. B The certification plate contains the
certification-related parameters for use in a hazardous area.

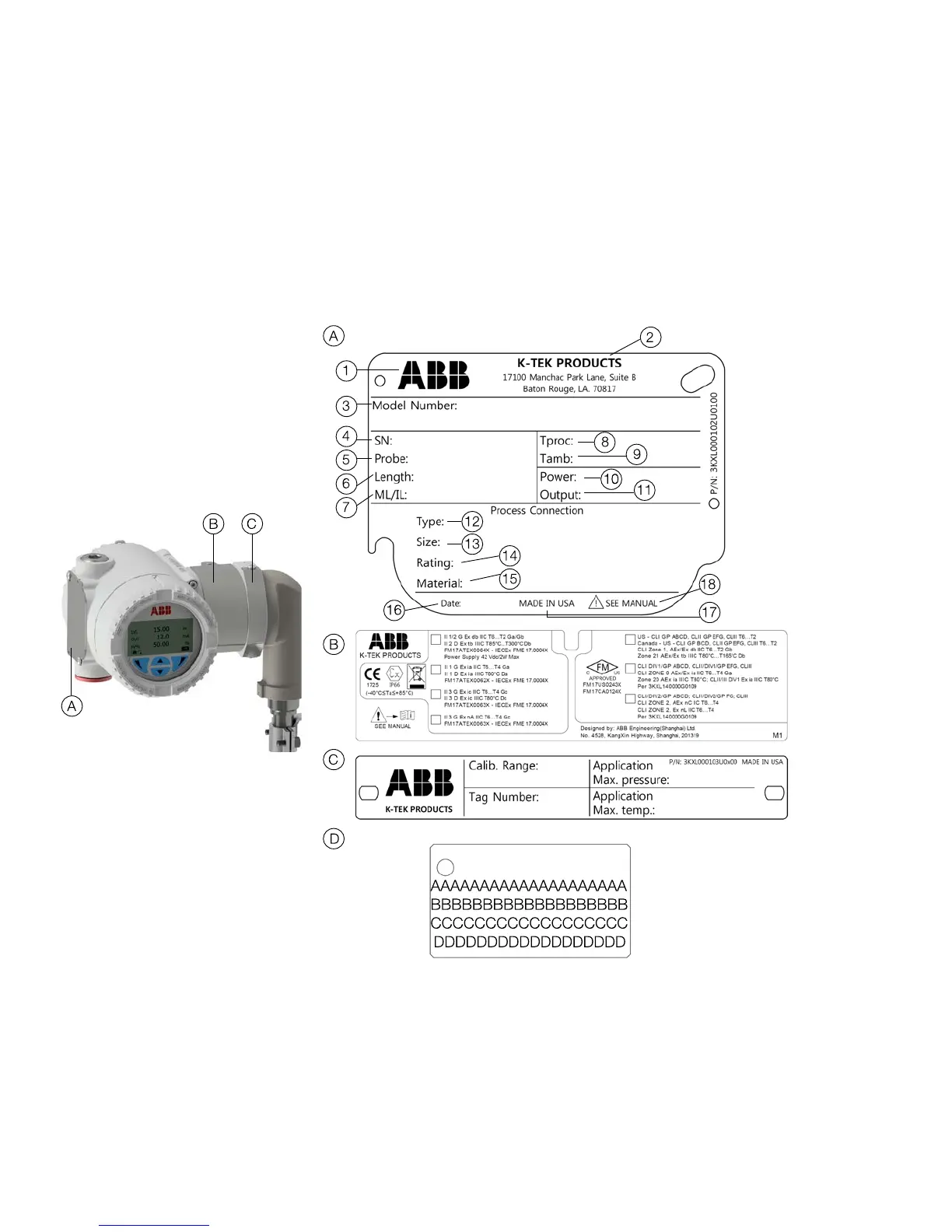

Figure 4 Identification Plates
Please refer to the serial number when speaking to ABB service
department personnel.
IMPORTANT (NOTE)
The name plates shown here are only examples. The name
plates attached to the device may be different to what you see
below.
A Name plate - 1. Manufactuing Logo 2. Manufacturing Address 3. Model
Number 4. Serial Number 5. Probe Material 6. Probe Length 7. ML =
Measurement length (LMT200) / IL = Insertion Length (LMT100) 8.
Limits of Measuring Process Temperature 9. Ambient Temperature
Range 10. Power Supply 11. Current Output 12. Process Connection
Type 13. Process Connection Size 14. Pressure Rating or maximum
allowable pressure 15. Process Connection Material 16. Date of
Production in yyyy/mm format 17. Country of Manufacture 18. Symbol:
Read Instructions Before Use
B Specific data plate with Ex marking
C Tag plate
D Tag plate with customer specific data
IMPORTANT (NOTE)
All documentation, declarations of conformity, and certificates
are available in ABB’s download area. www.abb.com/level
