M4M 20 NETWORK ANALYZER USER MANUAL
23

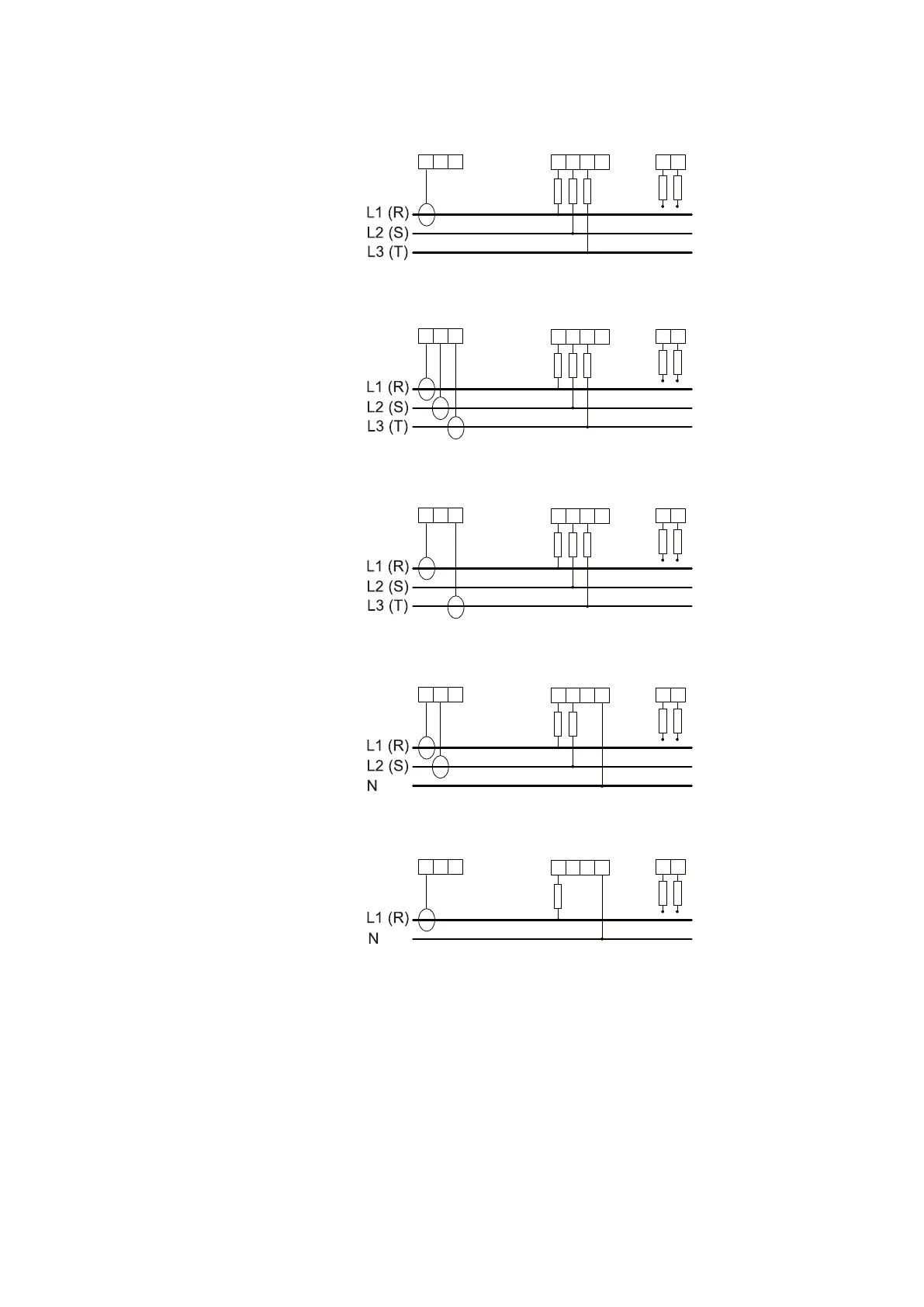

• 3-phase 3-wire network with 1RogCT
IR1 IR2 IR3 L1 L2 L3 N AUX
• 3-phase 3-wire network with 3RogCTs
IR1 IR2 IR3 L1 L2 L3 N AUX
• 3-phase 3-wire network with 2RogCTs
IR1 IR2 IR3 L1 L2 L3 N AUX
• 2-phase 3-wire network with 2RogCTs
IR1 IR2 IR3 L1 L2 L3 N AUX
• 1-phase 2-wire network with 1RogCT
IR1 IR2 IR3 L1 L2 L3 N AUX
