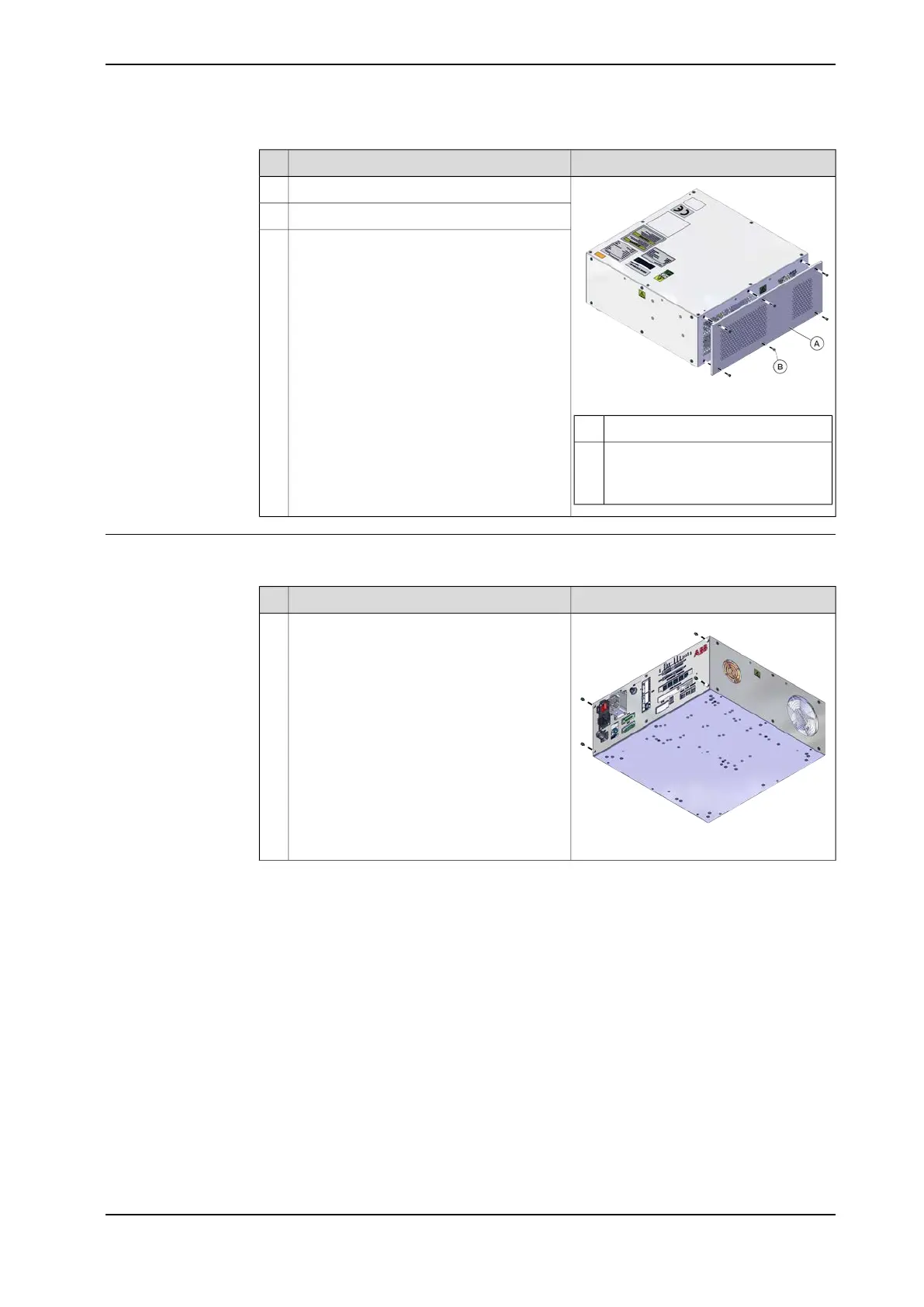

Info/illustrationAction
xx2400000688
Side cover unitA
Torx counterink screw M4x10 (6
pcs)
Tightening torque: 1.7-1.8 Nm
B
Remove the screws.7
Remove the side cover unit.8
Refit the screws.9
Installing the 19" rack mounting kit
Use this procedure to install the controller in a 19" cabinet.
InformationAction
xx2400000090
Remove the screws on the front panel.1
Continues on next page
Product manual - OmniCore C30 Type A 71
3HAC089064-001 Revision: A
