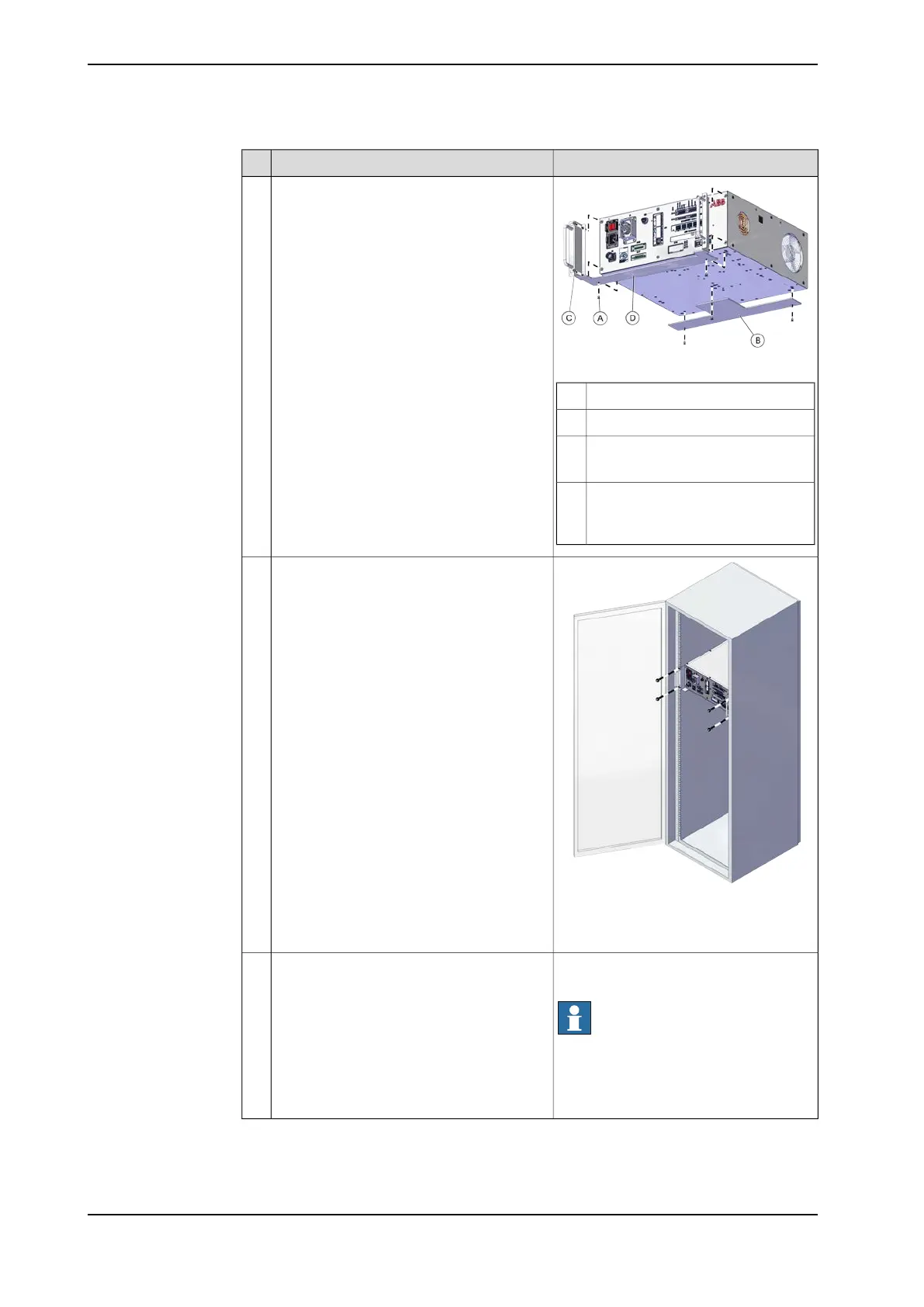

InformationAction
xx2400000686
Front mounting kitA
Back mounting kitB
Torx pan head screw M4x12 (4 pcs)
Tightening torque: 1.7-1.8 Nm
C
Torx countersunk screw M4x10 (5
pcs)
Tightening torque: 1.7-1.8 Nm
D
Assemble the front and the back mounting
kit.
2
xx2400000085
Place the controller into the 19" cabinet and
fasten it with the screws.
3
Torx pan head screw M6x16 (4 pcs)
Tightening torque: 1.7-1.8 Nm
The antenna is preferably placed on top
of the cabinet.
Note
For best performance in a closed cabinet,
use the option Connected Services
Gateway wired (DSQC1041) with external
Internet gateway.
Connect the antenna for Connected Services
Gateway (3G or WiFi).
4
