Safety lock for power inlet switch

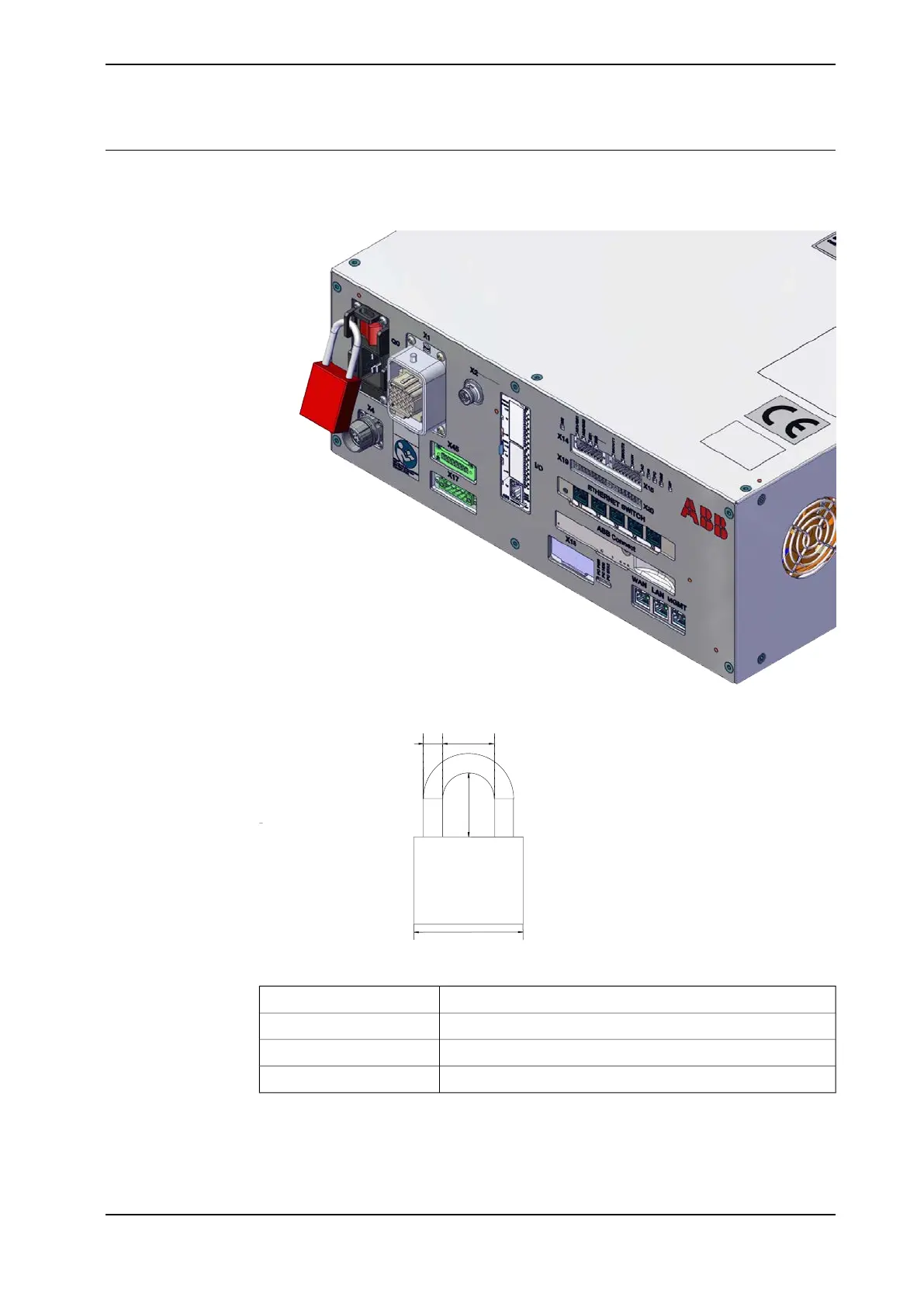

The following illustration shows the location of the safety lock for the power inlet
switch.
xx2400000092
A C
Width
B
xx2400000160
1-1/2" (38 mm) or ≥ 38 mmWidth
1/4" (6 mm)Shackle Diameter (A)
1-1/2" (38 mm)Shackle Length (B)
25/32" (20 mm)Shackle Width (C)
