ABB PFTL 101 User Manual

Connector or fixed connection cable

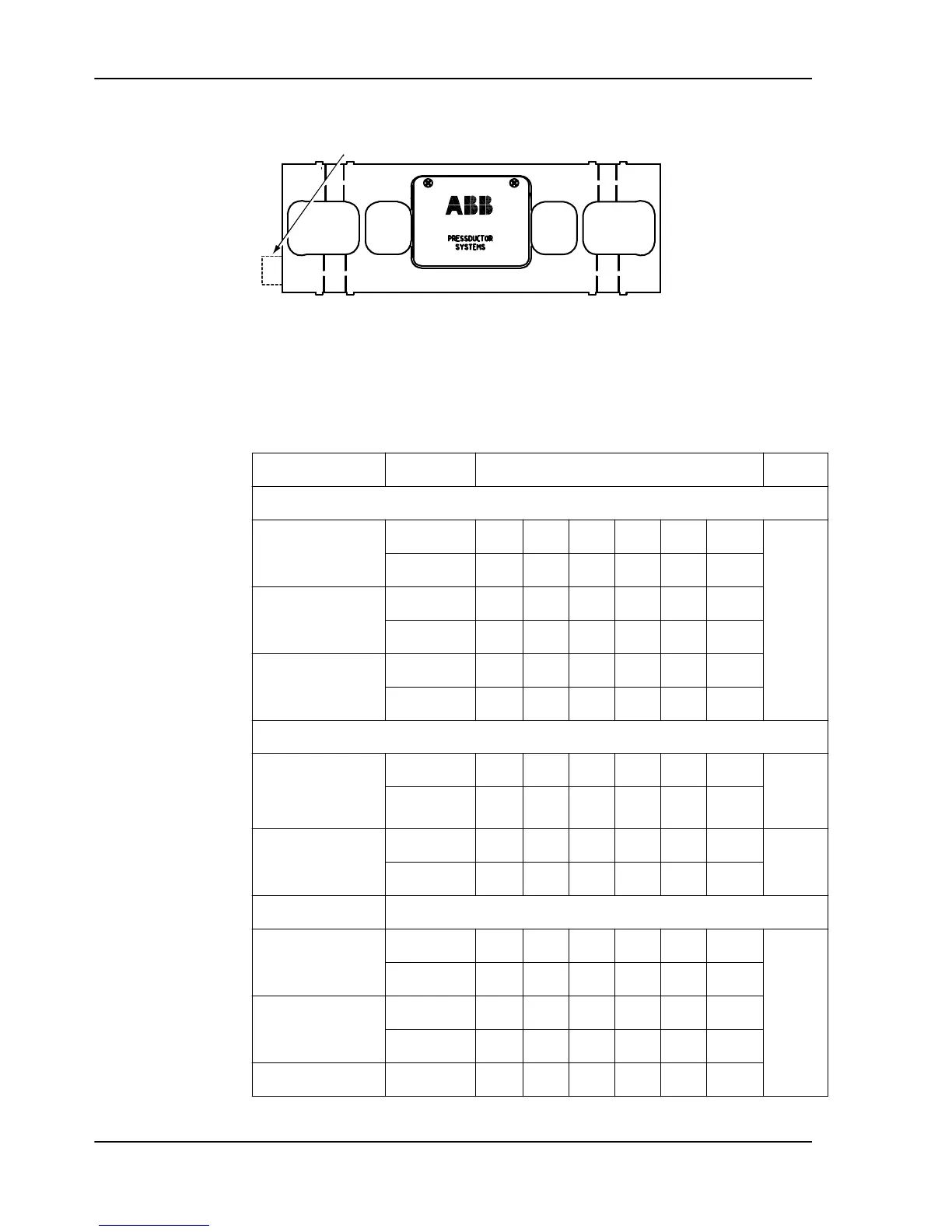

Figure 4. Load cells PFTL 101 B/BE/BER
2.2 Technical Data
Table 1 Technical Data Load Cell PFTL 101
PFTL 101 Type Data Unit
Nominal Loads
1)
Nominal load in meas-
uring direction, F
nom
A/AE/AER 0,5 1,0 2,0 kN
B/BE/BER 2,0 5,0 10 20
Permitted transverse
force within the accu-
racy, F
Vnom
A/AE/AER 5 10 10
B/BE/BER 30 30 30 40
Permitted axial load
within the accuracy,
F
Anom
A/AE/AER 2 5 5
B/BE/BER 5 10 10 10
Overload capacity
Max. load in measure-
ment direction without
permanent change of
data, F
max
A/AE/AER 2,5 5 10 kN
B/BE/BER 10 25 50 80
Spring constant A/AE/AER 32 65 130 kN/mm
B/BE/BER 130 325 650 1300
Mechanical data
Length A/AE/AER 230 230 230 mm
B/BE/BER 360 360 360 360
Width A/AE/AER 84 84 84
B/BE/BER 104 104 104 104
Height A/AE/AER 125 125 125
Pressductor PillowBlock Load Cells, Horizontal Measuring PFTL 101, User Manual
2 Description
10 3BSE009965R0401 en Rev E
