ABB PFTL 101 User Manual

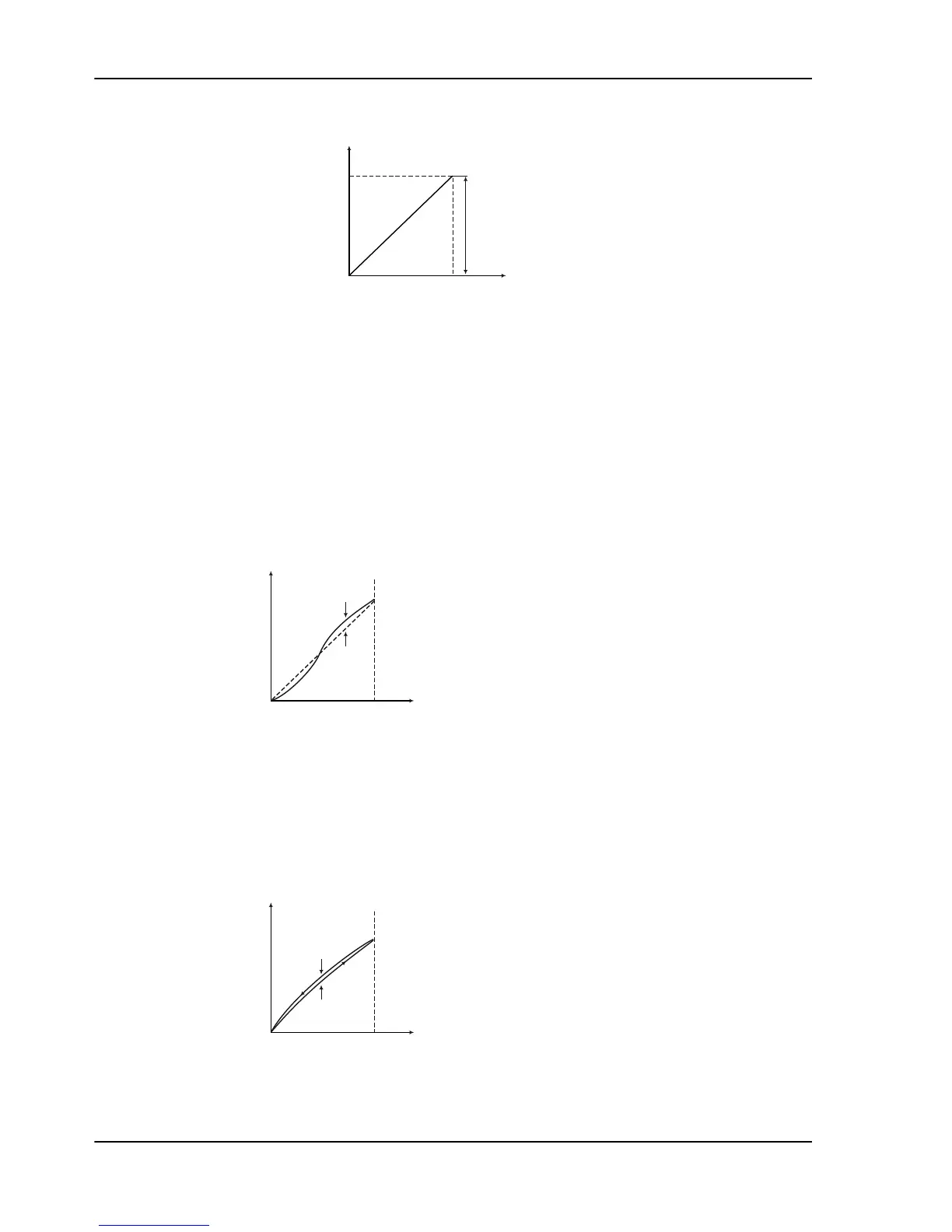

Signal
Rated output value
at nominal load
Force
Sensitivity
F
nom
Figure 5. Sensitivity
Accuracy and Accuracy Class
Accuracy class is dened as the maximum deviation, and is expressed as a percentage of the sen-
sitivity at nominal load. This includes linearity deviation, hysteresis and repeatability error.
Linearity Deviation
Linearity deviation is the maximum deviation from a straight line drawn between the output values
at zero load and nominal load. Linearity deviation is related to the sensitivity.
Signal
Force
F
nom
Figure 6. Linearity Deviation
Hysteresis
Hysteresis is the maximum difference in the output signal at the same load during a cycle from zero
load to nominal load and back to zero load, related to the sensitivity at nominal load. The hysteresis
of a Pressductor transducer is proportional to the load cycle.
Signal
Force
F
nom
Figure 7. Hysteresis
Pressductor PillowBlock Load Cells, Horizontal Measuring PFTL 101, User Manual
2 Description
12 3BSE009965R0401 en Rev E
