8 PGS100 AND PAS100 | PRESSURE TRANSMITTERS | OI/PGS/PAS100-EN REV. A
3 Opening the box

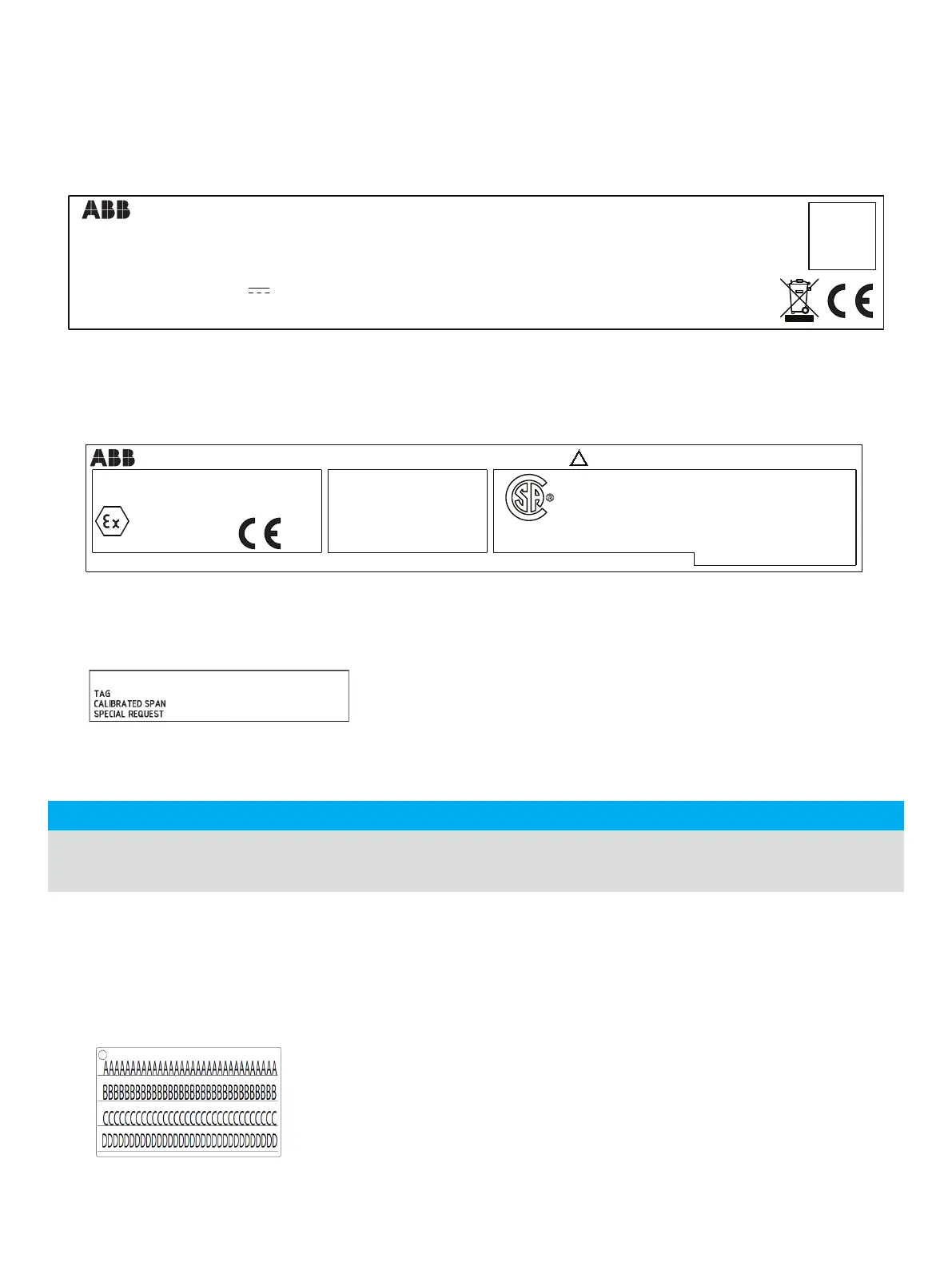

Identification plates
The instrument is identified by the plates shown below.
Figure 2 - Nameplate for pressure transmitter model PGSxxx/PASxxx
The plate in figure 2 provides detailed information associated with the transmitter, concerning the model code, date of production,
hardware and software revisions, process wetted materials, power supply range, output signal, maximum working temperature
(TS) and pressure (PS), IP rating, PED identification code, range and span limits, calibration range and special request number (if
applicable) in another section.
Figure 3 - Additional Ex plate for devices intended for use in explosion risk areas
The certification plate in figure 3 provides details relevant to the hazardous area application of the transmitter, including as
applicable the markings and the relevant certificates, in association with the transmitter serial number and clear remarks to refer
to specific concerned documentation.
Figure 4 - Tag plate for pressure transmitter model PGSxxx/PASxxx
The tag plate in figure 4 is dedicated for detailing the tag number, the calibrated span as upper and lower range values with
associated engineering unit and the special request number, as applicable, if specified.
For information on the individual letters/numbers that make up the order code, please refer to the order confirmation or
associated data sheet. For information about labeling in accordance with the Pressure Equipment Directive, please
observe the information in “Compliance with Pressure Equipment Directive”.
The instrument may be used as a pressure accessory (category III) as defined by the Pressure Equipment Directive 2014/68/EU.
In this case you will find the number of the notified body (0474) that have verified the compliance. PGS and PAS pressure
transmitters are in compliance with EMC 2014/30/EU.
The certification plate is issued by ABB S.p.A, 22016 Tremezzina, Italy, with the numbers:
• Sira19ATEX2260X or IECEx SIR 19.0081X
CE-Identification number of the notified bodies to Pressure Equipment Directive: 0474, to ATEX certification: 0722, to IECEx
certification: IT/CES/QAR07.0001.
Figure 5 - 4-line layout of the optional wired-on Stainless Steel plate
QR Code
Serial Number : 3KXPxxxxxxxxxx
Model : PXS100 xxxxxxxxxxxxxxxx YYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYY
Production Date : WW/YYYY
Process Connection : XXXXXXXX Pro. Conn. Material : XXXXXX Diaph. mat/Fill : xxxxxxx/ YYYYYYY
Supply Voltage xx...yy Vdc
LRL/URL -XXXXX ... +YYYYYY kPa Span limit XXXXX kPa
TS XXX °C PS XXX bar
Hw Rev. XX.YY.KK Sw Rev. XX.YY.KK
Output Signal 4...20 mA HART
IP xx Type 4X PED : XXXX
ABB S.p.A. Tremezzina (Co) Italy
Seal Model : xxxxxxxxxxxxxxxxx Seal Diaph/Fill : xxxxxxxxxxxxxx/ yyyyyyyyyyy
ABB S.p.A. Tremezzina (Co) Italy
Install per control drawing DH3275
II 1 G Ex ia IIC T4 Ga
II 1/2 D Ex ia IIIC T135°C Da/Db
Sira 19ATEX2260X
Serial Number : 3KXPxxxxxxxxxx
For entites see the certicate
Ex ia IIC T4 Ga
Ex ia IIIC T135°C Da/Db
IECEx SIR 19.0081X
II 1/2 D Ex ta/tb IIIC T135°C Da/Db
Ex ta/tb IIIC T135°C Da/Db
(-40°C<Tamb<+75°C or to +85°C See Manual)
Use only cable and cable gland with Temp rating > 85°C
Utilisez uniquement cables et conduit avec le Temp nom > 85°C
0474
0722
US C
!
IS/Sec Intrinseque (Entity)
CL I, Div 1, Gr ABCD T4 - CL II, Div 1, Gr E,F,G 120°C
CL III, DIV1
CSA20CA70192804X
CL I, Zone 0, AEx ia IIC T4 Ga / Ex ia IIC T4 Ga
Zone 20/21 AEx ia IIIC T135°C Da/Db / Ex ia IIIC T135 °C Da/Db
Zone 20/21 AEx ta/tb IIIC T135°C Da/Db
Ex ta/tb IIIC T135°C Da/Db
NOTICE
Optional wired-on plate
Models PGS and PAS transmitter can be supplied with the optional
“Wired On Stainless Steel plate” (figure 5) which is permanently
laser printed with a custom text specified in phase of order. The
available space consists in 4 lines with 32 characters per line.
The plate will be connected to the transmitter with a Stainless
Steel wire.
