10 2TLC172001M0211_A
Inputs and outputs for Pluto B42 AS-i
Terminal on Pluto In-/Output name in software I/O type Local/Global
I0…I3 I_.0…I_.3 Safe Input Global
I30…I37 I_.30…I_.37 Safe Input Local
I40…I47 I_.40…I_.47 Safe Input Local
Q0 Q_.0 Safe Output (Relay) Local
Q1 Q_.1 Safe Output (Relay) Local
Q2 Q_.2 Safe Output (Transistor) Local
Q3 Q_.3 Safe Output (Transistor) Local
Q4 Q_.4 Safe Output (Relay) Local
Q5 Q_.5 Safe Output (Relay) Local
IQ10…IQ17 I_.10…I_.17 Safe Input Local
Q_.10…Q_.17 Nonsafe Output Local
IQ20…IQ27 I_.20…I_.27 Safe Input Local
Q_.20…Q_.27 Nonsafe Output Local
ASi+ - AS-i bus -
ASi-
where “_” is the Pluto number
IQ25IQ24IQ23IQ22 IQ27IQ26
B
A
A
Q1
B
A
Q4
B
Q5
A B
Q3
B
A
0V
0V
ID
CH
CL
AI AI AI
SR46SR45SR41
4L
1L
0L
Failsafe inputs / Outputs (not failsafe) / Dynamic outputs
Power
Identifier IDFIX
Inputs, individual failsafe
Pluto bus
Inputs, individual failsafe
Safety outputs
Digital/Analogue
Inputs, individual failsafe
supply
CS
AS-Interface
(Shield)
I35 I36
Q2
A
I37
Pluto B42 AS-i
I45I40 I41 I42 I43 I44 I46 I47ASi+ ASi- I2I1I0 I3
IQ21IQ20IQ10 IQ11
+24V
IQ12 IQ13 IQ15IQ14 IQ16
I30
B
Q0
IQ17
I31 I32 I33 I34

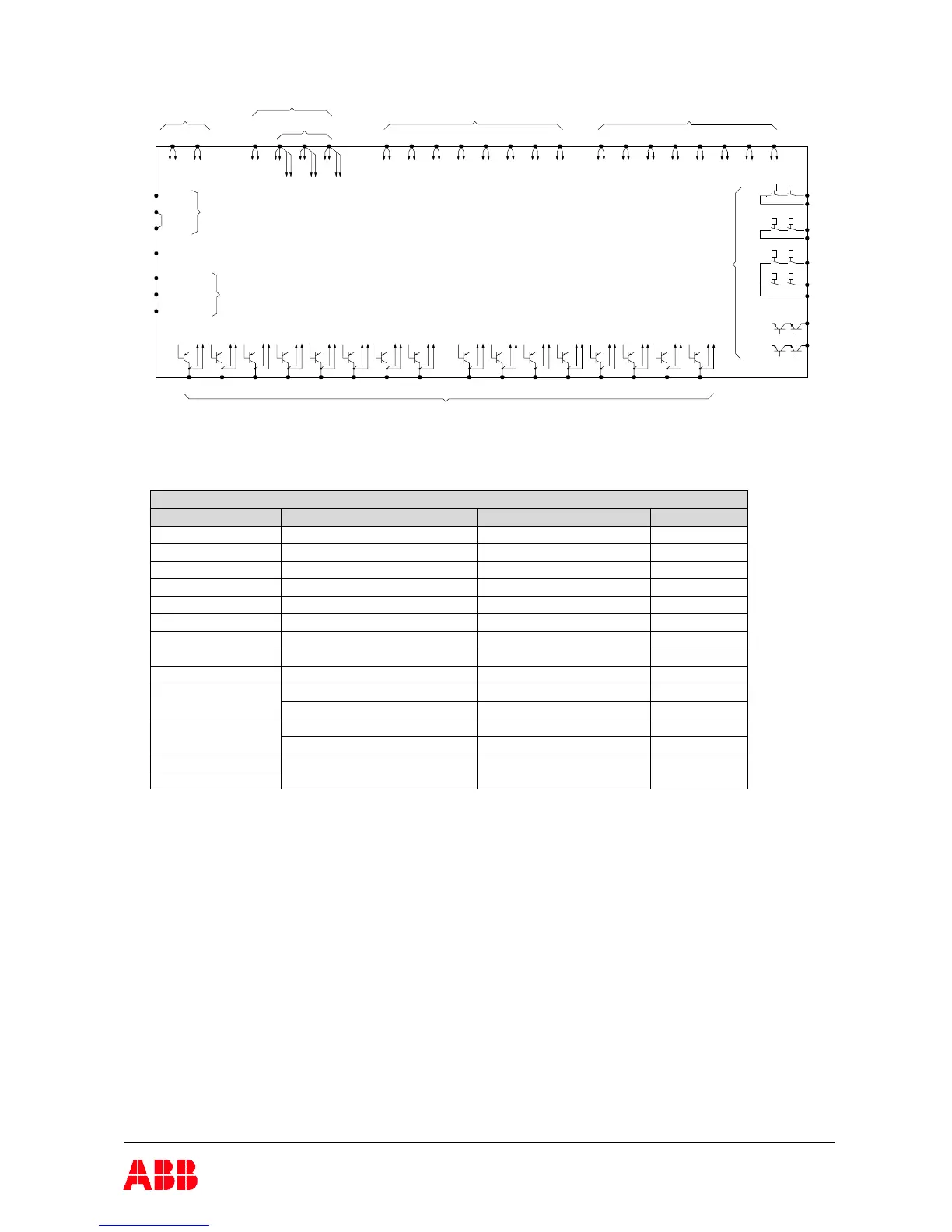

I/O overview PLUTO B42 AS-i
