Free inlet or outlet

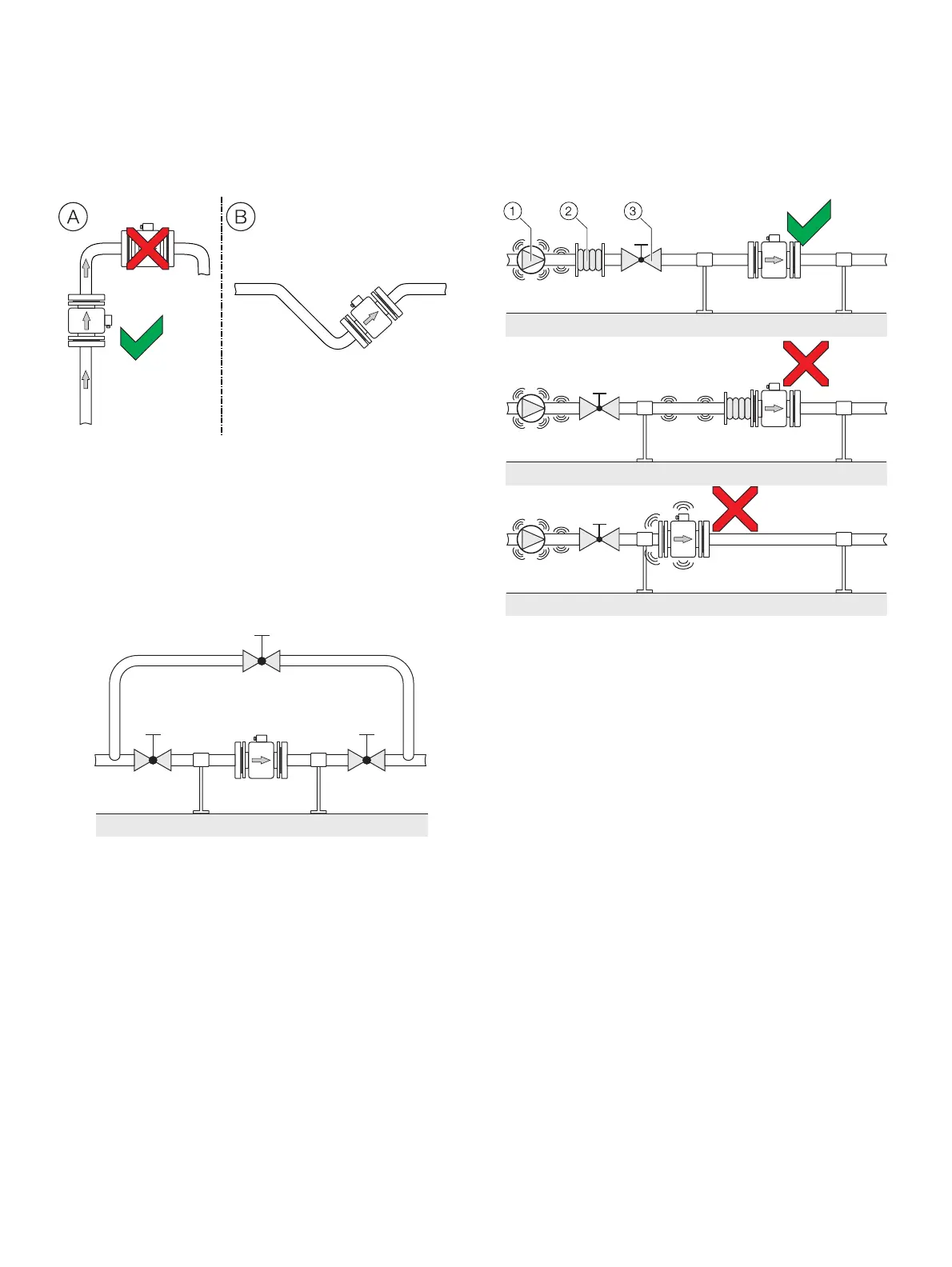

Figure 17: Free inflow and outflow
A For a free outflow, do not install flowmeter at the highest
point of the piping or on its outflow side, since the
measuring tube may run empty, creating air bubbles.
B For free inflow/outflow, provide an invert to make sure that
the piping is always full
Mounting with heavily contaminated measuring media
Figure 18: Bypass line
For strongly contaminated measuring media, a bypass line in
accordance with the figure is recommended so that operation of
the system can continue to run without interruption during
mechanical cleaning.
Mounting with pipe vibration
1 Pump
2 Damping device
3 Turn-off device
Figure 19: Vibration damping
If pipe vibration occurs, it needs to be damped using damping
devices.
The damping devices must be installed outside the support
section and outside of the piping section between the turn-off
devices.
Avoid connecting damping devices directly to the flowmeter
sensor.
