FEP630, FEH630 ELECTROMAGNETIC FLOWMETER | OI/FEP630/FEH630-EN REV. D 25
Rotate LCD indicator – dual-compartment housing
The LCD indicator can be rotated in three increments of 90°
each. To open and close the housing, refer to Opening and
closing the housing on page 23.
Turn the LCD indicator:
Perform steps
A to F.

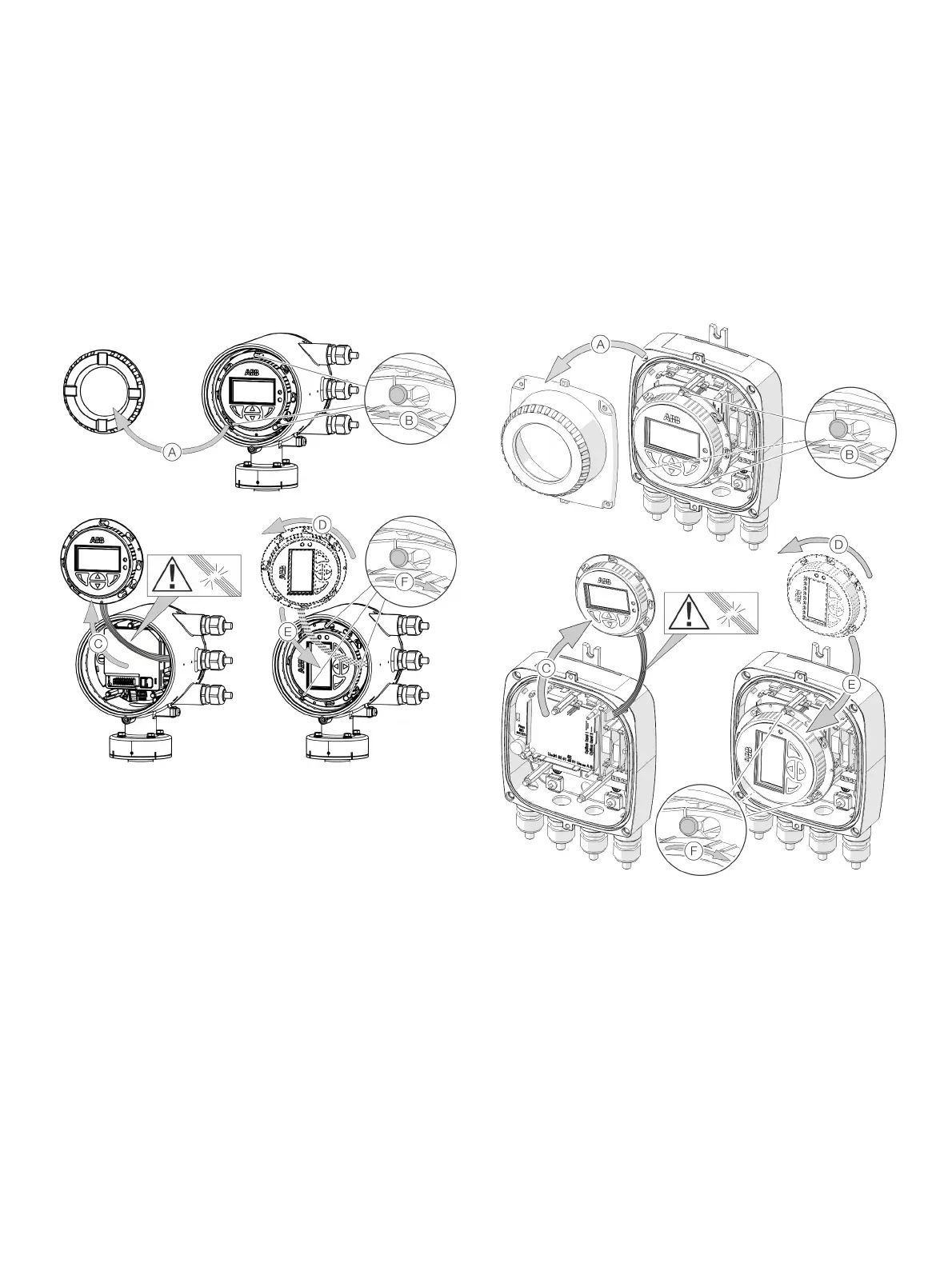

Figure 30: Rotating the LCD indicator
Rotate LCD indicator – single-compartment housing
The LCD indicator can be rotated in three increments of 90°
each. To open and close the housing, refer to Opening and
closing the housing on page 23.
Turn the LCD indicator:
Perform steps
A to F.
Figure 31: Rotating the LCD indicator
Change from two to one column
