ABB PSTX 570 - Dimension Prints PSTX210

12 Description | Service Manual | 1SFC13105M0201
• PSTX210...370
• PSTX470...570

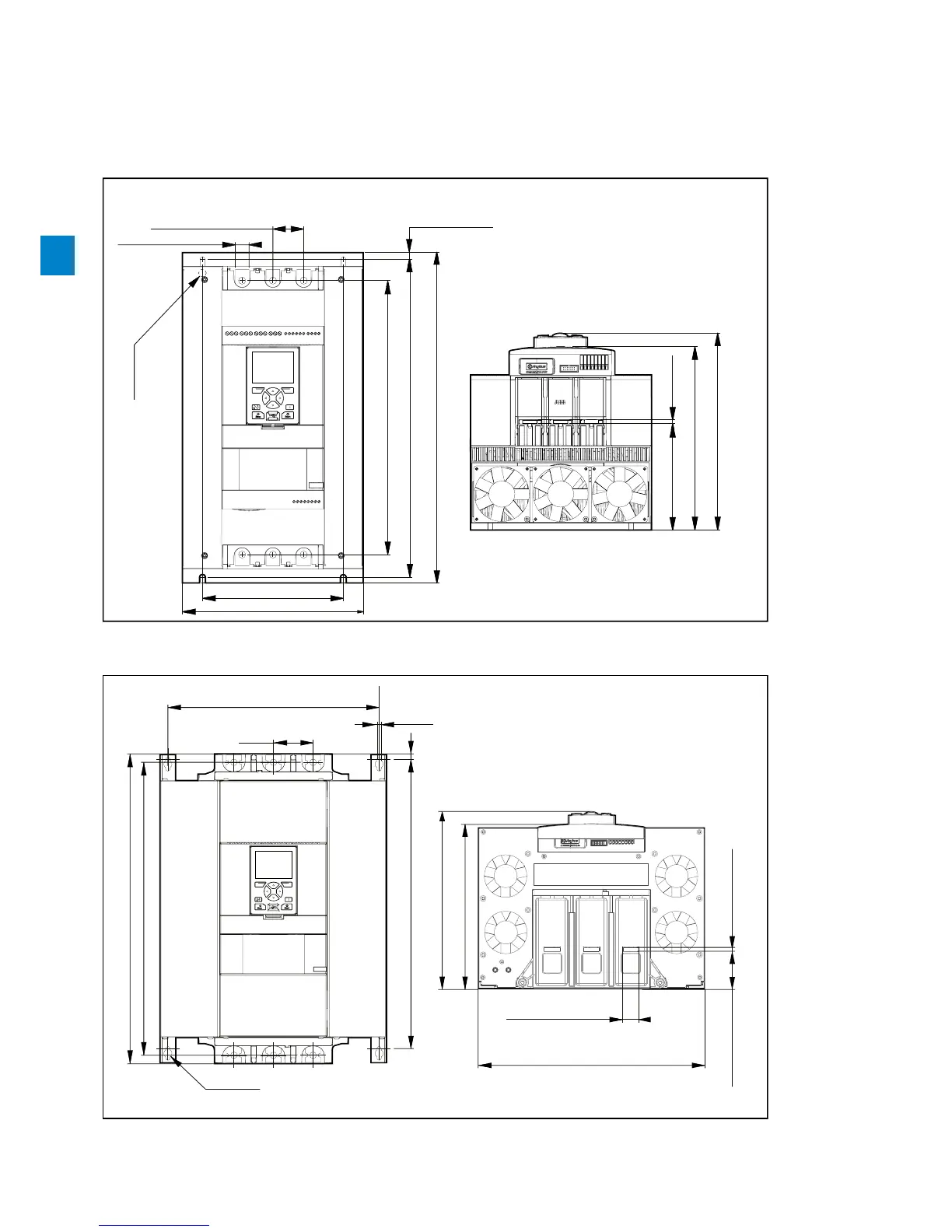

2.1.6 Dimension prints PSTX210...370, PSTX470...570
260 mm (10,2 in)
279.1 mm (10,9 in)
470 mm (18,5 in)
451.2 mm (17,7 in)
10,5 mm (0,4 in)
389 mm (15,3 in)
5 mm (0,2 in)151 mm (5,9 in)
Ø18 (2x)
200 mm (7,9 in)
258 mm (10,2 in)
43,7 mm (1,7 in) 4x
19,6 mm (0,8 in) 6x
361 mm (14.2 in)
282.15 mm (11.1 in)
262.82 mm (10.3 in)
6 mm (0.2 in) 6x
58.2 mm (2.3 in) 6x
25 mm (0.9 in) 6x
336 mm (13.2 in) 2x
460 mm (18.1 in)
63 mm (2.5 in) 4x
493 mm (19.4 in) 466 mm (18.3 in)
9 mm (0.3 in)
7 mm (0.2 in) 4x
Ø13 (4x)
2
