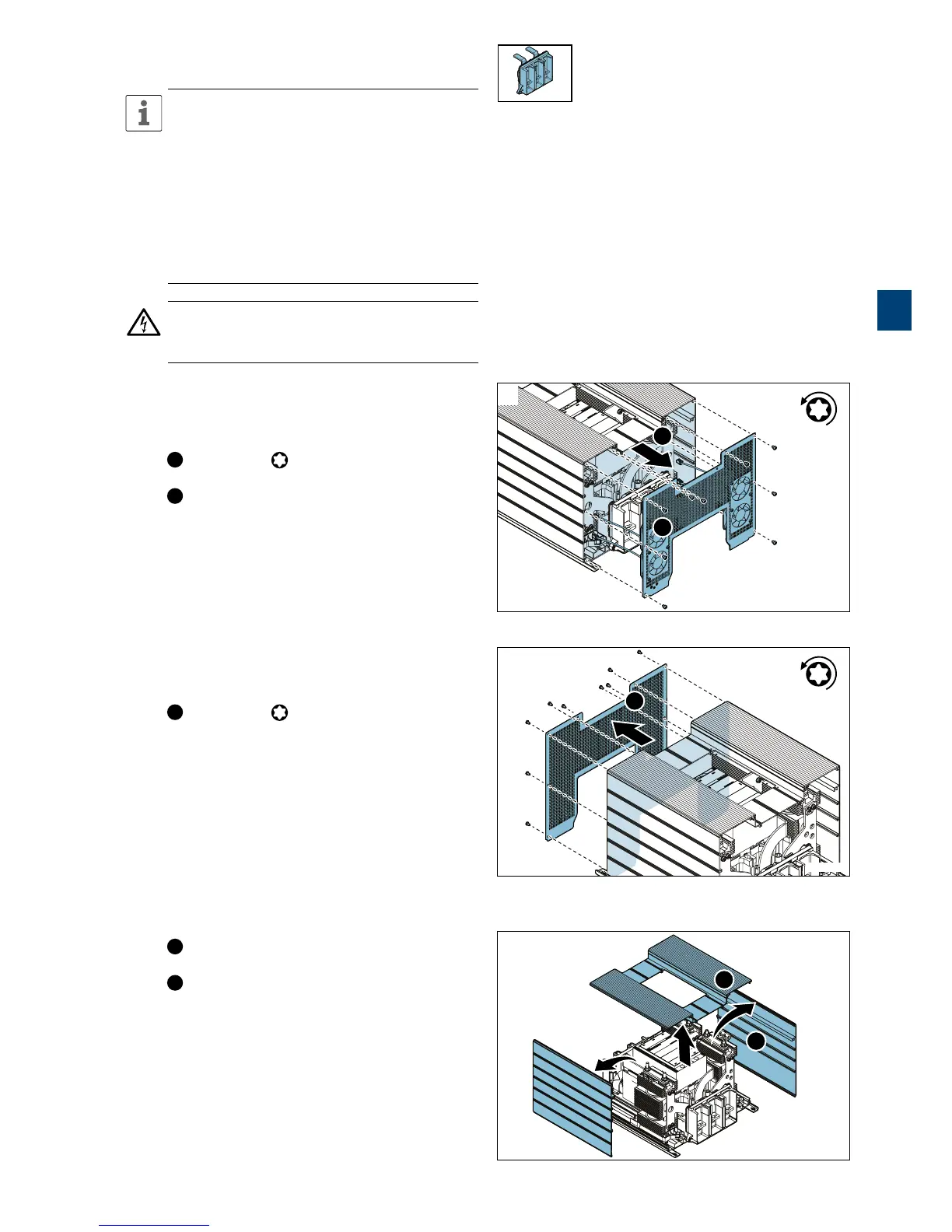

3.5.2 Change the Bar holders
DISMANTLE THE SOFTSTARTER
Remove main power cables and control
cables
Disconnect the main power cables and the control
cables as described in chapter 3.3.3, step 1-3.
Remove HMI cover and PCBA
Dismantle the HMI cover, all cables and the PCBA
as described in chapter 3.4.1, step 1-4.
CAUTION
Use protective gloves when working with cover
plates to prevent cutting injuries.
1. Remove fan cover
1
Loosen (10x) Torx 20 M4x8 from the fan
cover.
2
Pull the fan cover outwards from unit with the
fans still mounted to fan cover.
2. Remove top cover
1
Loosen (10x) Torx 20 M4x8 and pull the top
cover outwards from unit.
3. Remove front- and side covers
1
Remove the front cover by lifting it upwards
from unit.
2
Remove the side covers by slightly tilting them
outwards from unit and then sliding them sideways
until disengaged from locking rails.
Tx 20
M4 x 8
1
3.5.2_1
2
1
Tx 20
M4 x 8
2
3.5.2_2
1
3
3.5.2_3
1
2
