48 Service PSTX720...840 | Service Manual | 1SFC13105M0201

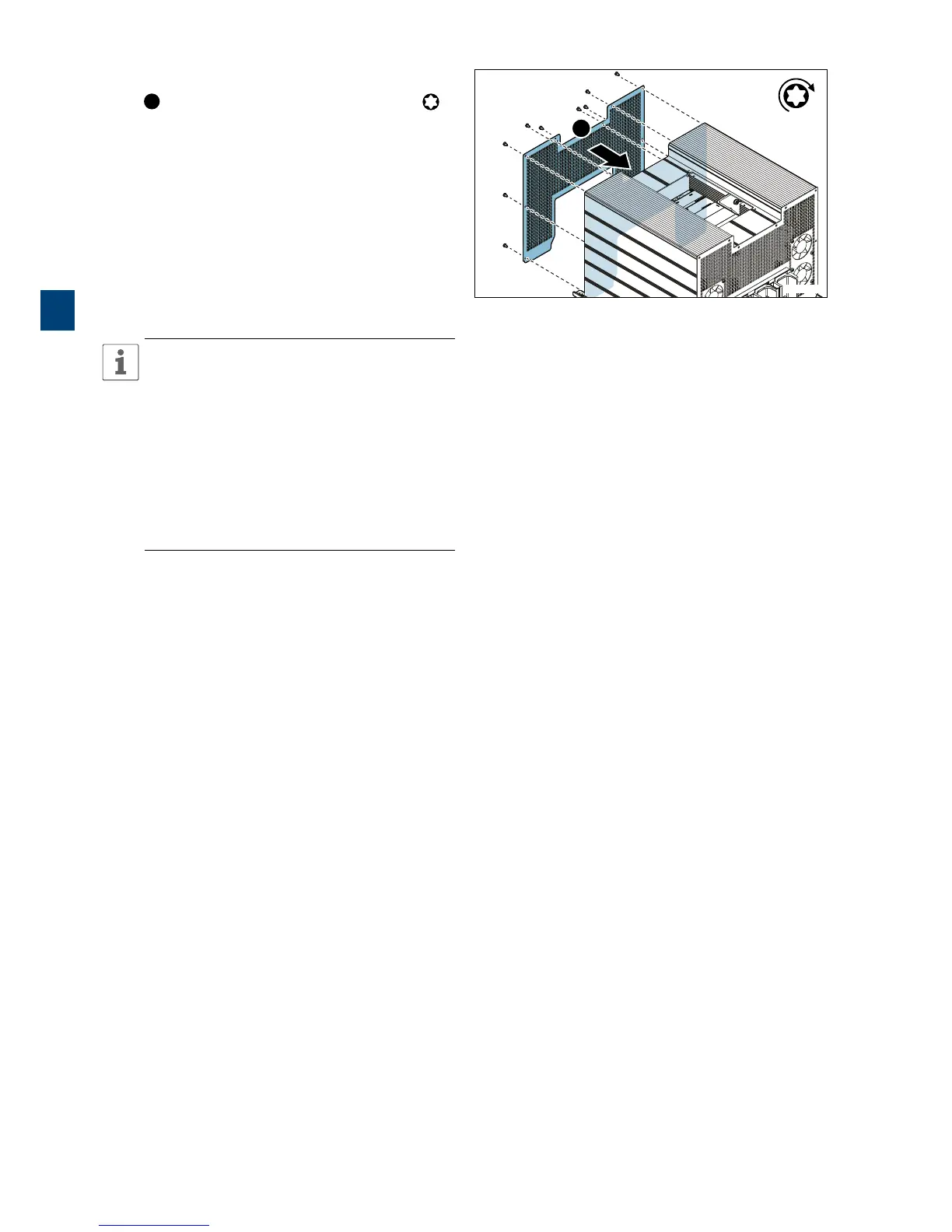

9. Place top cover
1
Fasten the top cover to the unit with (10x)
Torx 20 M4x8 (2,9Nm).
REASSEMBLE THE SOFTSTARTER
Place PCBA, cables and HMI cover
Place the PCBA, connect all cables and install the
HMI cover as described in chapter 3.4.1, step
6-11.
Connect main power cables and control
cables
Connect the main power cables and the control
cables as described in chapter 3.3.4, step 1-2.
Tx 20
M4 x 8
(2,9Nm)
9
3.7.2_9
1
