128 Product manual - PVS-175-TL;A.1 Version
EN
3. INVERTER TURN-OFF

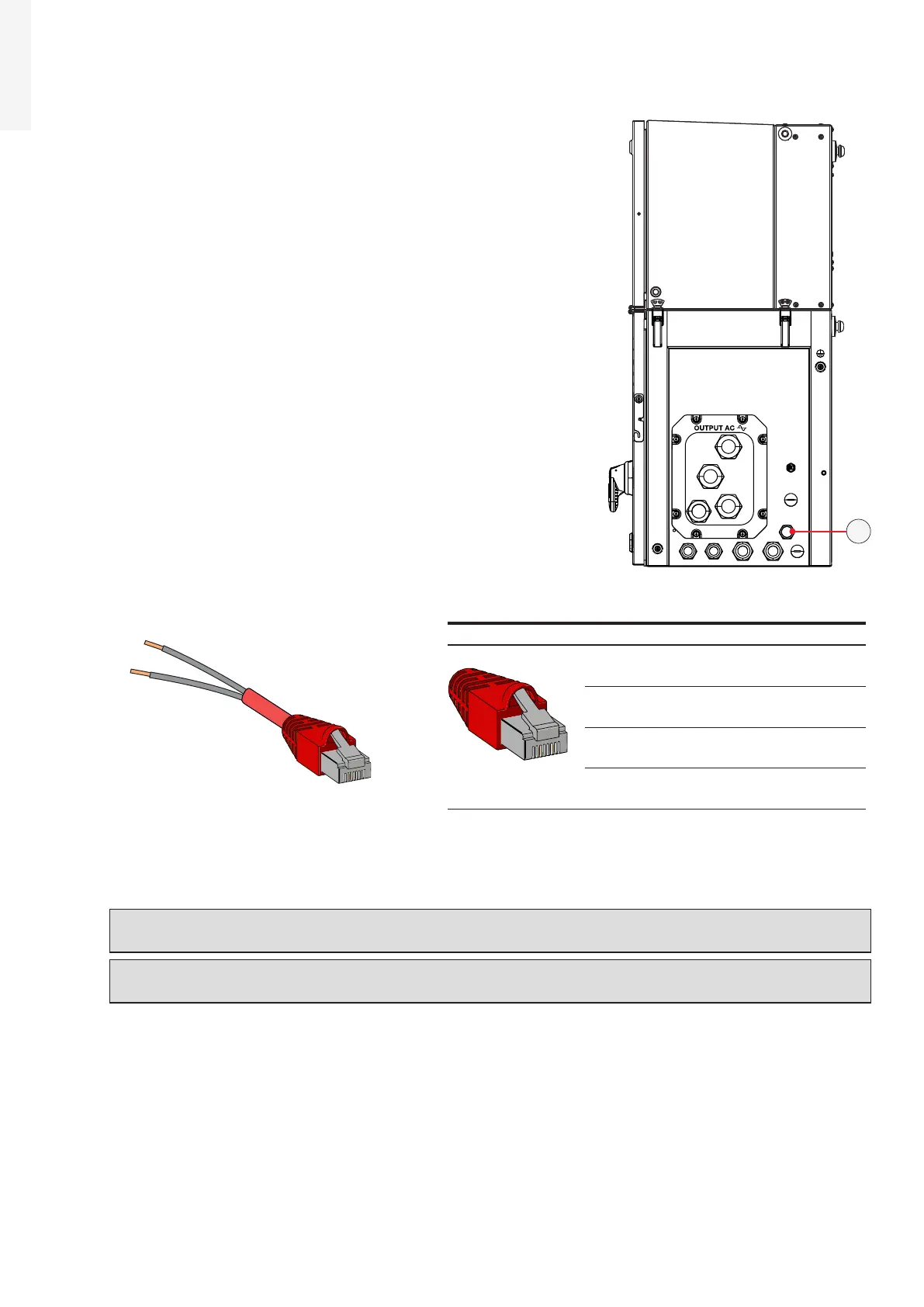

The inverter have an external RJ45 connector (14) on which a
RS485 service-related communication line and REMOTE OFF
signal is provided.
• Prepare an RJ45 cable with the PIN 1 and PIN 7 bond togheter and properly isolated. The pin-out of the
connector is the following:
7
1
1 8
•
Connect the modified RJ45 cable to the external RJ45 connector (14) to perform a soft shut-down of the
inverter. The connection of the cable will causes the interruption of the operation of the inverter, i.e. it
stops the IGBT switching, interrupts the injection of current into the grid and open the AC contactor.
WARNING – B The REMOTE OFF function doesn’t cause the disconnection of power sources from
the inverter!
ATTENTION – A Make sure to keep the jumper fitted in the RJ45 connector to ensure the inverter
in OFF condition. Make sure to remove the cable from the connector prior to restart the inverter.
14
Pin No. Function
1 Remote OFF
7 GND
1, 2, 4, 6, 8 Not used
3, 5
RS485 for ABB
Service operation
