4. Check the absence of dangerous voltages on inverter enclosure respect ground
•
Check the absence of dangerous voltage on the inverter chassis.

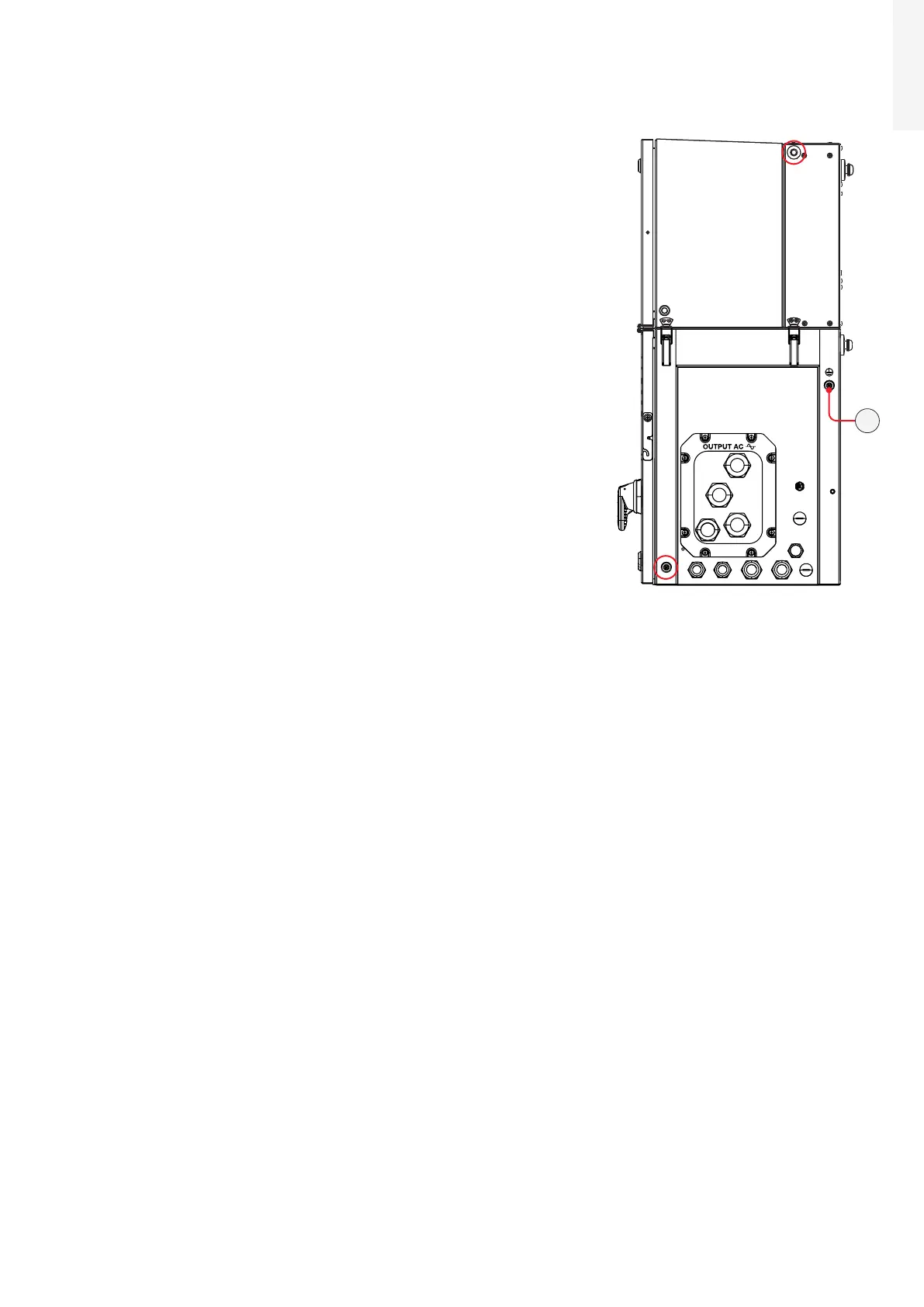

The measurement point are between inverter chassis not-
painted part (both power module (01) and wiring box (02) -
samples point circled in red) and the Protective earth point
(ext.) (10) outside the inverter.
