• Attach the bracket (03) to the support with at least 6 attachment screws (shown in RED) or at least 6
frame fixing bracket for frame mounting (shown in BLUE).
• Depending on the type of anchor chosen, drill the required holes to mount the bracket (03).

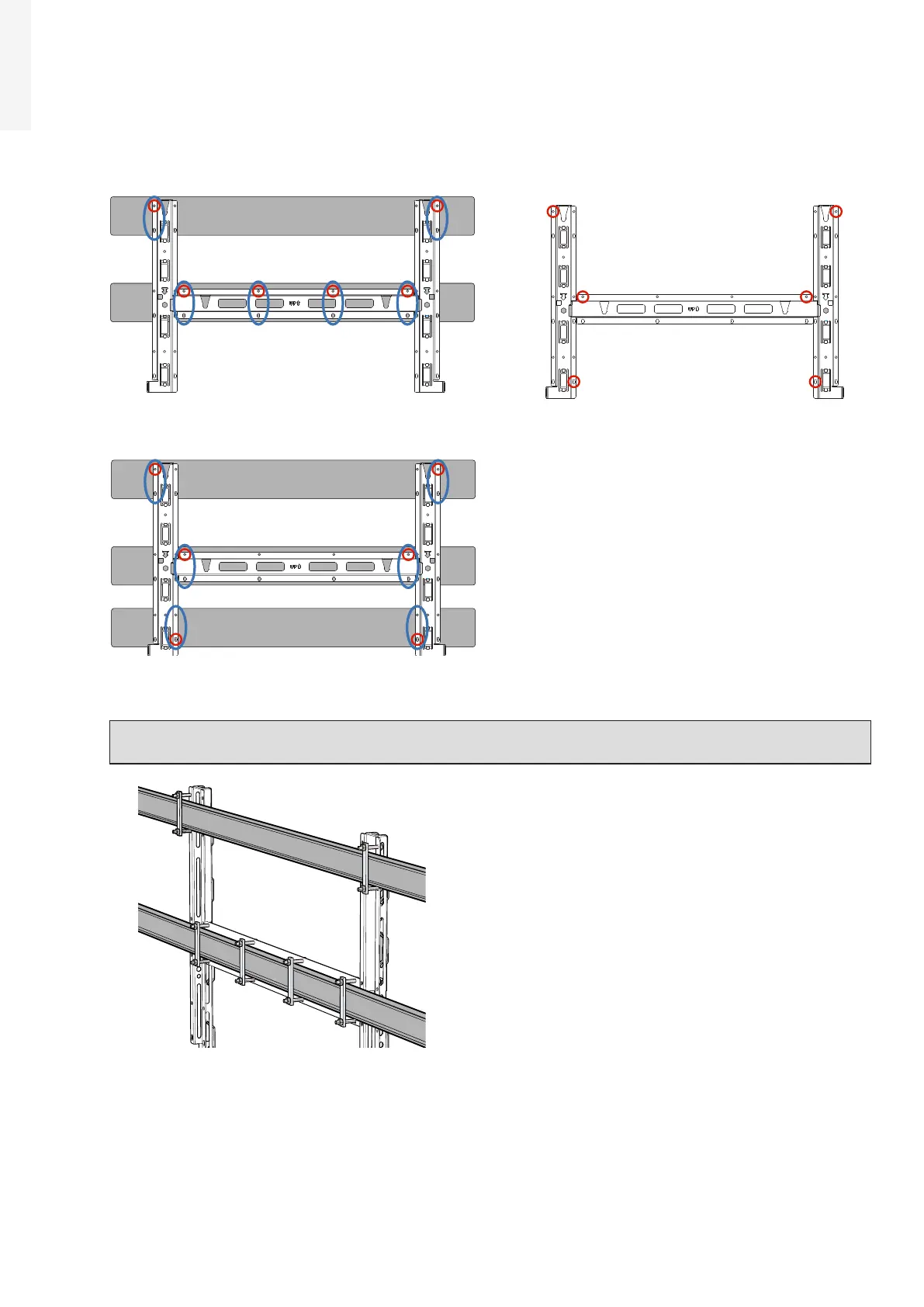

The pictures shown the recommended minimum fixing point depending to type of support.
Wall mounting minimum fixing points
Frame mounting (2 supports) minimum fixing
points
Frame mounting (3 supports) minimum fixing
points
NOTE – D In case of use of “frame fixing brackets” (see picture as example) it will be possible to
fix the bracket to the frame structure without drilling any additional holes.
• Fix the bracket (03) to the support.
