5.8.2 String connection

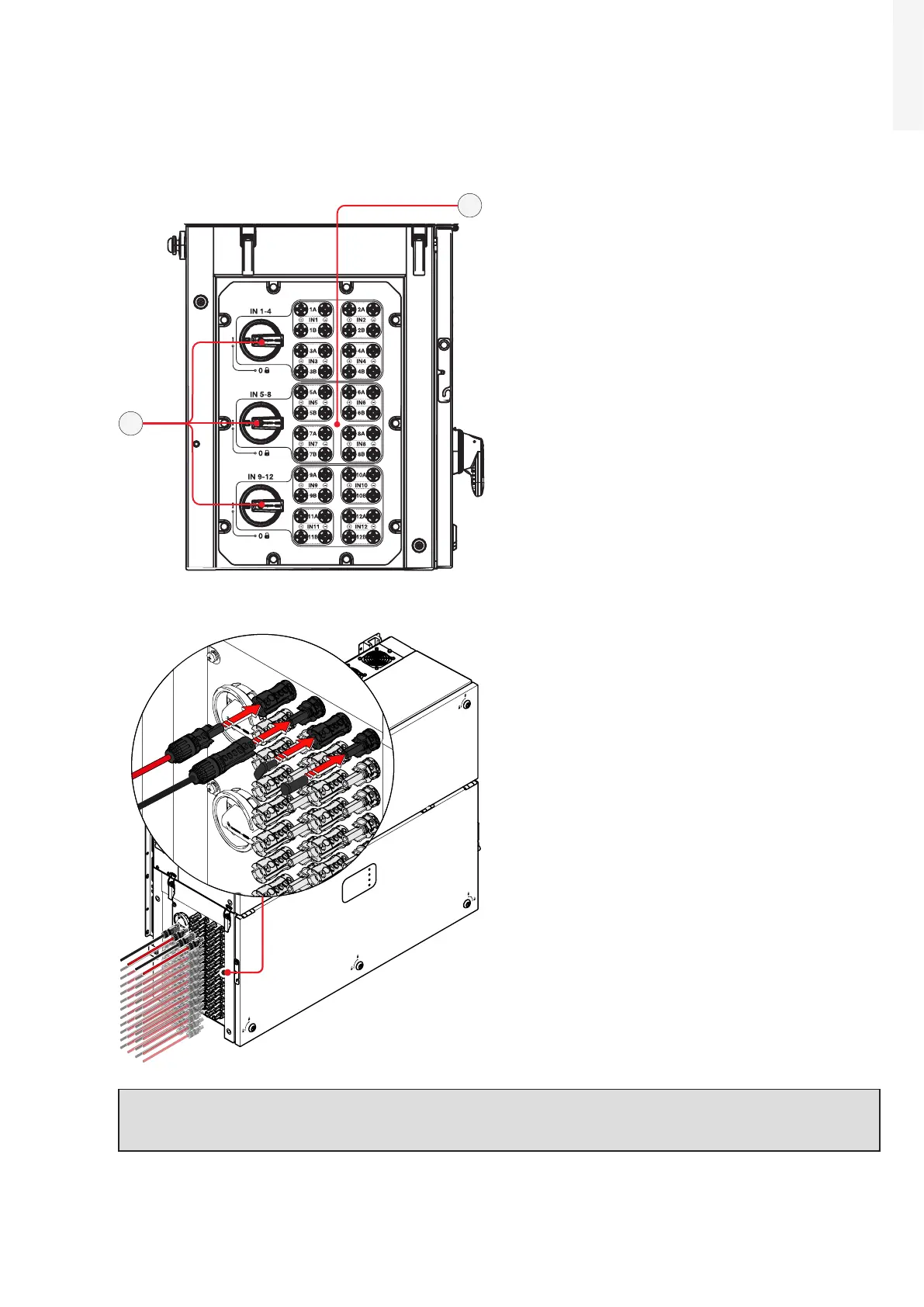

The input connectors are divided into 12 MPPTs (one MPPTs for each input channel) consisting of 2 pairs
of quick fit connectors.
Each DC disconnect switches (19) are related to a group of four MPPTs.
18
19
• Connect all the strings required by the system, always checking the seal of the connectors.
PVS
ATTENTION – A If any string inputs is not required check that protective caps are installed to
the relative unused connectors. This is necessary for the inverter seal and to avoid any damage
to the unused connectors which may be used at a later time.
