Table 4.3.2.3.-1 IRF codes (Continued)
Fault code Type of fault
51, 52, 53
a)
, 54, 56 Faulty parameter memory
b)
55 Faulty parameter memory, calibration parameters
75 RTD module faulty
80 RTD module missing
81 RTD module unknown
82 RTD module configuration error
85 Power supply module faulty
86 Power supply module unknown
90 Hardware configuration error
95 Communication module unknown
104 Faulty configuration set for IEC 60870-5-103
131, 139, 195, 203, 222, 223 Internal reference voltage error
253 Error in the measuring unit
a)
All setting values will be zero during the fault
b)
May be corrected by formatting to the factory setting.
Warning
In case of a less severe fault (warning), the relay continues to operate except for
those protection functions possibly affected by the fault. At this type of fault, the
green target LED remains lit as during normal operation, but the text WARNING
with a fault code or a text message indicating the fault type replaces the name of the
feeder on the display in the idle mode. Some of these faults can be corrected by a
relay operator at site. After the fault has disappeared or been corrected, the message
is automatically cleared.
WARNING
BATTERY LOW
A040279

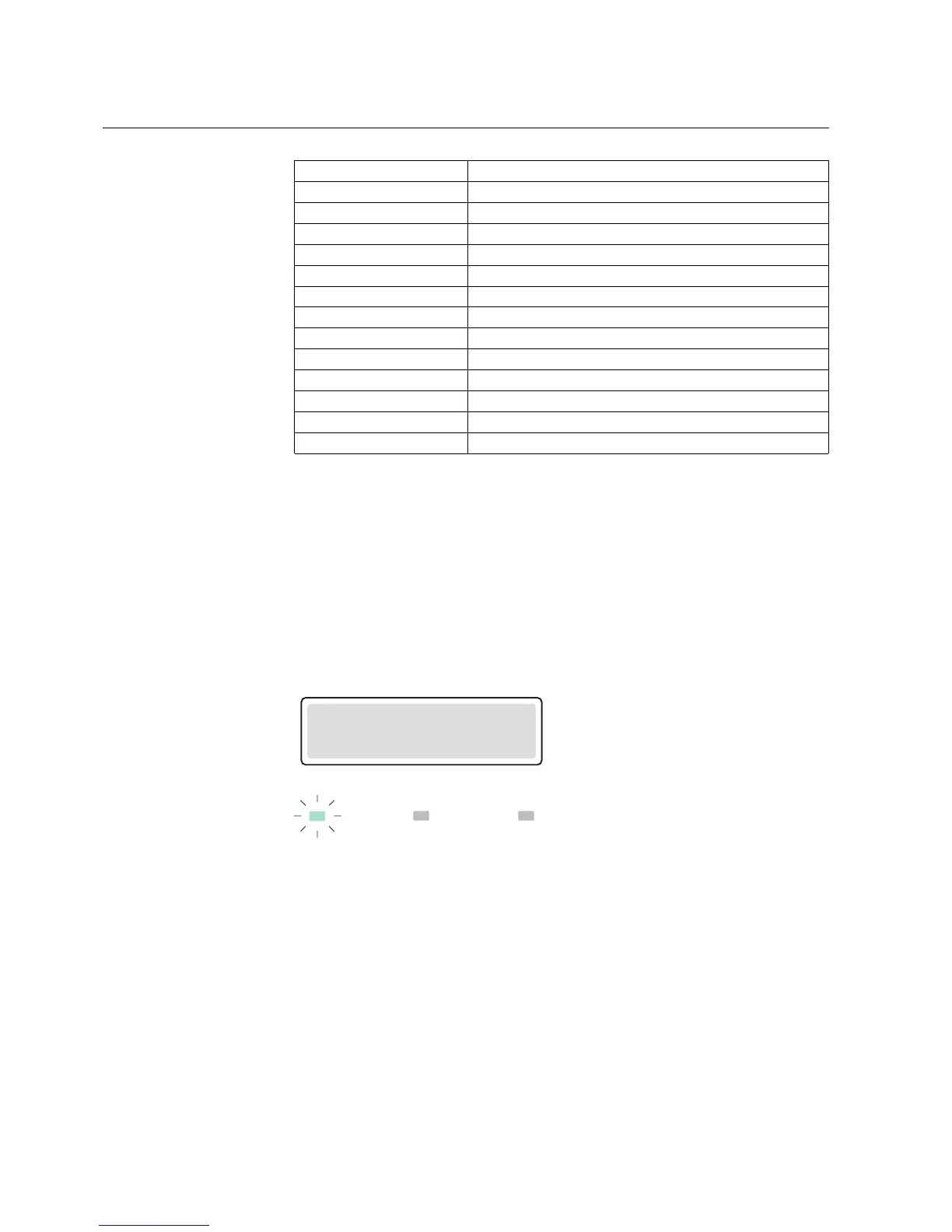

Fig. 4.3.2.3.-2 Warning with text message
If more than one type of fault occur at the same time, one single numeric code which
indicates all the faults is displayed. For instance, 2049 implies two faults: the
battery is low and the temperature sensor RTD6 is faulty. The code is composed of
the weighting factors assigned to each fault type as follows: 1 + 2048; see
Table 4.3.2.3.-2
44
REM 610REM 610
Motor Protection Relay
Operator's Manual - ANSI ve rsion
1MRS755538
