1MRK 500 124-UEN Section 3
HMI500
Operation Manual 49
Distributed busbar protection REB500
3.6.4.2 Enabling GOOSE Client
This section describes the pre-configuration of the GOOSE Client.

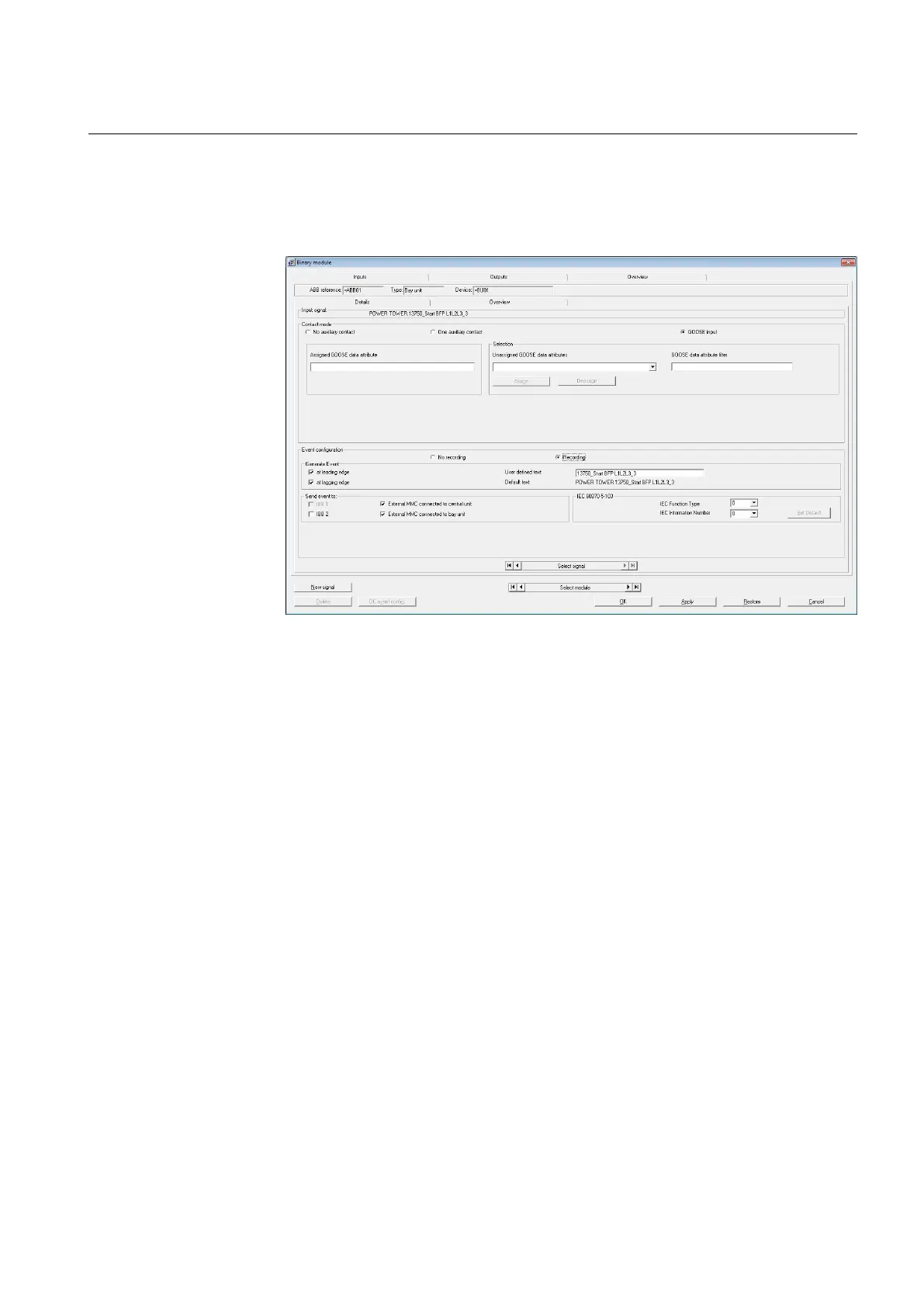

Figure 34 Configuration / Binary module - Inputs – Details– Contact mode
The GOOSE Client is enabled if at least one of the REB500 input signals has been
configured as “GOOSE input”. The Radio Button “GOOSE input” is only available
for specific REB500 signals. The “Assign” Button is enabled after the Station
configuration file (SCD) has been imported.
