1MRK 500 124-UEN Section 3
HMI500
Operation Manual 51
Distributed busbar protection REB500

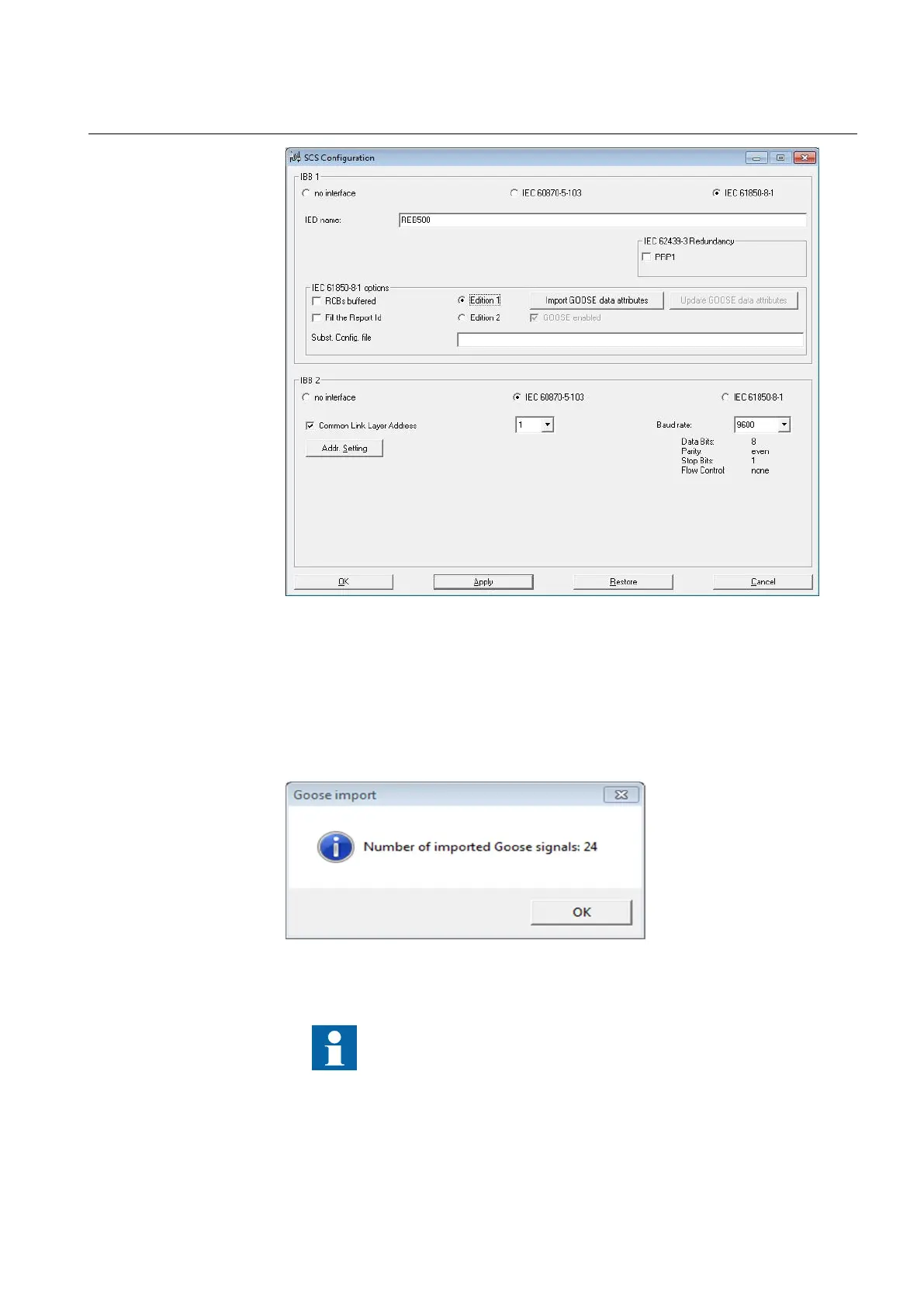

Figure 37 Configuration / SCS Configuration – IEC 61850-8-1 options
Once the SCD file is imported to the HMI500, the “Import GOOSE data attribute”
button changes the text label to “Delete GOOSE data attributes”.
A successful import is indicated by the “GOOSE data attributes imported” message
box. The number of imported attributes is shown in the box.
Figure 38 GOOSE data attributes imported
To simplify GOOSE engineering in REB500, the import of GOOSE
signals is limited to specific logical nodes (e.g. PTRC).
