Section 3 1MRK 500 124-UEN
HMI500
52 Operation Manual
Distributed busbar protection REB500
3.6.4.5 GOOSE input mapping
This section describes the configuration process of “GOOSE input” mapping in
HMI500 menu “Configuration / Binary Module / Inputs / Details”.

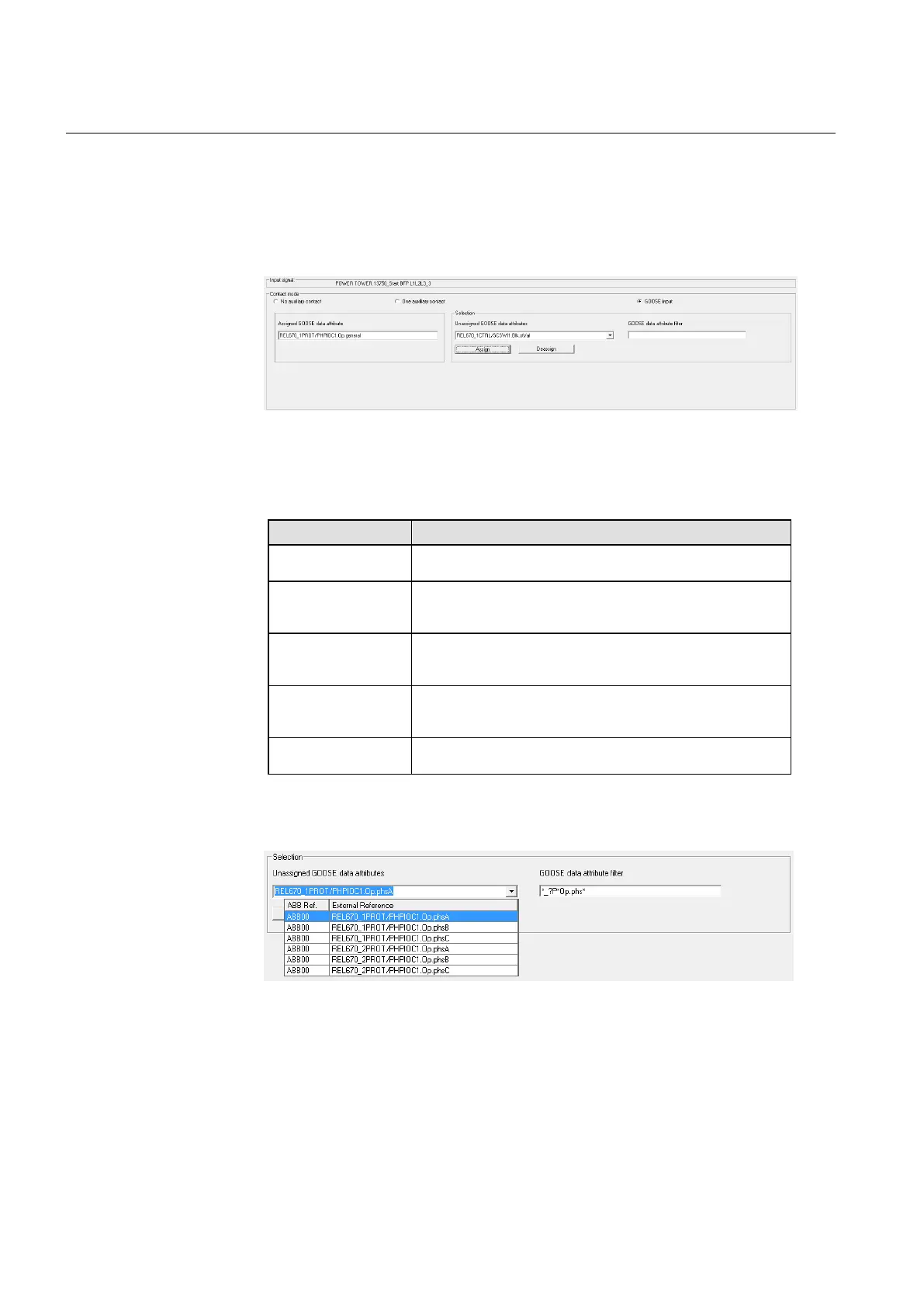

Figure 39 Configuration / Binary module / Inputs / Details – Contact mode –
GOOSE Input
Table 11 GOOSE Input Menu Items
Menu Items Description
Assigned GOOSE
data
Attribute
If a REB500 Signal has assigned to a
GOOSE data attribute then
the name of the attribute is listed in this field
Selection
–
Unassigned GOOSE
data Attributes
List of GOOSE data attributes which can be assigned to the
selected “Input signal”. See Figure 40
Selection
–
Assign
Confirms the mapping of the selected attribute to the REB500
Signal. The “Assign” Button is enabled after the Station
configuration file (SCD) has been imported.
Selection
–
Deassign
Breaks the connection between the GOOSE data attribute and the
REB500 input signal. The GOOSE data attribute can be assigned
to another REB500 Signal
Selection
–
GOOSE
data attribute filter
See
Table
12
Figure 40 Configuration / Binary module / Inputs / Details – Contact mode –
GOOSE Input - Selection
