4. Operation
4.1. HMI features
4.1.1. Front panel
The front panel of the relay contains:
*
Alphanumeric 2 × 16 characters’ LCD with backlight and automatic contrast
control
*
Threetarget LEDs (green, yellow, red) with fixed functionality
*
Eight programmable target LEDs (red)
*
HMI push-button section with four arrow buttons and buttons for clear/cancel
and enter, used in navigating in the menu structure and in adjusting setting values
*
Optically isolated serial communication port with a target LED.
1
2
3
4
5
6
A040215_2

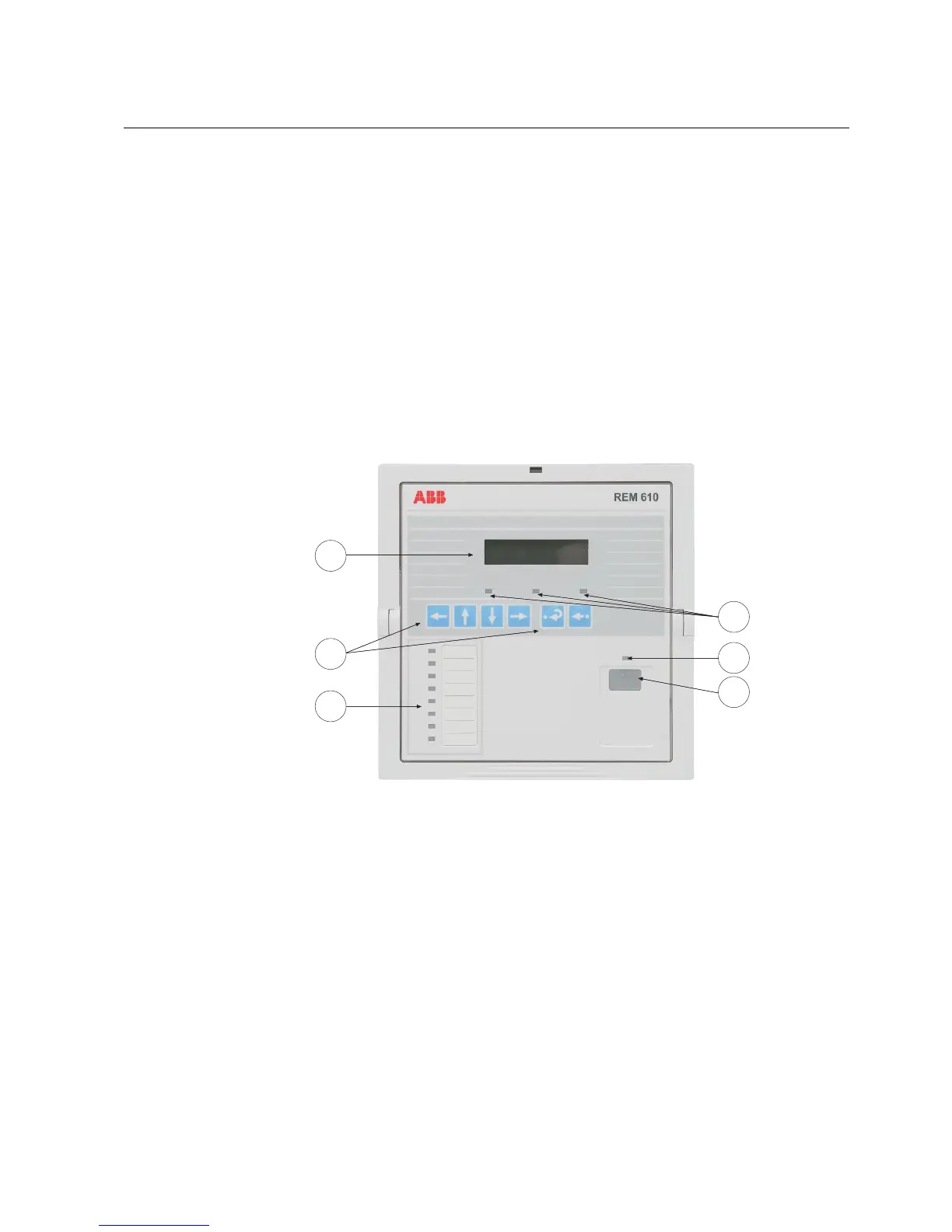

Fig. 4.1.1.-1 Front view of the relay
1) LCD
2) HMI push-button section
3) Programmable target LEDs (red)
4) Target LEDs:
*
Left: Ready (green)
*
Center: Pickup/Alarm (yellow)
*
Right: Trip (red)
5) Target LED for front communication
6) Front communication port (infrared)
