Table 111: T_POS_CL Output signal
Name Type Description
CLOSE BOOLEAN Output signal
Table 112: T_POS_OP Output signal
Name Type Description
OPEN BOOLEAN Output signal
Table 113: T_POS_OK Output signal
Name Type Description
OK BOOLEAN Output signal
Settings
The function does not have any parameters available in LHMI or Protection and
Control IED Manager (PCM600).

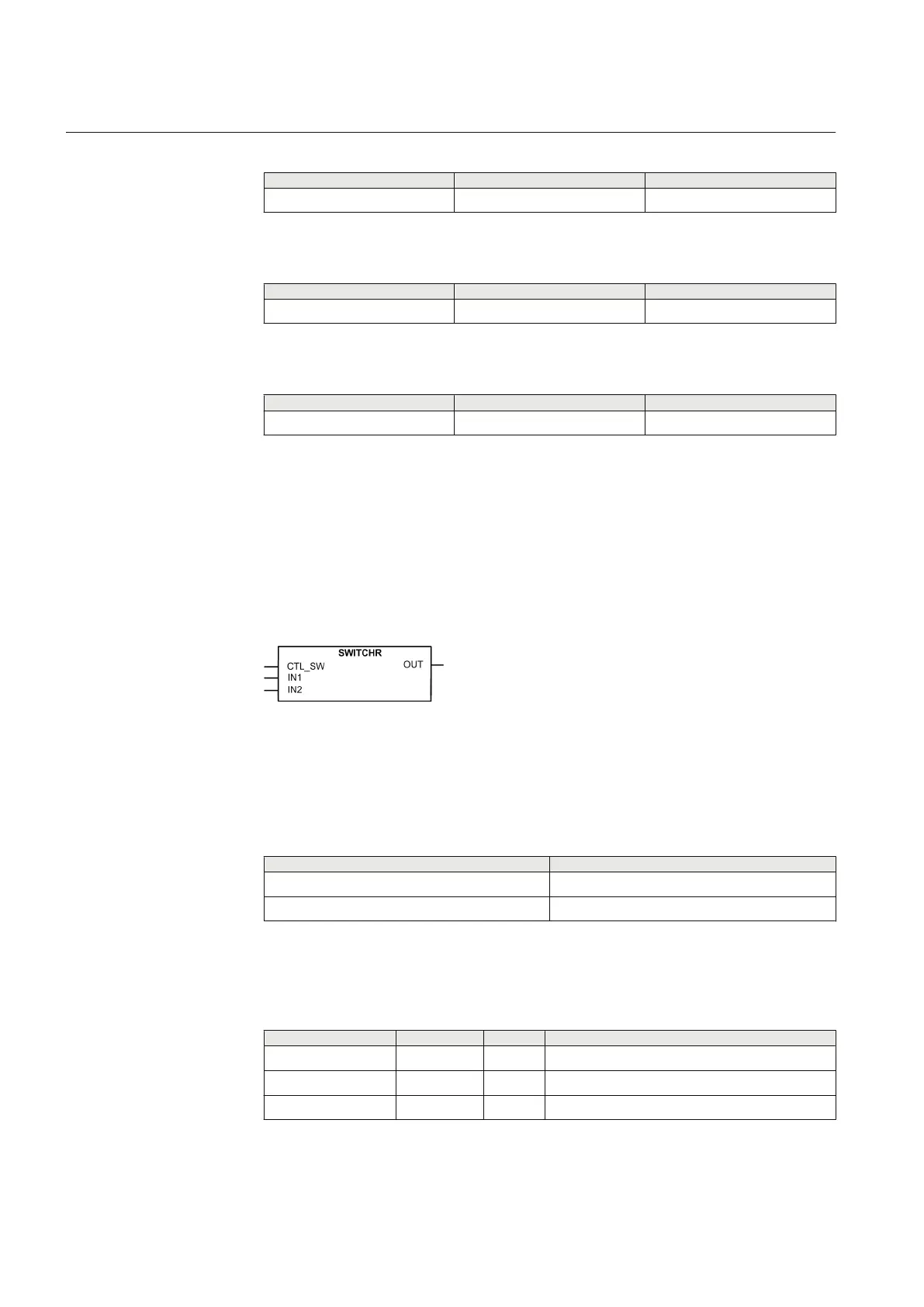

3.14.1.10 SWITCHR function block
Function block
GUID-63F5ED57-E6C4-40A2-821A-4814E1554663 V1 EN
Figure 51: Function block
Functionality
SWITCHR switching block for REAL data type is operated by the CTL_SW input,
selects the output value OUT between the IN1 and IN2 inputs.
CTL_SW
OUT
FALSE IN2
TRUE IN1
Signals
Table 114: SWITCHR Input signals
Name
Type Default Description
CTL_SW BOOLEAN 1 Control Switch
IN1 REAL 0.0 Real input 1
IN2 REAL 0.0 Real input 2
Section 3 1YHT530004D05 D
Basic functions
116 615 series
Technical Manual

ABB REM615 A Specifications

General

Type	Feeder Protection Relay
Rated Frequency	50/60 Hz
Rated Current	1 A / 5 A
Communication Protocols	IEC 61850, Modbus, DNP3
Product Type ID	REM615
Protection Functions	Overcurrent, Earth Fault, Thermal Overload
Operating Temperature	-25 to +55 °C
Product Name	REM615 A
Rated Voltage	100-240 V AC/DC
Number of Binary Outputs	6
Input Voltage	24-250 V DC
Enclosure	IP54
Weight	2.5 kg
Mounting	Flush mounting
