3.14.2.2 Minimum pulse timer TPSGAPC
Function block
GUID-F9AACAF7-2183-4315-BE6F-CD53618009C0 V1 EN

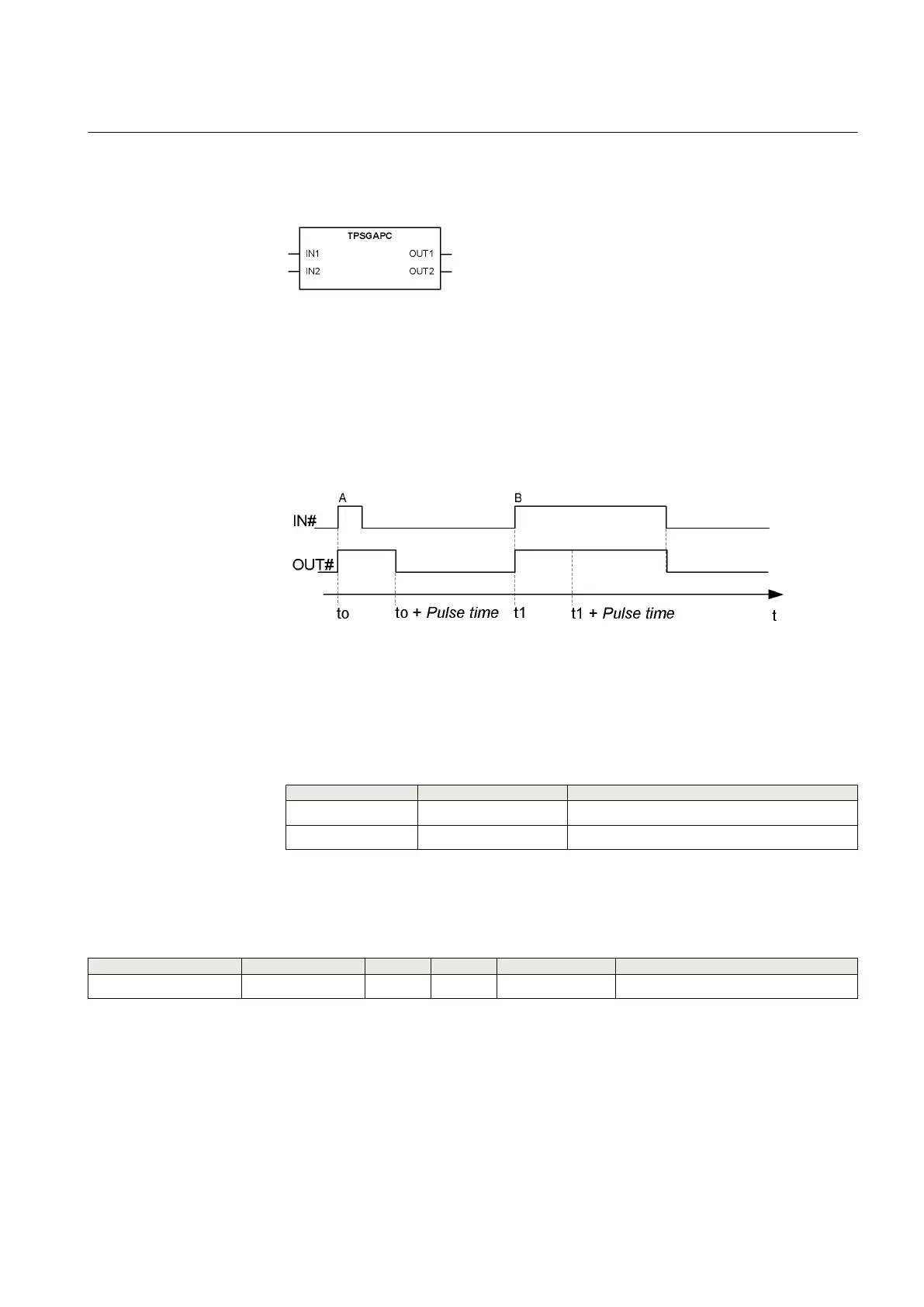

Figure 55: Function block
Functionality
The Minimum second pulse timer function TPSGAPC contains two independent
timers. The function has a settable pulse length (in seconds). The timers are used
for setting the minimum pulse length for example, the signal outputs. Once the
input is activated, the output is set for a specific duration using the Pulse time setting.
GUID-8196EE39-3529-46DC-A161-B1C40224559F V1 EN
Figure 56: A = Trip pulse is shorter than Pulse time setting, B = Trip pulse is
longer than Pulse time setting
Signals
Table 121: TPSGAPC Output signals
Name
Type Description
OUT1 BOOLEAN Output 1 status
OUT2 BOOLEAN Output 2 status
Settings
Table 122: TPSGAPC Non group settings
Parameter
Values (Range) Unit Step Default Description
Pulse time 0...300 s 1 0 Minimum pulse time
1YHT530004D05 D Section 3
Basic functions
615 series 119
Technical Manual

ABB REM615 A Specifications

General

Type	Feeder Protection Relay
Rated Frequency	50/60 Hz
Rated Current	1 A / 5 A
Communication Protocols	IEC 61850, Modbus, DNP3
Product Type ID	REM615
Protection Functions	Overcurrent, Earth Fault, Thermal Overload
Operating Temperature	-25 to +55 °C
Product Name	REM615 A
Rated Voltage	100-240 V AC/DC
Number of Binary Outputs	6
Input Voltage	24-250 V DC
Enclosure	IP54
Weight	2.5 kg
Mounting	Flush mounting
