11
223427386
Unità
Units
ABCD
1 via/way 281 297 336 371
2 vie/way 606 622 663 696
3 vie/way 931 947 988 1021
4 vie/way 1256 1272 1313 1346
5 vie/way 1581 1597 1636 1671
NHP 102102
A
4. Installazione
La base di montaggio deve essere perfettamente orizzontale,
e provvista di bulloni di ancoraggio appropriati in base al
numero di moduli o unità da installare, secondo quanto illustra-
to nel disegno.
4. Installation
The assembly base must be perfectly horizontal and provided
with suitable anchoring bolts according to the number of
modules or units to be installed, as shown in the drawing.

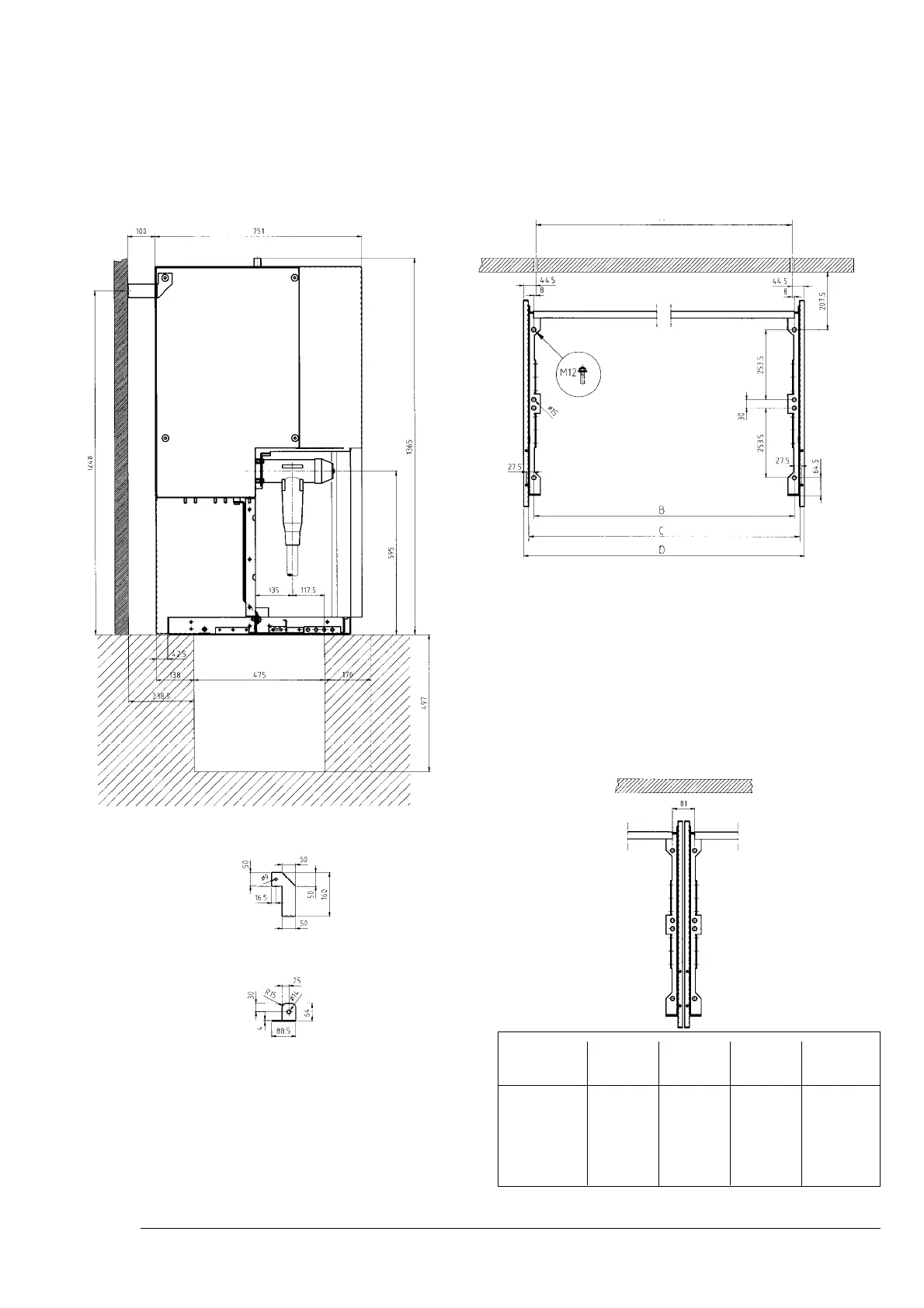

Fig. 8

Table of Contents

Other manuals for ABB SafePlus

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the ABB SafePlus and is the answer not in the manual?

ABB SafePlus Specifications

General IconGeneral
Rated voltageUp to 24 kV
Rated currentUp to 1250 A
Insulation mediumSF6 gas
Rated Lightning Impulse Withstand Voltage125 kV
StandardsIEC 62271-200
DimensionsVaries by configuration
WeightVaries by configuration
Short-time withstand currentUp to 25 kA
