2. Trasporto e movimentazione
Le unità sono fornite pronte per l’installazione.
Tavola dei pesi
SafeRing in configurazione standard
DV 2 vie 252 kg
DF 2 vie 260 kg
CCV 3 vie 313 kg
CCF 3 vie 320 kg
CCCV 4 vie 403 kg
CCCF 4 vie 410 kg
CCVV 4 vie 411 kg
CCFF 4 vie 430 kg
CCC 3 vie 300 kg
CCCC 4 vie 390 kg
SafePlus in configurazione standard
1 via 130 kg
2D 3 e 4 vie come SafeRing
D 5 vie 480 … 600 kg circa
Scomparto misure
M 250 kg circa
I pesi si riferiscono alle unità senza apparecchiature aggiuntive.
I quadri SafeRing / SafePlus sono provvisti di golfari di solleva-
mento, ma possono essere trasportati anche su pallet median-
2. Transport and handling
The units are supplied ready for installation.
Table of weights
SafeRing in standard configuration
DV 2-way 252 kg
DF 2-way 260 kg
CCV 3-way 313 kg
CCF 3-way 320 kg
CCCV 4-way 403 kg
CCCF 4-way 410 kg
CCVV 4-way 411 kg
CCFF 4-way 430 kg
CCC 3-way 300 kg
CCCC 4-way 390 kg
SafePlus in standard configuration
1-way 130 kg
2D 3- and 4-way like SafeRing
D 5-way 480 … 600 kg approx.
Instrument cubicle
M 250 kg approx.
The weights refer to the units without additional apparatus.

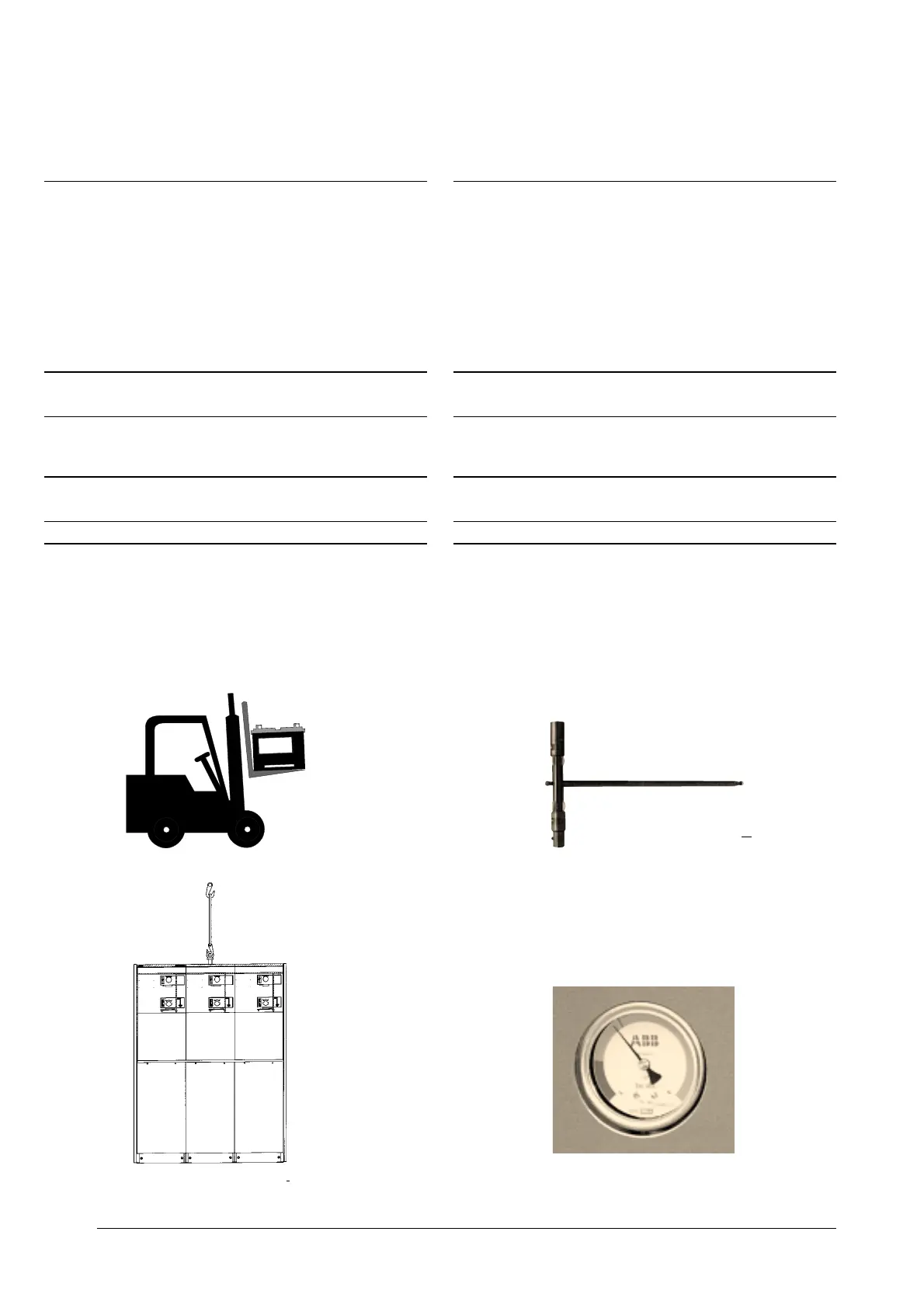

The SafeRing / SafePlus switchboards are fitted with lifting
eyebolts, but can also be transported on pallets using a fork lift
truck.
Fig. 6

ABB SafePlus Specifications

General

Rated voltage	Up to 24 kV
Rated current	Up to 1250 A
Insulation medium	SF6 gas
Rated Lightning Impulse Withstand Voltage	125 kV
Standards	IEC 62271-200
Dimensions	Varies by configuration
Weight	Varies by configuration
Short-time withstand current	Up to 25 kA
