SM500F
Field mountable paperless recorder 7 Configuration
IM/SM500F Rev. Z 109

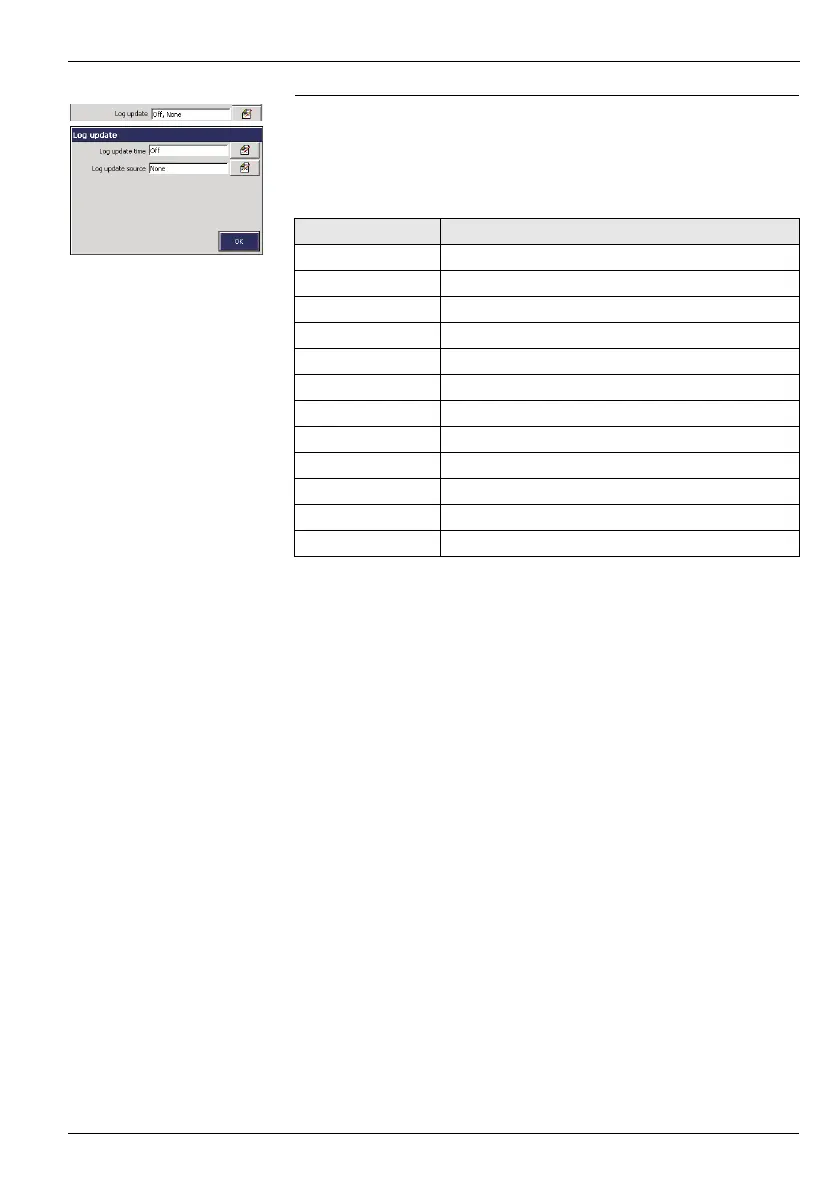

Select the frequency with which totalizer values are added to the Totalizer
log.
Select a 'Log update source' signal (see Appendix A, page 146) – an
edge-triggered signal to trigger the addition of the current totalizer values
to the Totalizer log on a rising edge.
Log update time Log updated every...
5 minutes 0, 5, 10, 15... etc. minutes past the hour
10 minutes 0, 10, 20, 30,...etc. minutes past the hour
15 minutes 0, 15, 30, 45 minutes past the hour
20 minutes 0, 20, 40 minutes past the hour
30 minutes 0, 30 minutes past the hour
60 minutes On the hour
2 hours Midnight, 2am, 4am, etc.
3 hours Midnight, 3am, 6am, etc.
4 hours Midnight, 4am, 8am, etc.
8 hours Midnight, 8am, 4pm, etc.
12 hours Midnight, 12am
24 hours Midnight
