2.2.2 Wall-Mounting
Referring to Fig. 2.5, secure the recorder to a wall as follows:
a Position the left- and right-hand mounting brackets into the recesses on the rear of the recorder as
shown and secure with the bracket securing screws. Ensure the plastic washers remain in the
positions fitted.
b Mark fixing centers and drill suitable holes in the wall.
c Secure the recorder to the wall using 2 screws in each mounting bracket.
Note. If removal of knockouts is required, refer to Section 2.3.1, page 15.
Dimensions in mm (in.)

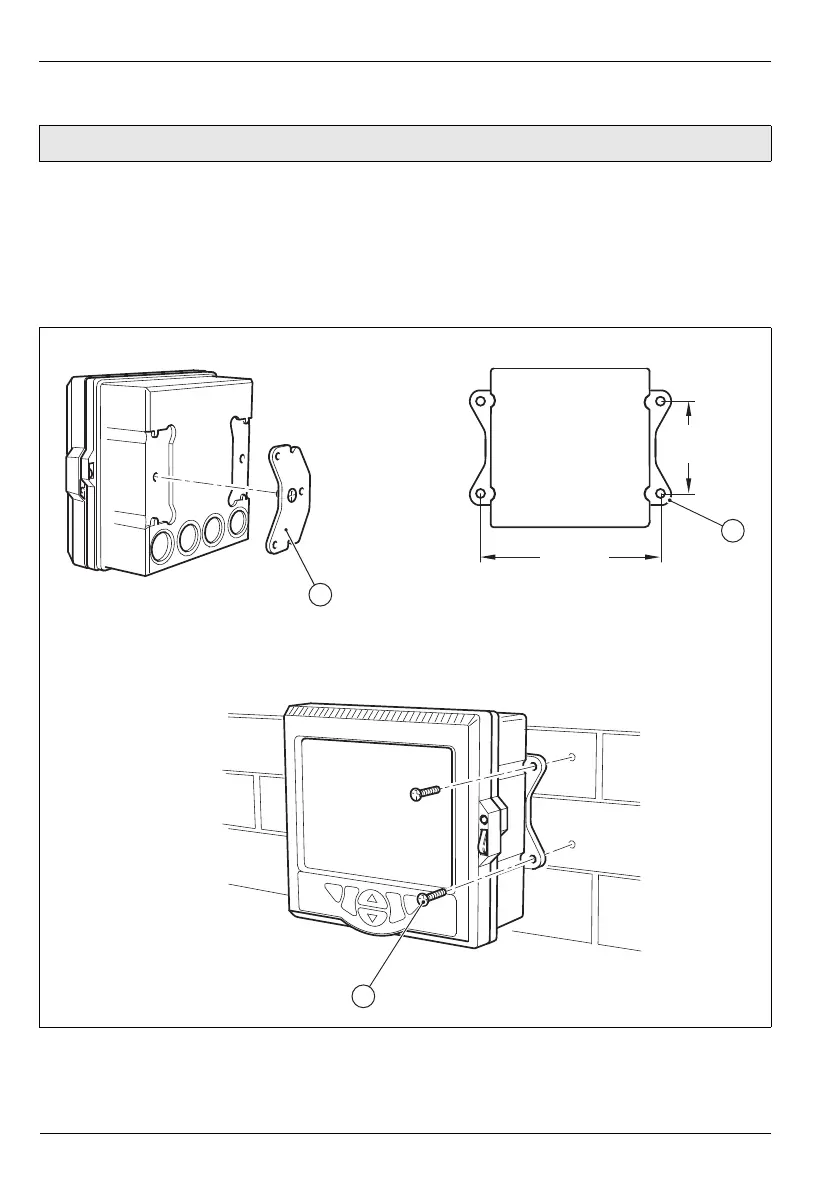

Fig. 2.5 Installing the Recorder – Wall-Mounting
1
Left-hand bracket only shown.
Right-hand bracket omitted for clarity
3
152 (5.98)
62
(2.44)
2
