SM500F
Field mountable paperless recorder Appendix F – Batch Recording
180 IM/SM500F Rev. Z

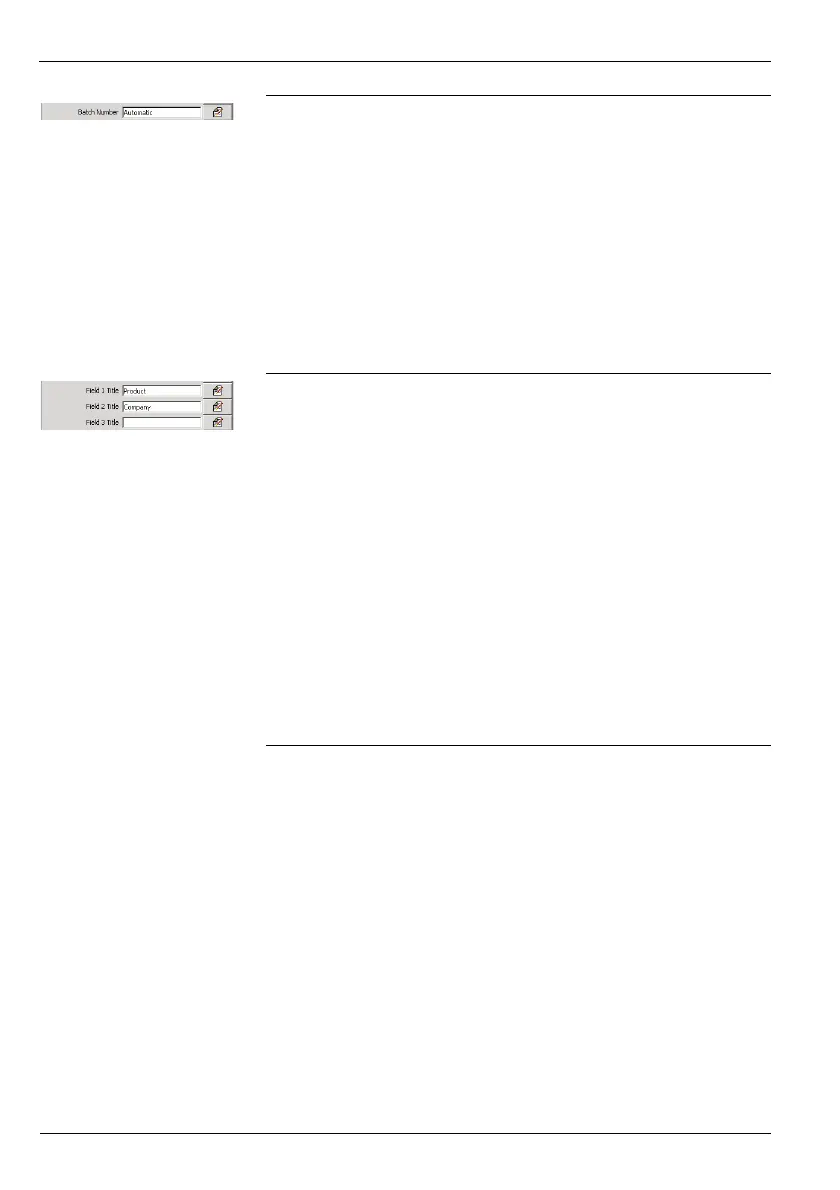

Select the required batch numbering system:
Automatic – the batch number increments automatically when a
new batch is started, up to a maximum batch
number of 9,999,999,999
Off – a batch number is not assigned automatically but
may be entered manually by the operator
Text – enables the operator to identify the batch with a text
string (max. 10 characters)
Note. If set to 'Automatic' or 'Off', this parameter enables the operator to
enter a batch number when starting a batch from the operator menu –
see Section F.3.2, page 174.
Enter up to 3 identifying labels for the batch, maximum 20 characters per
field.
Note.
Configured fields are shown on the 'New Batch' dialog box that is
displayed when the operator starts a batch from the operator
menu. This enables the operator to enter further details to identify
the batch both on the recorder and when analyzing the archived
data using DataManager.
It is important to configure Field 1 because it is used, together with
the batch number, to identify a batch:
– on chart annotations
– in the alarm event log
– during historical review
– in the DataManager display/search functions
Exit and save the configuration.
