SM500F
Field mountable paperless recorder 7 Configuration
88 IM/SM500F Rev. Z

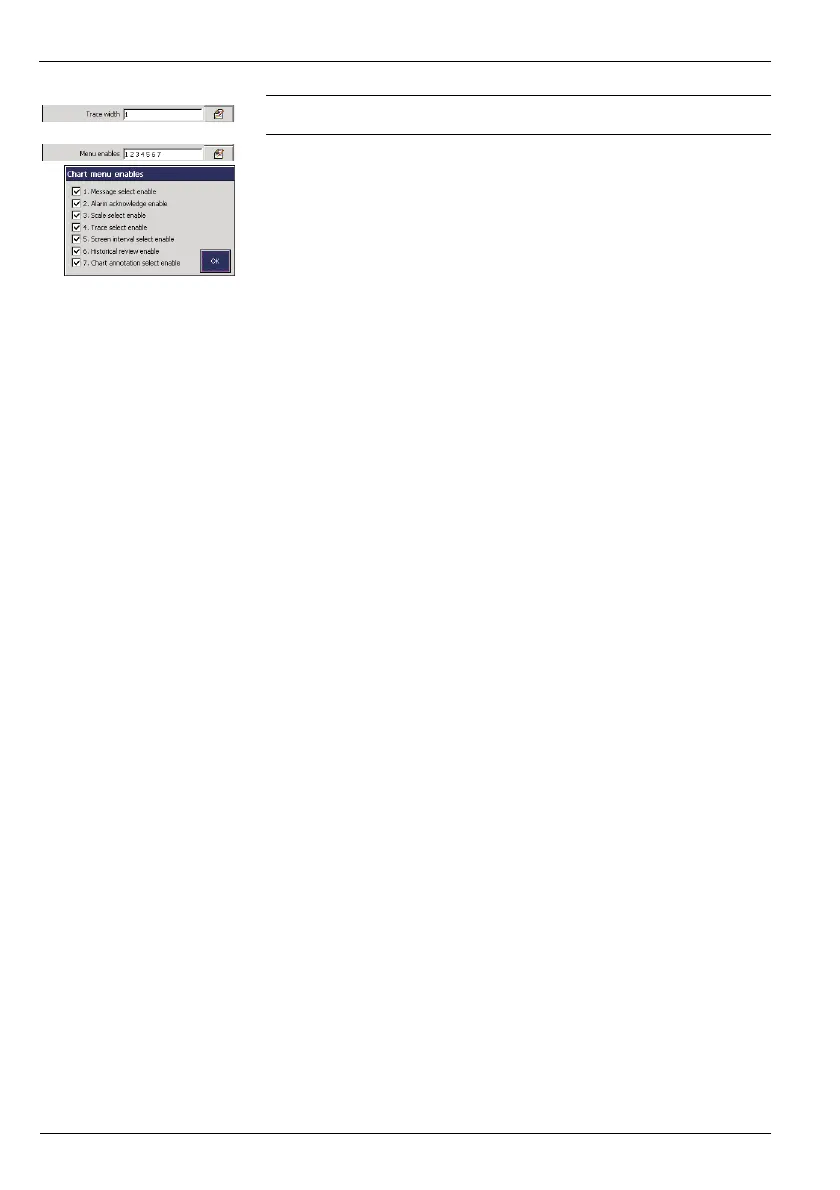

Select the required trace width in pixels.
Select the menu items to be accessible from the Chart view.
Message select enable
Enables the operator to activate one of 24 pre-configured messages or a
user-defined message.
Alarm acknowledge enable
Enables the Operator to acknowledge any alarms associated with the
current group.
Scale select enable
Enables the operator to display the scale for one enabled channel, or all
channels in turn, on the scale bar at the top of the screen.
Trace select enable
Enables individual chart traces to be displayed or hidden.
Screen interval select enable
Enables the Operator to change the amount of data displayed on the
screen at one time.
Historical review enable
Enables the Operator to scroll back through data recorded previously that
is no longer visible on screen.
Chart annotation select enable
Enables the display of Alarm events and Operator messages on the chart
to be enabled or disabled by the operator.
Note. Menu items that are not enabled are greyed-out (color recorders) or
blanked out when selected (monochrome recorders) in the relevant Chart
view menu.
