ABB TB82PH - INTRODUCTION; Product Identification

ABB TB82PH ATEX Product Instruction Manual
TB82PH-ATEX-EN-A 3
INTRODUCTION
This manual describes the installation, safe usage,
commissioning, adjustment, and maintenance procedures
related to the Analog versions of the TB82PH and
ML82PH pH/ORP/pION Product Family.
PRODUCT IDENTIFICATION

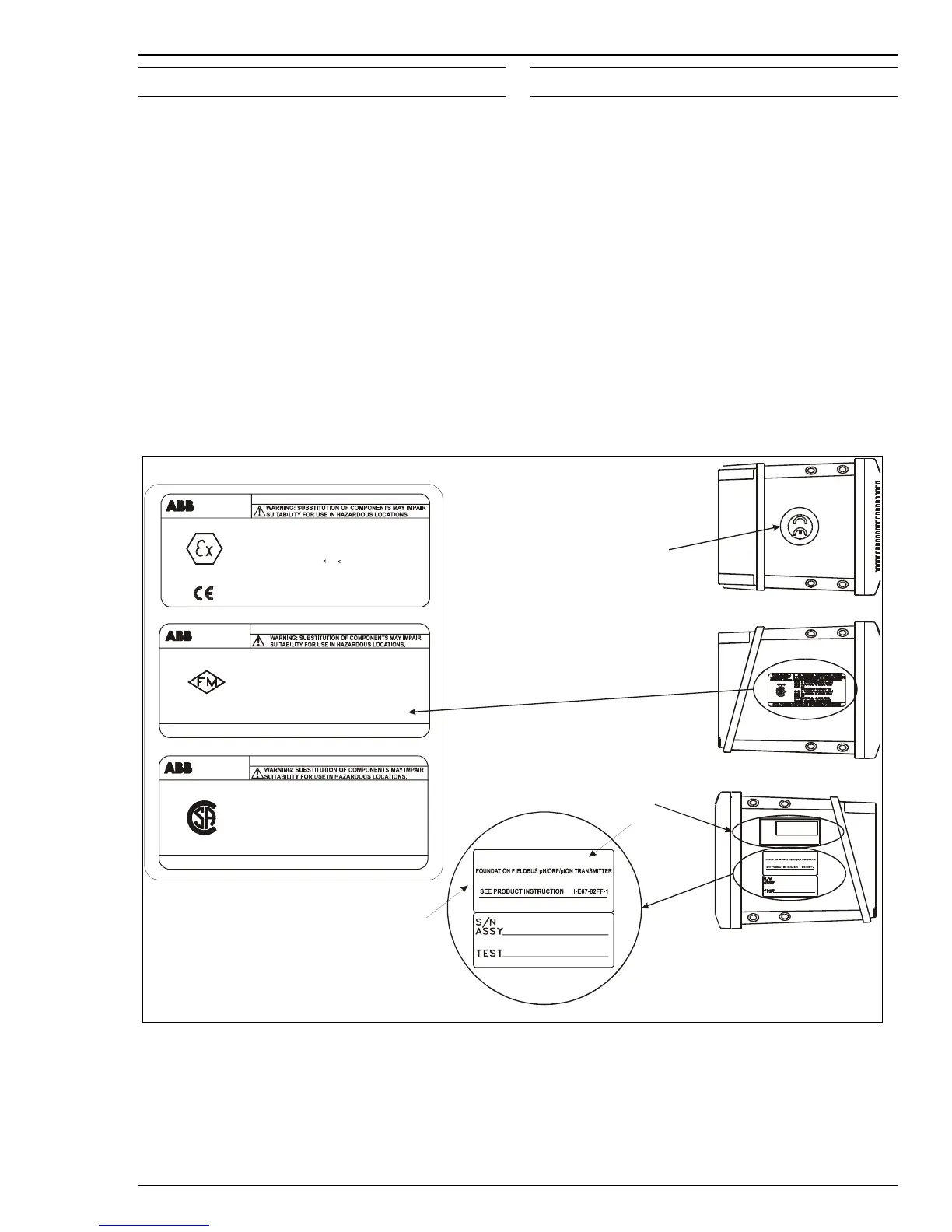

The data plates shown in Figure 1 identify the instrument.
The Nameplate (Reference A) provides information
concerning the product identity code (i.e., nomenclature),
product name, operating voltage range, output type, serial
number, test personnel badge number, and dielectric
strength verification stamp.
The Agency Approval label (Reference B) is included
when the transmitter is purchased for compliance with
hazardous area regulations (e.g., intrinsic safety
protection) for a specific country (e.g., CSA, FM, or
ATEX).
EC conformance is identified using a CE label (Reference
C). Optional tagging, as specified by customer
requirements, is provided via an additional tag. (Reference
D)
OUTPUT TO SENSOR IS SUITABLE FOR NONINCENDIVE FIELD WIRING FOR
CLASS I LOCATIONS WHEN USED WITH ABB SENSORS PER DRAWING P0806
CLASS I; DIVISION 2; GROUPS A, B, C, D
CLASS II; DIVISION 2; GROUPS E, F, G
CLASS III
INTRINSICALLY SAFE Exia T4
CLASS I; DIVISION 1; GROUPS A, B, C, D
CLASS II; DIVISION 1; GROUPS E, F, G
CLASS III
WHEN CONNECTED PER DRAWING P0806
Vmax=24V Imax=250mA Ci=0 Li=0mH
82 TWO-WIRE TRANSMITTER SERIES
2175 LOCKHEED WAY
CARSON CITY,
NEVADA 89706
TYPE 4X
2175 LOCKHEED WAY
CARSON CITY,
NEVADA 89706
82 TWO-WIRE TRANSMITTER SERIES
NONINCENDIVE T5
CLASS I; DIVISION 2; GROUPS A, B, C, D
CLASS II; DIVISION 2; GROUPS F, G
CLASS III
INTRINSICALLY SAFE T4
CLASS I; DIVISION 1; GROUPS A, B, C, D
CLASS II; DIVISION 1; GROUPS E, F, G
CLASS III
WHEN CONNECTED PER DRAWING P0807
Vmax=24V Imax=250mA Ci=0 Li=0mH
MAX. AMBIENT TEMPERATURE: 60 C
OUTPUT TO SENSORS IS SUITABLE FOR NONINCENDIVE FIELD
WIRING WHEN USED WITH ABB SENSORS PER DRAWING P0807
NEMA 4X
APPROVED
INTRINSICALLY SAFE EEx ia IIC T4
- 20 C Ta 60 C
Ui=24V Ii=250mA Ci=0 Li=0mH Pi=1.2W
82 TWO-WIRE TRANSMITTER SERIES
2175 LOCKHEED WAY
CARSON CITY,
NEVADA 89706
CENEL EC
LCIE 02 ATEX 6 115 X
Reference A
Reference D - Optional Tag
Reference B
Reference C - EC Conformance Label
TB82PHX2XXXXX
9 - 32 Vdc, Profile Type 113
Carson City, NV U.S.A Phone 775-883-4366
Product Nomenclature
‘X’ Si
g
nif
y
Product Options
TB82PHX2XXXXX
9 - 32 V dc, Profile Type 113
Carson City, NV U.S.A Phone 775-883-4366
TAG
Carson City, NV.
II 1G
0344
Product Nameplate is for Foundation Fieldbus
Product Variation and is only shown for
reference purposes.
Figure 1 – Product Identification
