Operation Manual / TPS48-D/E.. - TPS61-D/E..
Disassembly and assembly
8
Disassembling and assemb
ling
turbocharger
8.3
Page 106
© Copyright 2016 ABB. All rights reserved.
September 2016 HZTL2410_EN Revision E

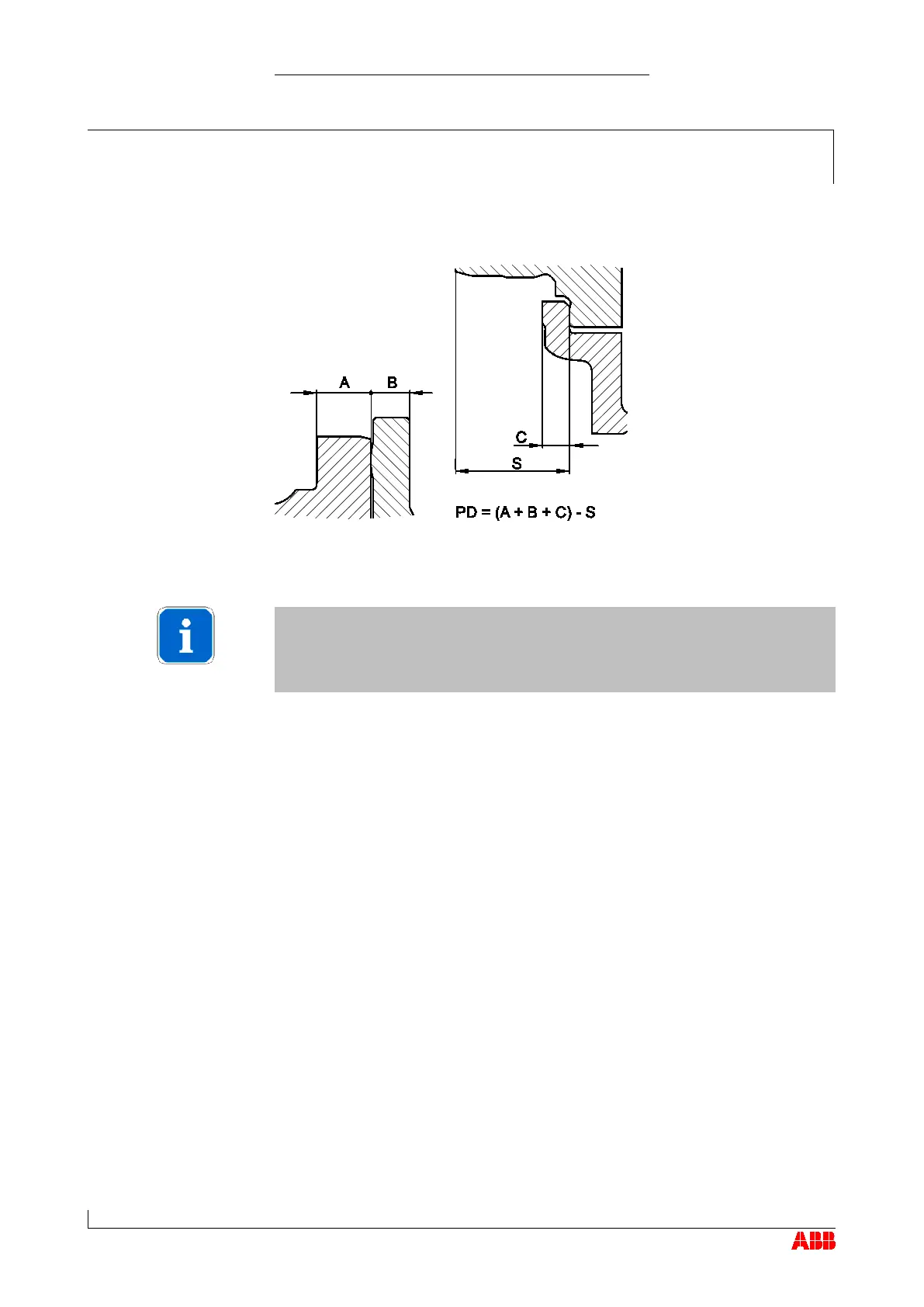

Calculate the press fit (PD) as shown.
NOTICE
If the calculated value (PD) is outside ±0.2 mm, an official ABB Turbo-
charging Service Station must be contacted.
Measure the axial and radial clearances (see the section Axial and ra-
dial clearances).
Nozzle ring press fit for
multiple inlet turbine cas-
ing
