ABB TPS48 Series - Page 109

Operation Manual / TPS48-D/E.. - TPS61-D/E..
Disassembly and assembly
8
Disassembling and assembling
turbocharger
8.3
Page 107
© Copyright 2016 ABB. All rights reserved.
September 2016 HZTL2410_EN Revision E


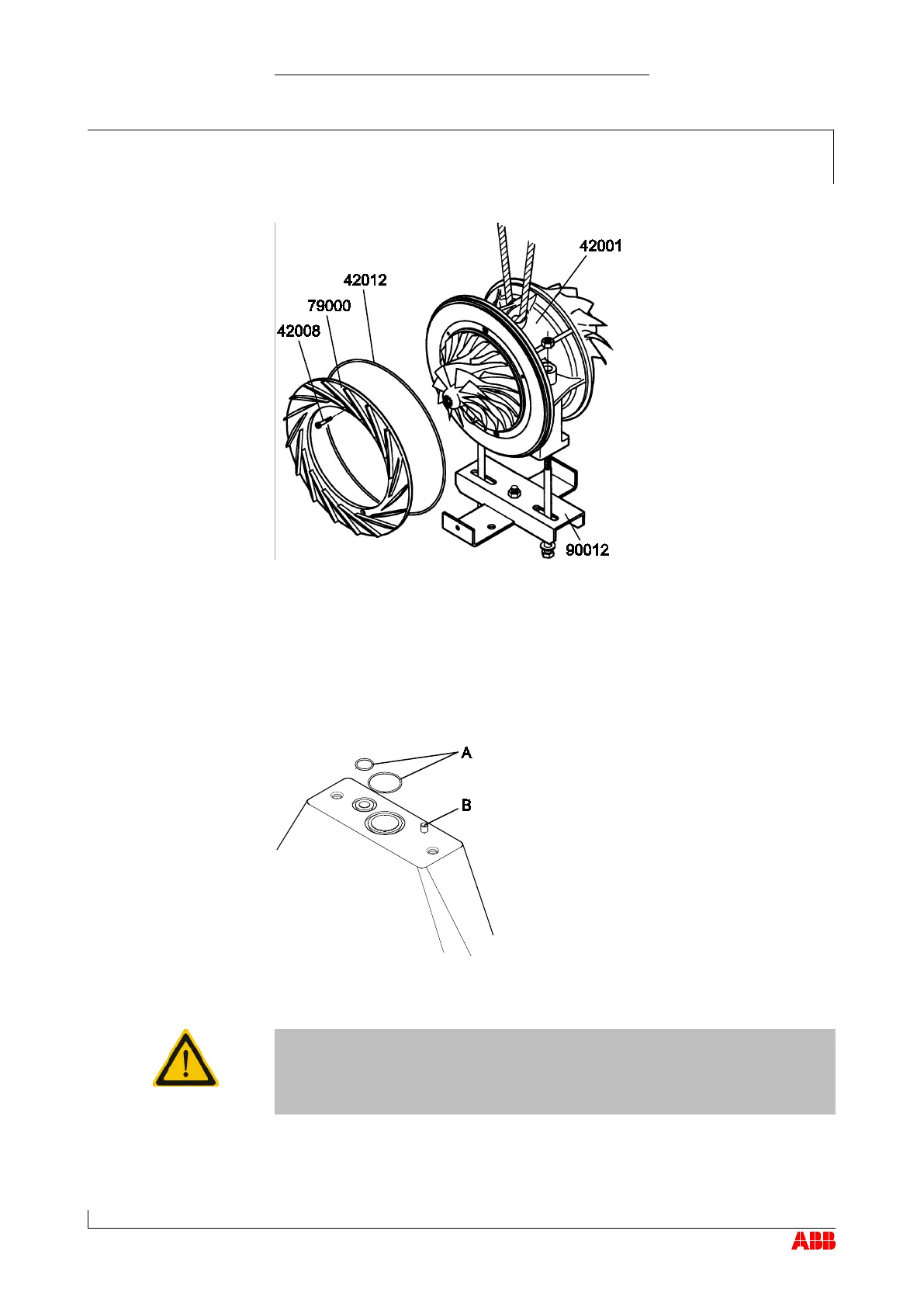

Fasten diffuser (79000) and O-ring (42012) using screw (42008).
 Check lifting gear and fasten to bearing casing (42001).
 Unscrew the cartridge group and lift it out of the service support
(90012).
 Apply high-temperature grease to the centering points and screw
threads.

Remove temporary covers from oil connections.
CAUTION
Don't damage or shift gasket rings (A) in the mounting support when
fitting the cartridge group. The gasket rings (A) are supplied by the en-
gine builder.
Fitting diffuser
