Operation Manual / TPS48-D/E.. - TPS61-D/E..
Cleaning components mechanically
Page 68
© Copyright 2016 ABB. All rights reserved.
September 2016 HZTL2410_EN Revision E

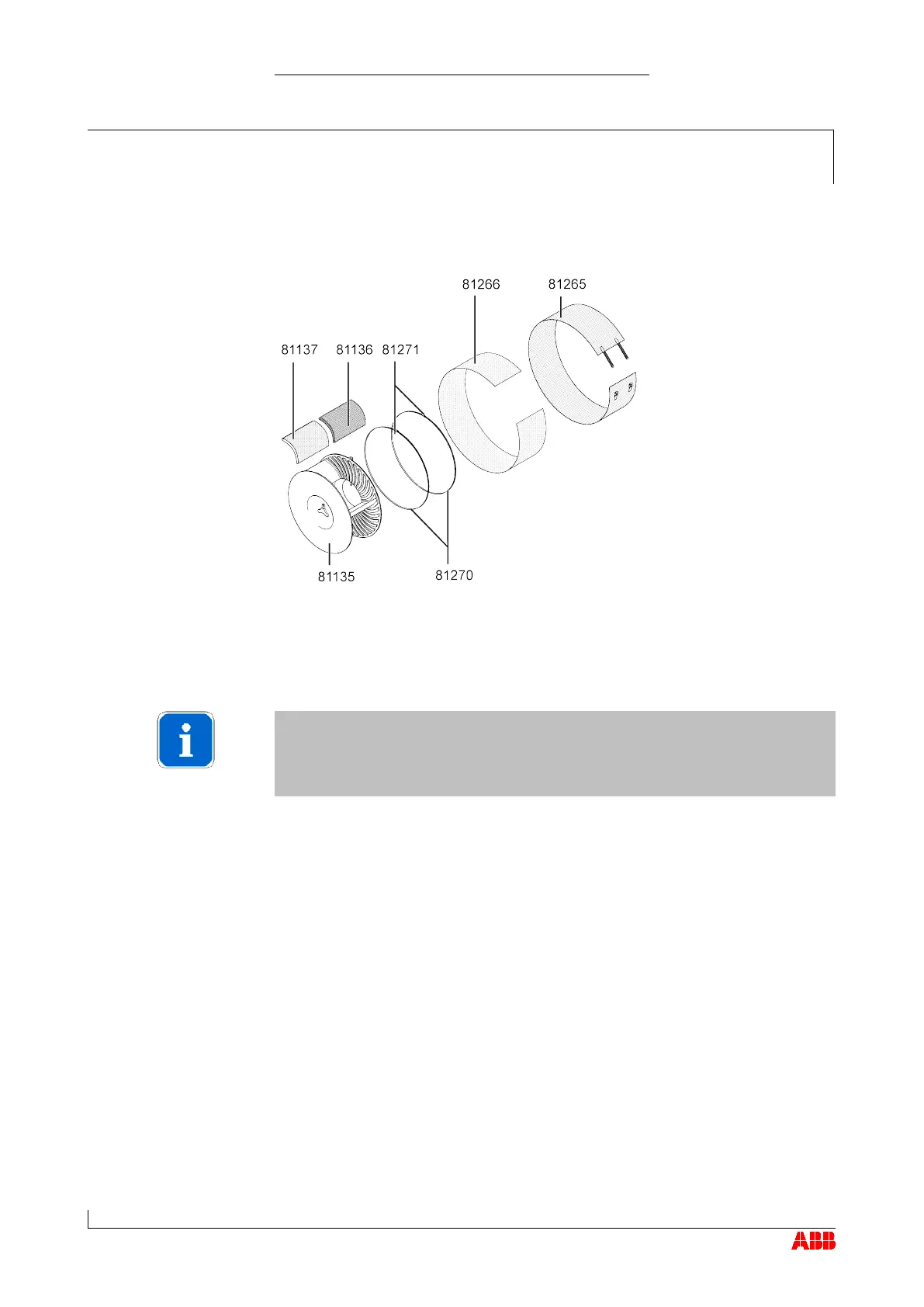

Cleaning the filter silencer
81135
Filter silencer body 81266
Cover grid
81136
Absorption segment 81270
Tension band
81137
Sheet-metal covering 81271
Lock
81265
Filter ring
The procedure for disassembly and assembly of the filter silencer is de-
scribed in the chapter entitled Disassembly and Assembly.
Cleaning the filter ring (if provided)
Remove filter ring (81265).
Clean filter ring (81265) as required or every 500 operating hours, and
replace after the fifth cleaning operation at the latest.
The degree of contamination of the filter ring depends on the cleanli-
ness of the air that is drawn in.
Wash filter ring (81265) using water containing light-duty detergent or,
if very heavily contaminated, soak it while squeezing carefully. Rinse
in cold water. Avoid rough handling (do not use a water jet).
Allow the filter ring to dry out completely before assembly.
Dispose of dirty water and gentle detergents in accordance with valid
local regulations.
