TruONE® ATS, INSTALLATION AND OPERATING INSTRUCTION
1
TOUCH
4.2.1.4 Measures
TruONE ATS
Overviews
Main Menu Measures
Analog Meters
11:06
G
Voltages (S1)
U1 0.0 V
U2 0.0 V
U3 0.0 V
U0 0.0 V
U12 0.0 V
U23 0.0 V
U31 0.0 V
TruONE ATS
—

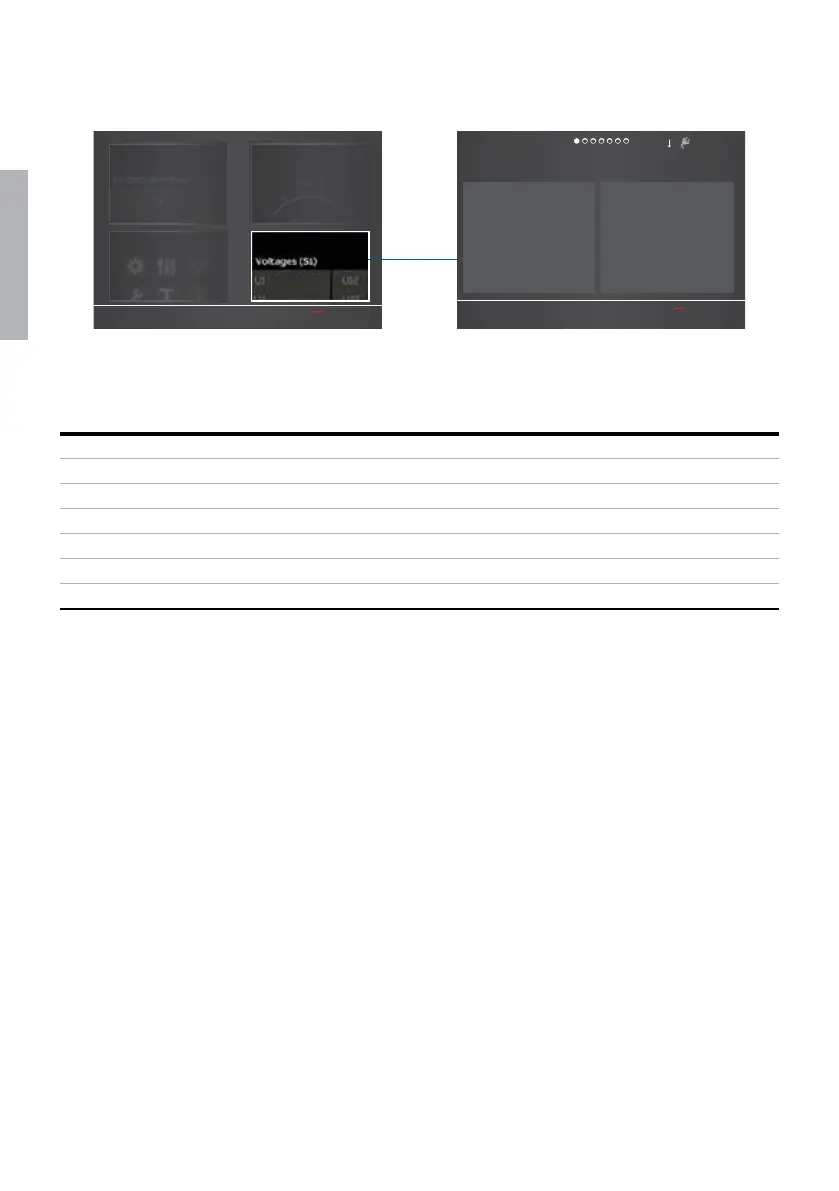

Fig. 4.17 By touching on Start Menu lower
right corner -image you can find the
measured data, see the table below
Voltages (S1)
Voltages (S2)
Current
Active power
Reactive power
Apparent power
Energy counters
