Spare parts
TCP gauging (BullsEye
®
) 3HDA000057A8519-001 4-13
Assembly instructions
Replacement of the sensor

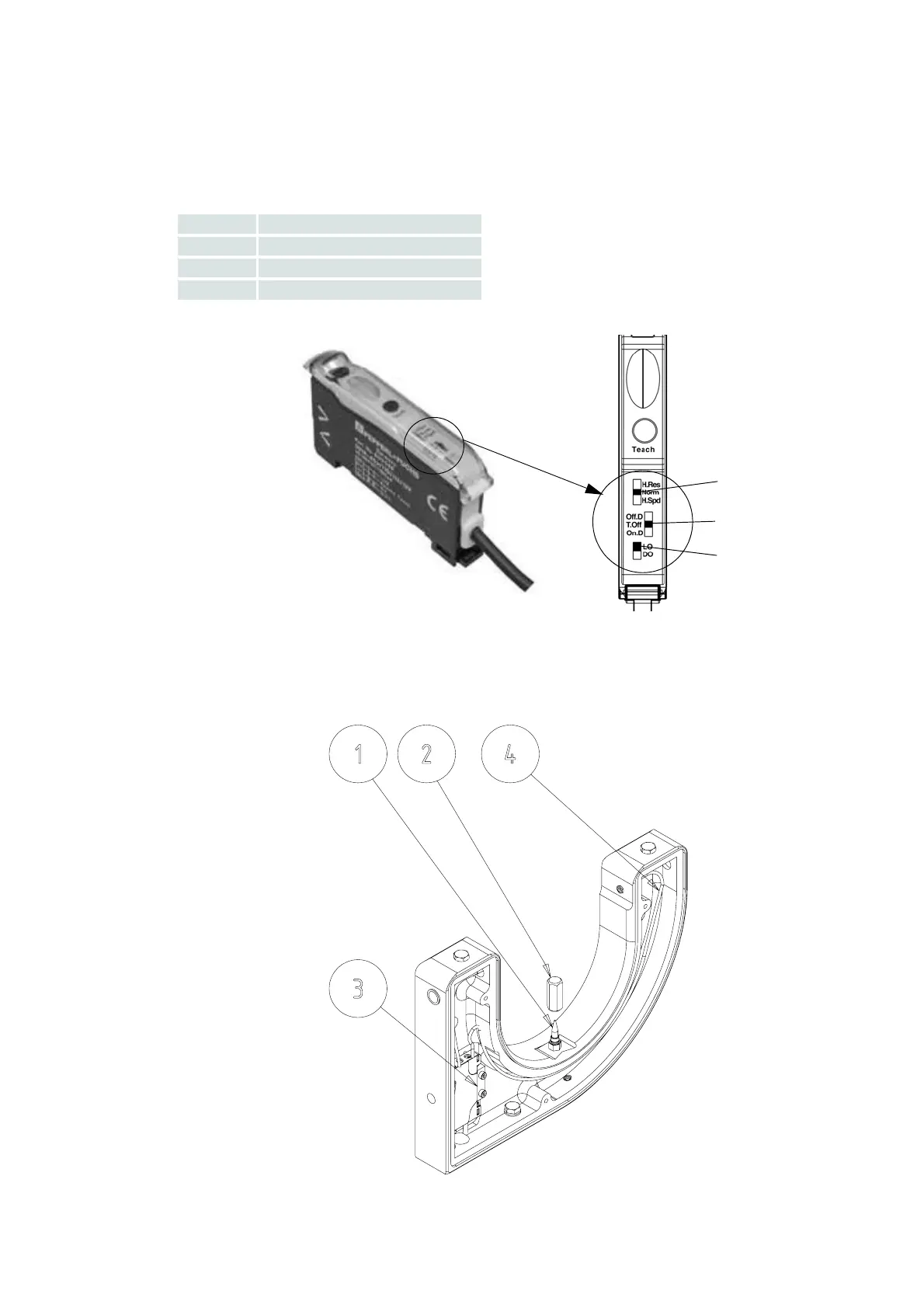

If the fibre-optic sensor of TCP gauging is to be replaced due to a defect, it should be ensured that
the 3 switches on the senor are in the illustrated position.
4.11 Spare parts
Pos. Switch position
1 Standard
2 T.Off
3 LO
1
2
3
