18 CI/FSV/FSS/430/450-EN Rev. G | VortexMaster FSV430, FSV450 SwirlMaster FSS430, FSS450
3 Product identification
3.1 Name plate
G11749
VortexMaster
AAAAAAAAAAAAAAAAAAAAAAAAA
BBBBBBBBBBBBBBBBBBBBBBBB
CCCCCCCCCCCCCCCCCCCCCCC
DDDDDDDDDDDDDDDDDDDDDDDD
EEEEEEEEEEEEEEEEEEEEEEEE
Designed by: A BB Engineering(Shanghai) Ltd.
II2/1GExdiaIICT6Gb/Ga-
II 2 D E x tb IIIC T85°C
FM13ATE X0057X-IECEx FME 13.0004X
(-40°C < Ta<+75°C) POWER SUPPLY 42 Vdc, Um : 45V
II 3 G Ex nA IIC T4...T6 Gc
II 3 D E x tc IIIC T85°C
for electrical parameters see cert,
FM13ATE X0056X, IECEx FME 13.0004X
II 1 G Ex ia IIC T4...T6 Ga
II 1 D Ex ia IIIC T8 C
for electrical parameters see cert,
FM13ATE X0055X, IECEx FME 13.0004X
WARNING - DO NOT REMOVE OR REPLACE FUSE WHEN ENERGIZED
Tag Number:
VortexMaster
Serial Number:
Model Number:
Manufactured by:
Power Supply: Firmware:
PN:
IP:
DN:
Iout:
QmaxDN:
Tmedium: Tamb.:
Year/Month
Made in xxxx
A
B
C
A
B
C
D
1
2
3
7
8
9
10
11
4
6
12
13
14
15
16
17
18
SEP / Fluid 1
5

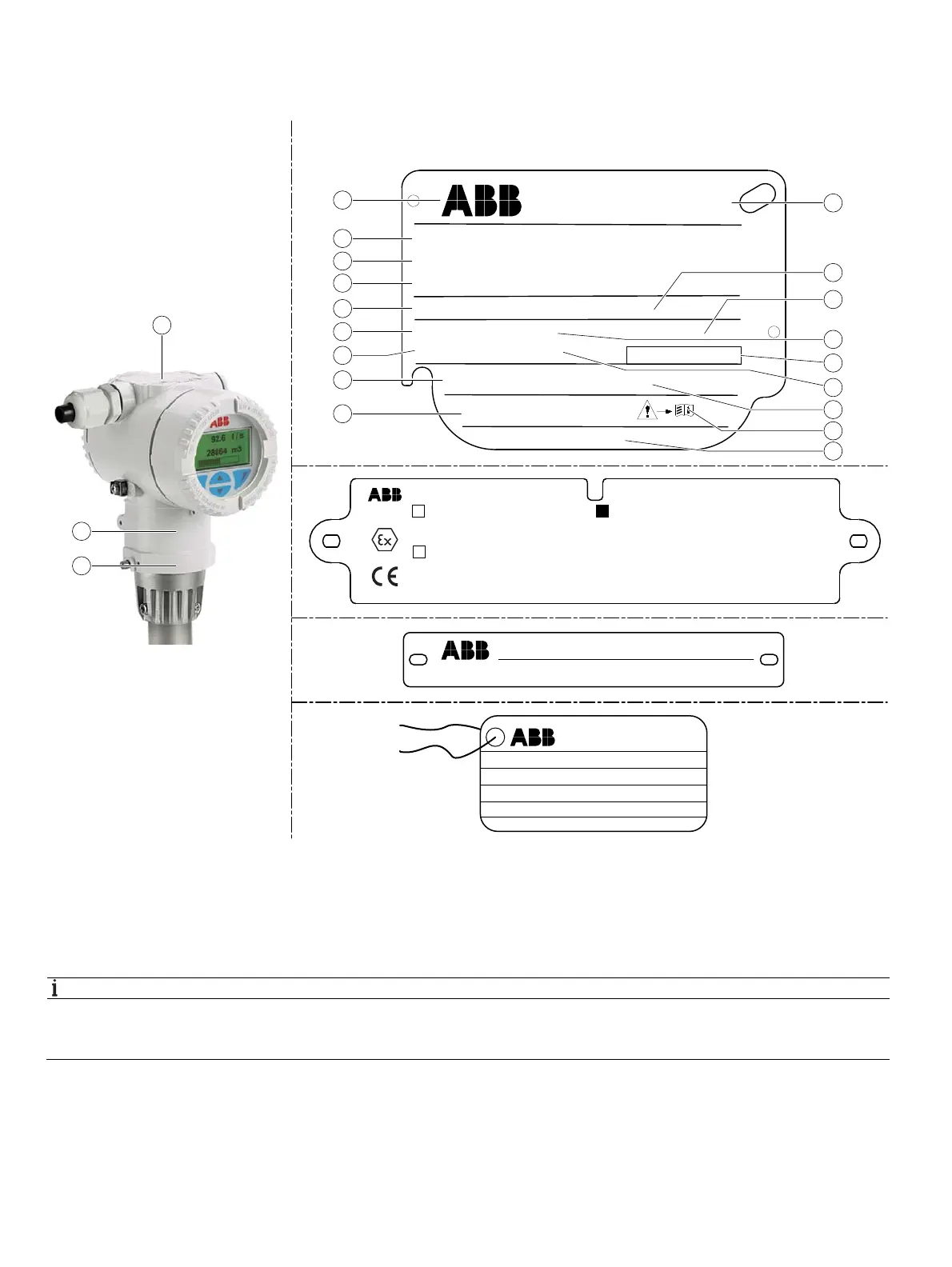

Fig. 5: Types and tag plates (example)
A Name plate B Supplementary plate with Ex marking C Plate with measuring point tagging (tag number) D Tag plates with customer
data made of stainless steel (optional)
1 Product name 2 Firmware version 3 Maximum flow at nominal diameter 4 Nominal diameter 5 Classification of the pressure
equipment (SEP or fluid group) 6 Current output 7 Maximum ambient temperature 8 Symbol: Read instructions before operating
9 Manufacturing country j Date of manufacture k Maximum measuring medium temperature lIP rating m Pressure rating n Power
supply o Manufacturer's address p Model number qSerial number r Manufacturer logo
NOTICE
The device can optionally be delivered with a tag plate D made from stainless steel and fastened with wire. Customer specific
text that has been specified in the purchase order is laser printed on the tag plate.
For this, 4 lines of 32 characters each are provided.
