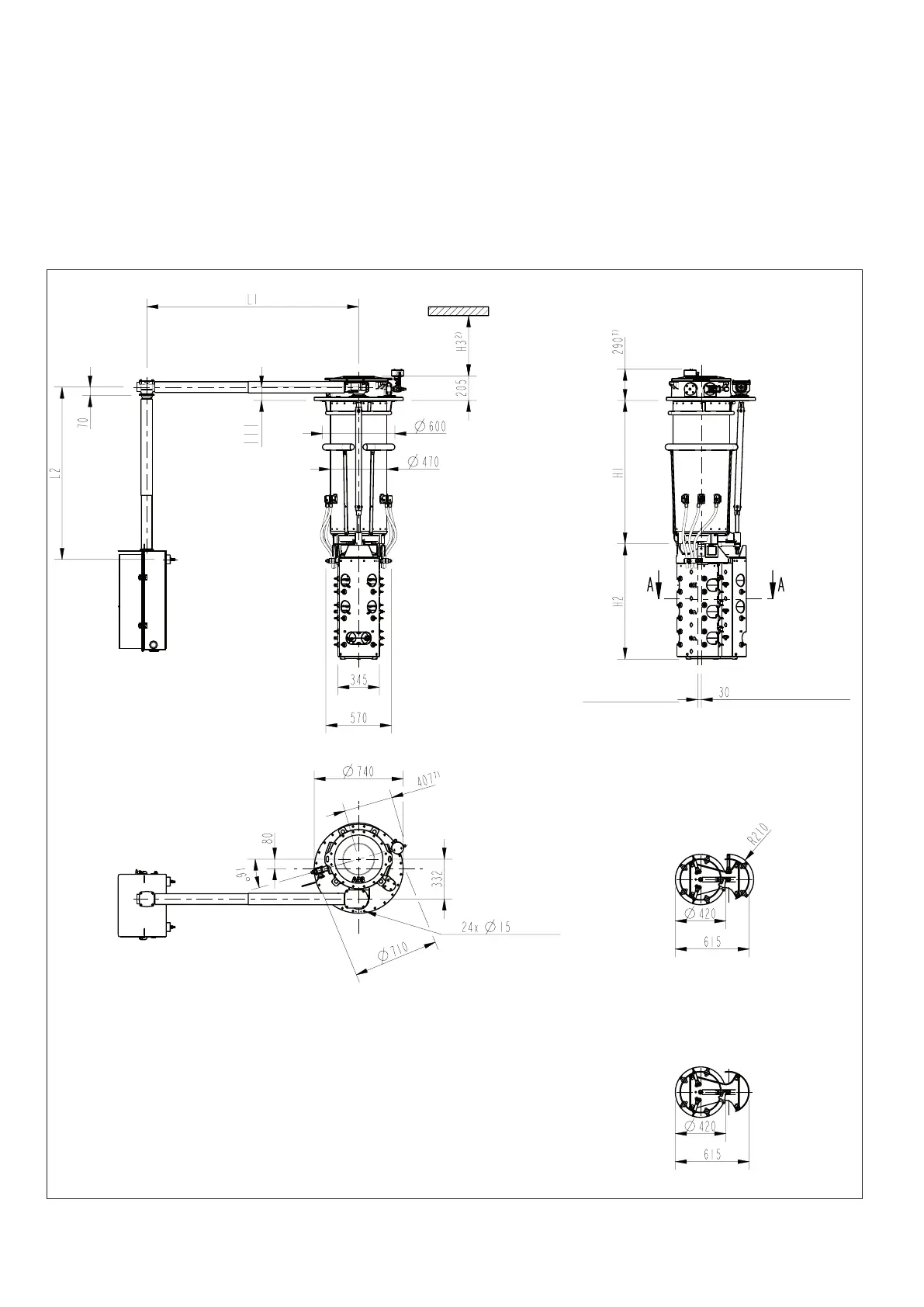

Fig. 50. Dimensions, type VUCG.E and VUCG.N with tap selector type C and cover mounting.
C/L Tap selector C/L Diverter switch
Section A – A
Plus/Minus and
Coarse/Fine
switching
Section A – A
Linear switching
Type VUCG.E and VUCG.N with tap selector type C and cover mounting
